| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57541cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57541cztM0_level2_quad_clean.evt |
| Size (bytes) | 384,252,480 | 91,670,400 |
| Size | 366.5 MB | 87.4 MB |
| Events in quadrant A | 3,063,283 | 597,107 |
| Events in quadrant B | 3,071,561 | 638,046 |
| Events in quadrant C | 3,777,011 | 566,251 |
| Events in quadrant D | 3,821,179 | 534,628 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13779 | 1 |
| B | 0 | 13532 | 1 |
| C | 0 | 15881 | 1 |
| D | 0 | 15848 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6304 | 100 | 1.586294% |
| B | 6304 | 104 | 1.649746% |
| C | 6305 | 218 | 3.457573% |
| D | 6305 | 237 | 3.758921% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7084 | 6305 | 18 | 18 | 0.25% | 0.29% |  |
| B | 7084 | 6304 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7085 | 6305 | 153 | 153 | 2.16% | 2.43% |  |
| D | 7085 | 6306 | 166 | 166 | 2.34% | 2.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 241894 | 1439.87 | 682 | 664 | 167.5 |
| A | 4 | 249 | 155439 | 923.83 | 682 | 664 | 167.5 |
| A | 13 | 248 | 15886 | 90.86 | 682 | 664 | 167.5 |
| B | 4 | 206 | 152615 | 1065.05 | 666 | 643 | 142.7 |
| B | 7 | 252 | 59357 | 411.48 | 666 | 643 | 142.7 |
| B | 5 | 185 | 58407 | 404.82 | 666 | 643 | 142.7 |
| C | 15 | 224 | 1121083 | 6385.42 | 647 | 642 | 175.5 |
| C | 13 | 3 | 30126 | 168.03 | 647 | 642 | 175.5 |
| C | 6 | 223 | 27302 | 151.94 | 647 | 642 | 175.5 |
| D | 15 | 201 | 319200 | 1719.26 | 654 | 623 | 185.3 |
| D | 15 | 94 | 247683 | 1333.3 | 654 | 623 | 185.3 |
| D | 12 | 128 | 149055 | 801.04 | 654 | 623 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

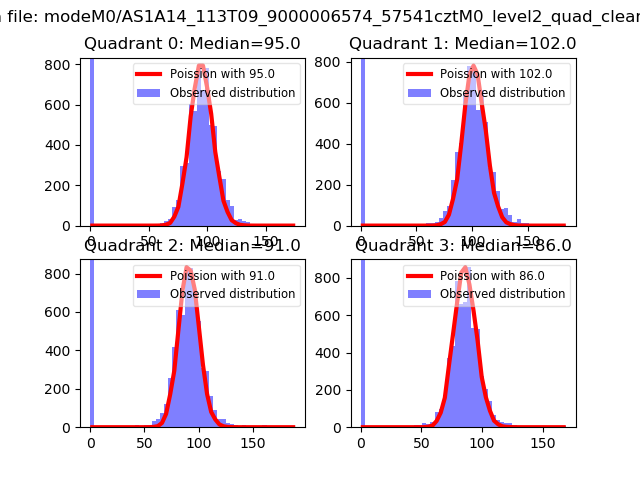

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

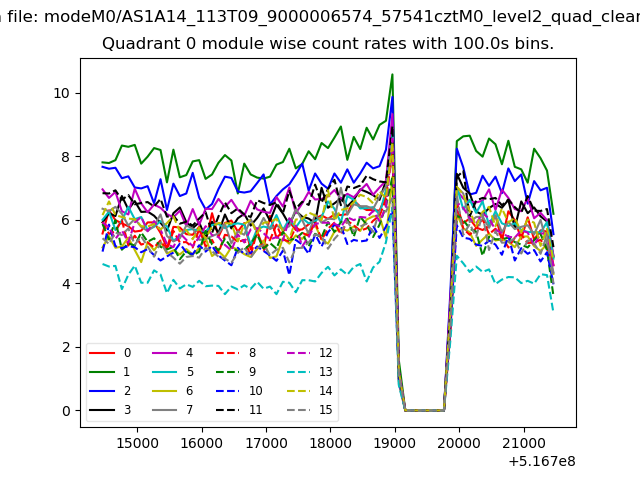

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
