| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57552cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57552cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,121,280 | 84,769,920 |
| Size | 458.8 MB | 80.8 MB |
| Events in quadrant A | 3,396,617 | 584,354 |
| Events in quadrant B | 2,972,010 | 625,533 |
| Events in quadrant C | 3,169,317 | 560,129 |
| Events in quadrant D | 7,818,763 | 389,706 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13903 | 1 |
| B | 0 | 12770 | 1 |
| C | 0 | 13540 | 1 |
| D | 0 | 27207 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5826 | 75 | 1.287333% |
| B | 5826 | 105 | 1.802266% |
| C | 5827 | 101 | 1.733310% |
| D | 5826 | 1721 | 29.539993% |

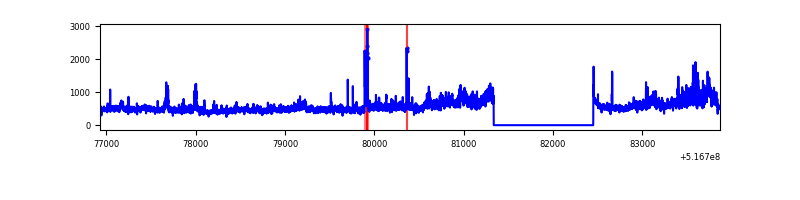

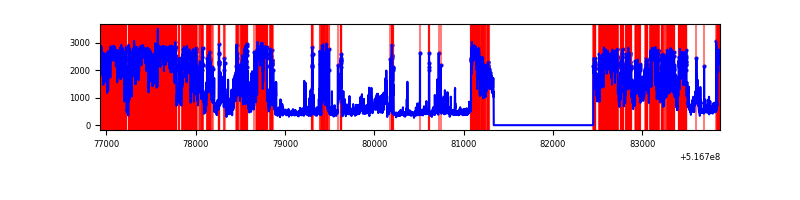

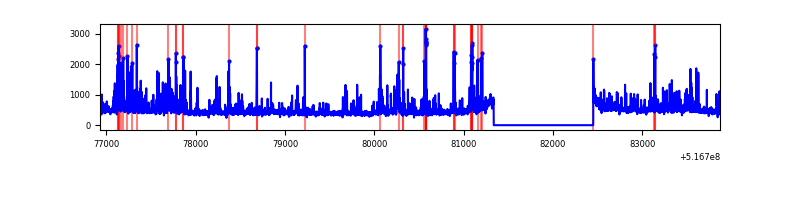

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6941 | 5826 | 9 | 9 | 0.13% | 0.15% |  |
| B | 6941 | 5826 | 32 | 32 | 0.46% | 0.55% |  |
| C | 6942 | 5827 | 46 | 46 | 0.66% | 0.79% |  |
| D | 6940 | 5825 | 1697 | 1697 | 24.45% | 29.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 804527 | 5025.95 | 648 | 631 | 159.9 |
| A | 8 | 249 | 45502 | 280.53 | 648 | 631 | 159.9 |
| A | 4 | 249 | 23417 | 142.46 | 648 | 631 | 159.9 |
| B | 4 | 142 | 104588 | 780.49 | 633 | 610 | 133.2 |
| B | 4 | 206 | 84849 | 632.32 | 633 | 610 | 133.2 |
| B | 5 | 185 | 71541 | 532.43 | 633 | 610 | 133.2 |
| C | 15 | 224 | 585319 | 3428.24 | 630 | 625 | 170.6 |
| C | 6 | 223 | 26016 | 148.88 | 630 | 625 | 170.6 |
| C | 14 | 67 | 17726 | 100.27 | 630 | 625 | 170.6 |
| D | 15 | 142 | 4602035 | 29041.15 | 558 | 534 | 158.4 |
| D | 8 | 160 | 399762 | 2519.62 | 558 | 534 | 158.4 |
| D | 3 | 12 | 201426 | 1267.88 | 558 | 534 | 158.4 |

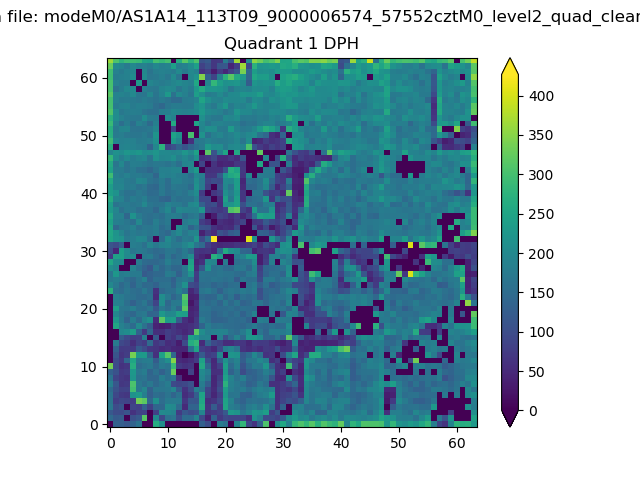

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

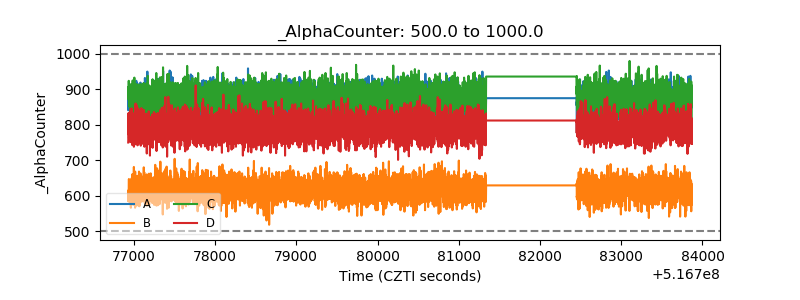

| Alpha Counter |  |
| _CPM_Rate |  |

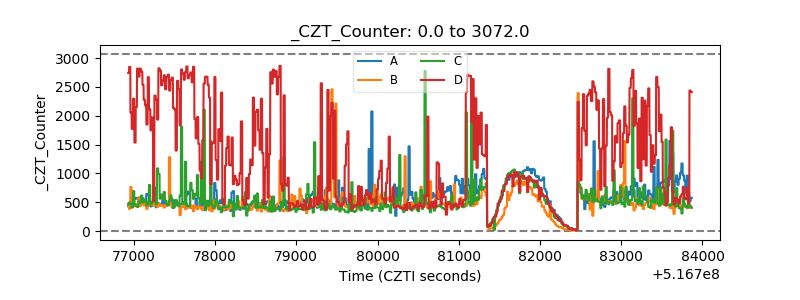

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

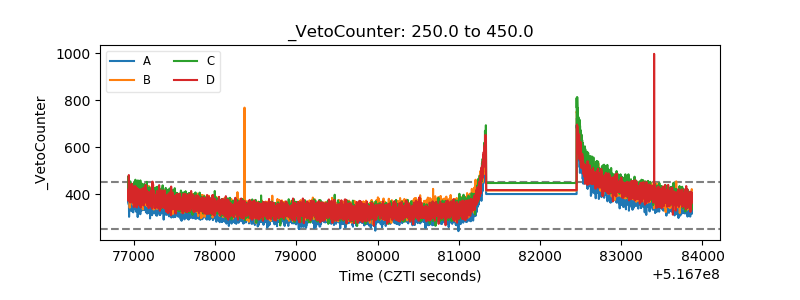

| Veto Counter |  |
