| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_113T09_9000006574_57553cztM0_level2.fits | modeM0/AS1A14_113T09_9000006574_57553cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,986,560 | 92,131,200 |
| Size | 440.6 MB | 87.9 MB |
| Events in quadrant A | 4,623,506 | 606,909 |
| Events in quadrant B | 3,193,726 | 658,593 |
| Events in quadrant C | 3,367,561 | 587,106 |
| Events in quadrant D | 5,443,040 | 511,532 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17976 | 1 |
| B | 0 | 13664 | 1 |
| C | 0 | 14259 | 1 |
| D | 0 | 20532 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6095 | 182 | 2.986054% |
| B | 6096 | 134 | 2.198163% |
| C | 6096 | 142 | 2.329396% |
| D | 6096 | 631 | 10.351050% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7240 | 6095 | 94 | 94 | 1.30% | 1.54% |  |
| B | 7241 | 6096 | 27 | 27 | 0.37% | 0.44% |  |
| C | 7241 | 6096 | 70 | 70 | 0.97% | 1.15% |  |
| D | 7241 | 6096 | 596 | 596 | 8.23% | 9.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1987827 | 12036.21 | 676 | 659 | 165.1 |
| A | 4 | 3 | 12585 | 72.24 | 676 | 659 | 165.1 |
| A | 3 | 137 | 7705 | 42.68 | 676 | 659 | 165.1 |
| B | 5 | 185 | 241471 | 1701.62 | 667 | 643 | 141.5 |
| B | 4 | 206 | 71748 | 502.41 | 667 | 643 | 141.5 |
| B | 9 | 251 | 46668 | 325.2 | 667 | 643 | 141.5 |
| C | 15 | 224 | 582653 | 3237.31 | 663 | 656 | 179.8 |
| C | 12 | 254 | 62099 | 341.77 | 663 | 656 | 179.8 |
| C | 14 | 245 | 53605 | 294.52 | 663 | 656 | 179.8 |
| D | 15 | 142 | 2379545 | 13162.68 | 645 | 616 | 180.7 |
| D | 8 | 160 | 152446 | 840.08 | 645 | 616 | 180.7 |
| D | 2 | 249 | 96533 | 530.71 | 645 | 616 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

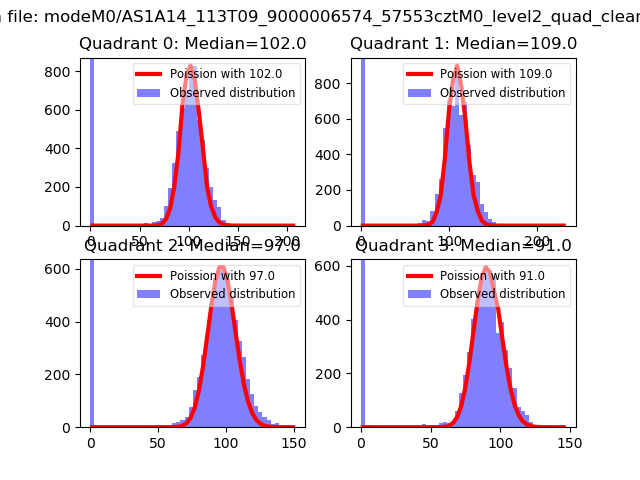

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
