| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006576_57571cztM0_level2.fits | modeM0/AS1A14_070T08_9000006576_57571cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,105,920 | 92,448,000 |
| Size | 456.0 MB | 88.2 MB |
| Events in quadrant A | 2,805,576 | 622,259 |
| Events in quadrant B | 3,355,477 | 661,472 |
| Events in quadrant C | 6,603,717 | 507,833 |
| Events in quadrant D | 4,421,676 | 549,525 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13431 | 2 |
| B | 0 | 14618 | 4 |
| C | 0 | 24342 | 2 |
| D | 0 | 17742 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6572 | 132 | 2.008521% |
| B | 6572 | 192 | 2.921485% |
| C | 6572 | 1251 | 19.035301% |
| D | 6572 | 338 | 5.143031% |

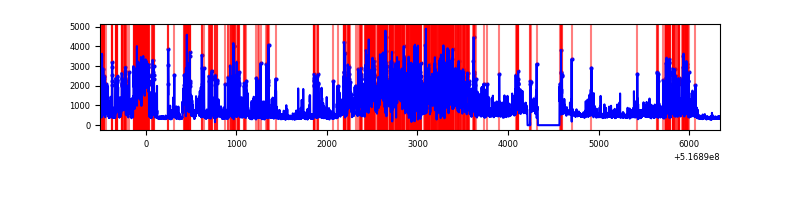

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6842 | 6574 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6842 | 6573 | 25 | 25 | 0.37% | 0.38% |  |
| C | 6842 | 6574 | 858 | 858 | 12.54% | 13.05% |  |
| D | 6842 | 6573 | 209 | 209 | 3.05% | 3.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 29273 | 164.98 | 709 | 690 | 173.2 |
| A | 10 | 251 | 12632 | 68.93 | 709 | 690 | 173.2 |
| A | 3 | 137 | 8594 | 45.62 | 709 | 690 | 173.2 |
| B | 10 | 247 | 156810 | 1054.83 | 696 | 671 | 148.0 |
| B | 8 | 128 | 117198 | 787.23 | 696 | 671 | 148.0 |
| B | 5 | 185 | 89033 | 596.95 | 696 | 671 | 148.0 |
| C | 15 | 224 | 1417842 | 8290.26 | 629 | 622 | 170.9 |
| C | 14 | 254 | 1213945 | 7097.53 | 629 | 622 | 170.9 |
| C | 12 | 254 | 864443 | 5053.06 | 629 | 622 | 170.9 |
| D | 8 | 160 | 637565 | 3310.46 | 677 | 646 | 192.4 |
| D | 7 | 253 | 220361 | 1141.99 | 677 | 646 | 192.4 |
| D | 2 | 249 | 211974 | 1098.4 | 677 | 646 | 192.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

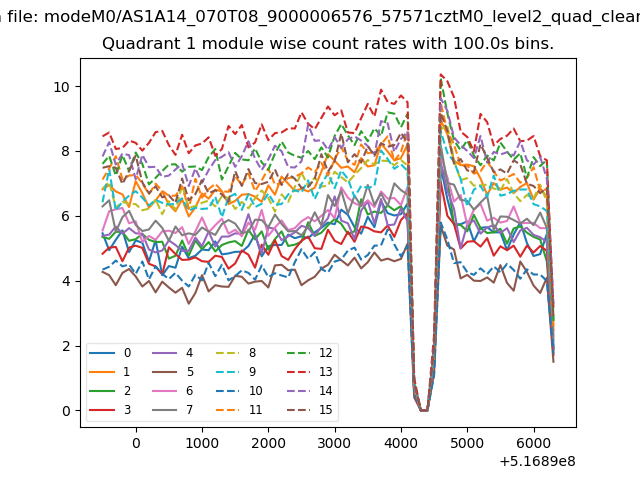

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

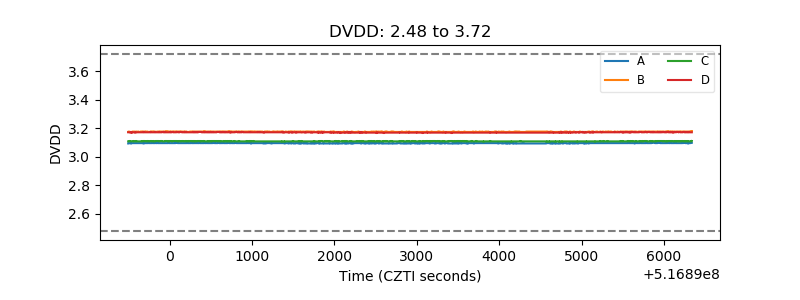

| D_VDD |  |

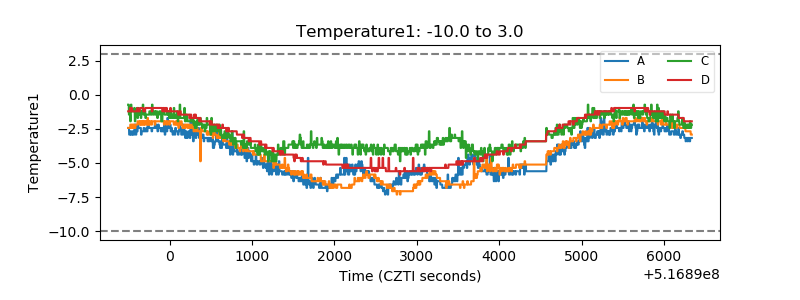

| Temperature 1 |  |

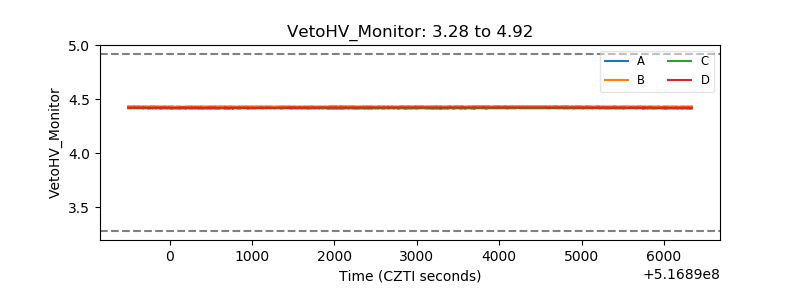

| Veto HV Monitor |  |
| Veto LLD |  |

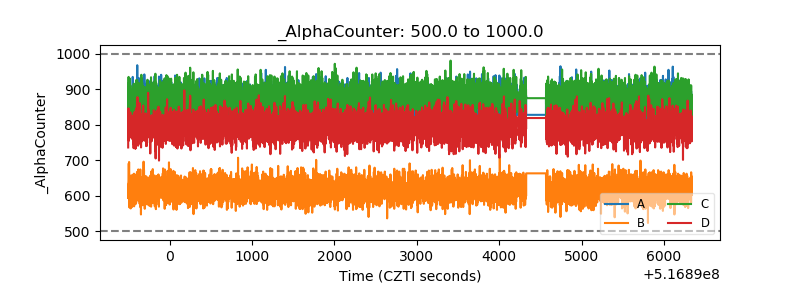

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
