| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006576_57577cztM0_level2.fits | modeM0/AS1A14_070T08_9000006576_57577cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,726,080 | 105,670,080 |
| Size | 562.4 MB | 100.8 MB |
| Events in quadrant A | 3,609,523 | 704,116 |
| Events in quadrant B | 4,869,829 | 727,473 |
| Events in quadrant C | 6,180,054 | 611,537 |
| Events in quadrant D | 6,514,041 | 568,852 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17152 | 2 |
| B | 0 | 20410 | 2 |
| C | 0 | 24243 | 2 |
| D | 0 | 25071 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8449 | 45 | 0.532607% |
| B | 8449 | 434 | 5.136703% |
| C | 8450 | 498 | 5.893491% |
| D | 8450 | 793 | 9.384615% |

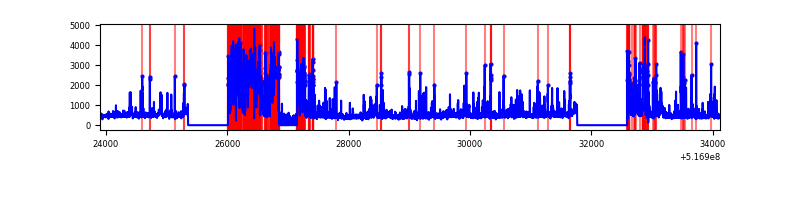

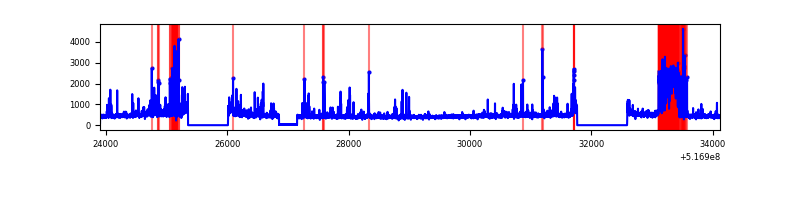

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10216 | 8733 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10216 | 8733 | 273 | 273 | 2.67% | 3.13% |  |
| C | 10217 | 8727 | 362 | 362 | 3.54% | 4.15% |  |
| D | 10217 | 8583 | 703 | 703 | 6.88% | 8.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 17099 | 71.5 | 920 | 892 | 226.7 |
| A | 3 | 14 | 14173 | 58.59 | 920 | 892 | 226.7 |
| A | 4 | 3 | 12022 | 49.1 | 920 | 892 | 226.7 |
| B | 2 | 249 | 953190 | 4989.3 | 895 | 859 | 190.9 |
| B | 0 | 63 | 92257 | 478.84 | 895 | 859 | 190.9 |
| B | 10 | 247 | 47940 | 246.66 | 895 | 859 | 190.9 |
| C | 12 | 254 | 939475 | 3970.73 | 869 | 863 | 236.4 |
| C | 14 | 245 | 784576 | 3315.44 | 869 | 863 | 236.4 |
| C | 15 | 224 | 651802 | 2753.75 | 869 | 863 | 236.4 |
| D | 15 | 142 | 1991959 | 8256.22 | 851 | 811 | 241.2 |
| D | 8 | 160 | 357706 | 1479.85 | 851 | 811 | 241.2 |
| D | 3 | 224 | 266880 | 1103.24 | 851 | 811 | 241.2 |

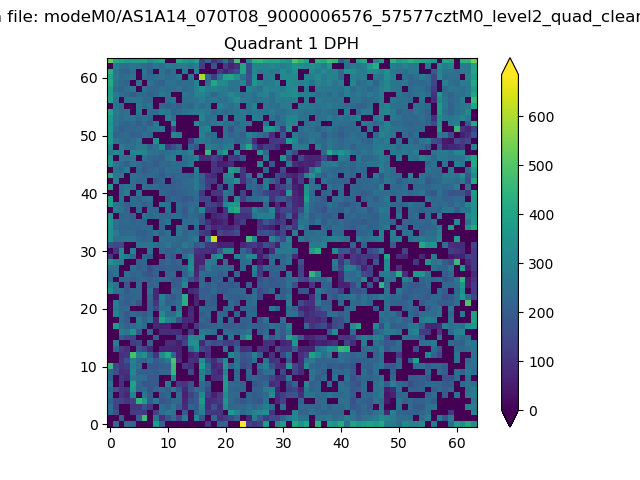

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

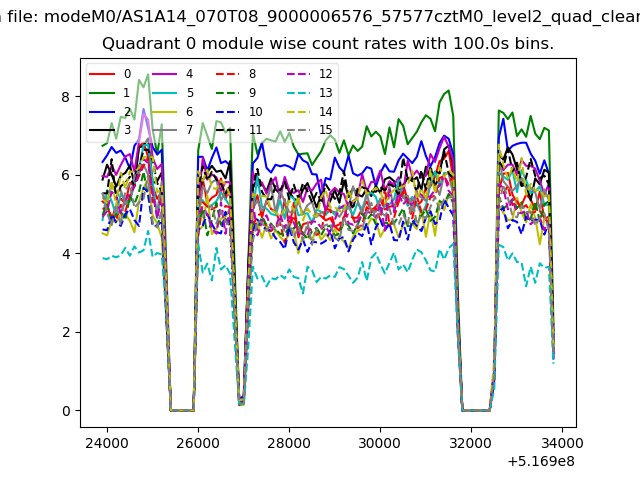

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

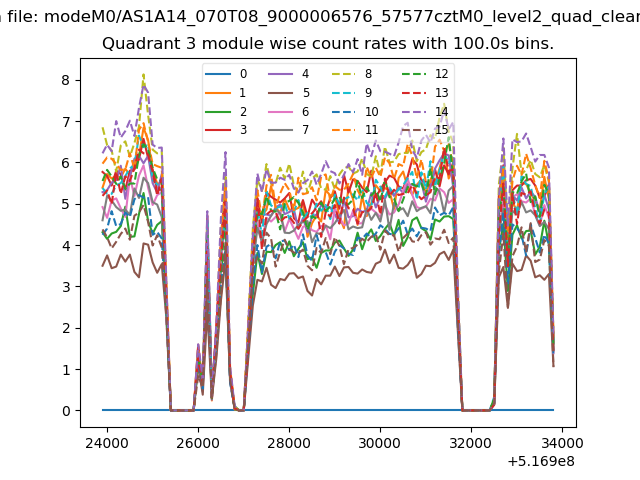

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

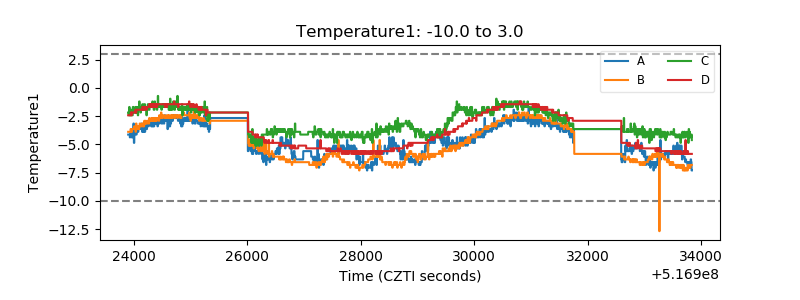

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

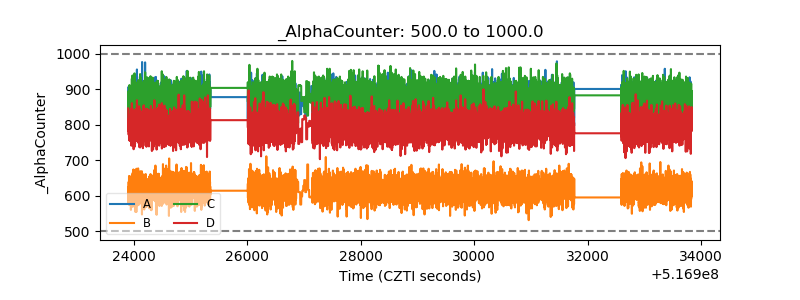

| Alpha Counter |  |

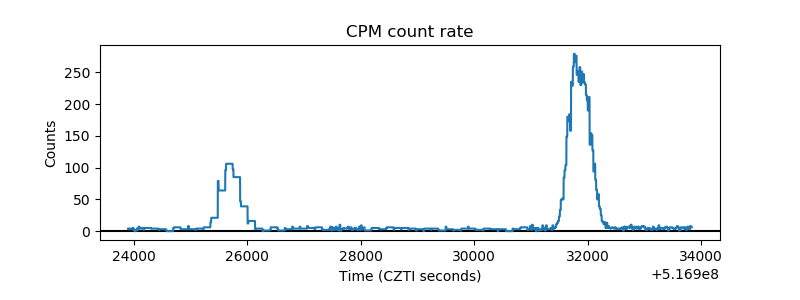

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
