| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006576_57584cztM0_level2.fits | modeM0/AS1A14_070T08_9000006576_57584cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,279,680 | 95,817,600 |
| Size | 416.1 MB | 91.4 MB |
| Events in quadrant A | 2,796,685 | 636,020 |
| Events in quadrant B | 4,426,434 | 652,549 |
| Events in quadrant C | 4,692,312 | 588,088 |
| Events in quadrant D | 3,724,233 | 566,765 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13294 | 2 |
| B | 0 | 17755 | 3 |
| C | 0 | 18620 | 2 |
| D | 0 | 15680 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6558 | 44 | 0.670936% |
| B | 6557 | 458 | 6.984902% |
| C | 6557 | 434 | 6.618881% |
| D | 6557 | 189 | 2.882416% |

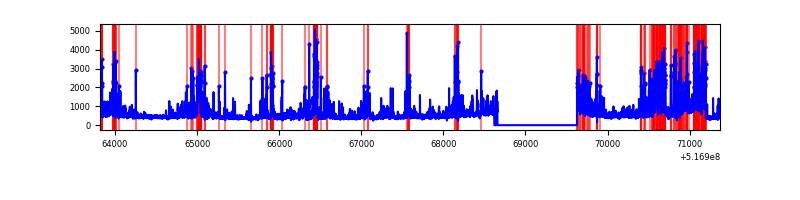

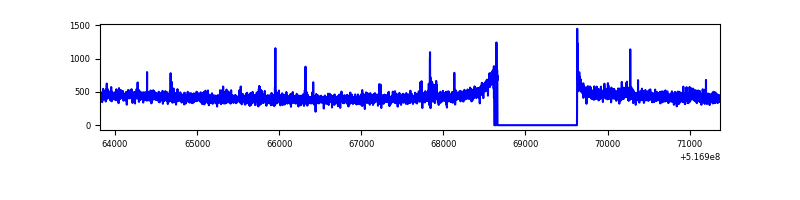

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 6560 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7552 | 6559 | 253 | 253 | 3.35% | 3.86% |  |
| C | 7552 | 6559 | 325 | 325 | 4.30% | 4.96% |  |
| D | 7552 | 6558 | 137 | 137 | 1.81% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 33941 | 188.78 | 711 | 690 | 176.1 |
| A | 4 | 13 | 9171 | 48.15 | 711 | 690 | 176.1 |
| A | 3 | 137 | 8381 | 43.66 | 711 | 690 | 176.1 |
| B | 2 | 249 | 1361532 | 9415.72 | 677 | 651 | 144.5 |
| B | 5 | 185 | 87696 | 602.25 | 677 | 651 | 144.5 |
| B | 4 | 201 | 61582 | 421.57 | 677 | 651 | 144.5 |
| C | 15 | 224 | 845864 | 4630.39 | 673 | 665 | 182.5 |
| C | 12 | 254 | 715876 | 3918.26 | 673 | 665 | 182.5 |
| C | 14 | 254 | 290910 | 1590.1 | 673 | 665 | 182.5 |
| D | 15 | 142 | 377967 | 1961.94 | 679 | 648 | 192.3 |
| D | 2 | 249 | 300092 | 1557.01 | 679 | 648 | 192.3 |
| D | 2 | 31 | 66303 | 341.39 | 679 | 648 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

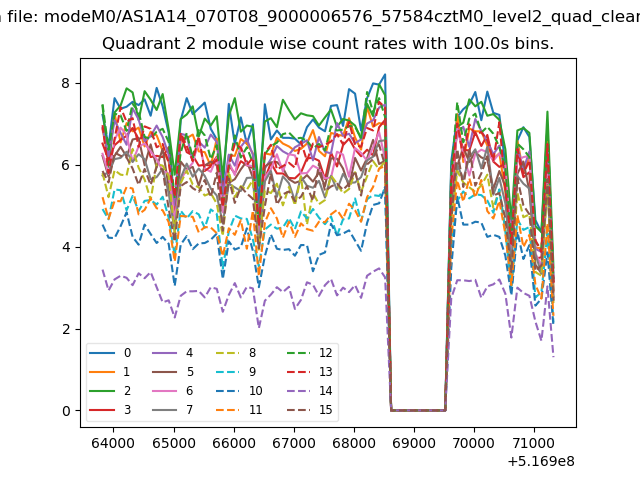

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

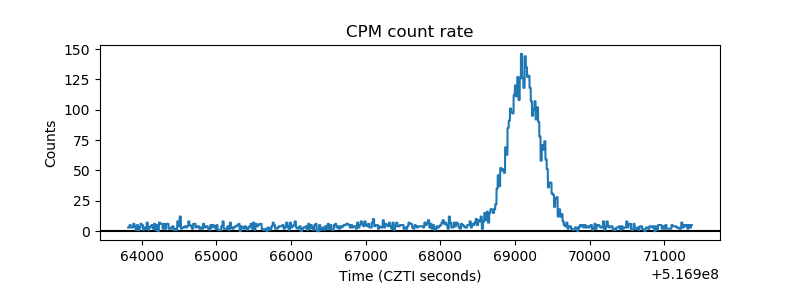

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

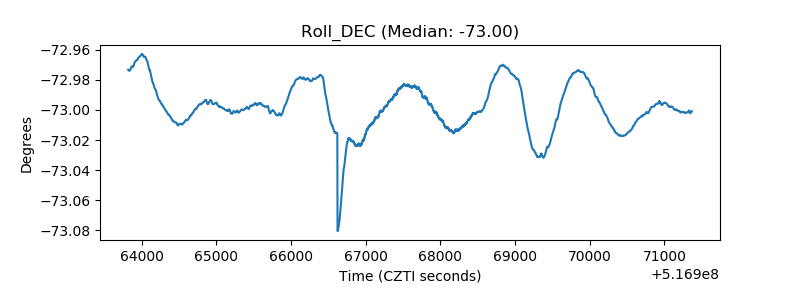

| _Roll_DEC |  |

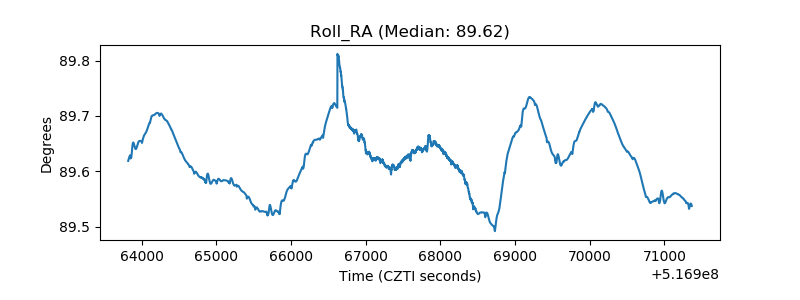

| _Roll_RA |  |
