| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_070T08_9000006576_57639cztM0_level2.fits | modeM0/AS1A14_070T08_9000006576_57639cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,913,600 | 95,235,840 |
| Size | 506.3 MB | 90.8 MB |
| Events in quadrant A | 3,550,074 | 659,348 |
| Events in quadrant B | 3,044,486 | 711,967 |
| Events in quadrant C | 4,130,189 | 611,574 |
| Events in quadrant D | 8,428,556 | 452,301 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15122 | 2 |
| B | 0 | 13526 | 2 |
| C | 0 | 16741 | 2 |
| D | 0 | 29423 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6432 | 58 | 0.901741% |
| B | 6432 | 63 | 0.979478% |
| C | 6432 | 273 | 4.244403% |
| D | 6432 | 1704 | 26.492537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

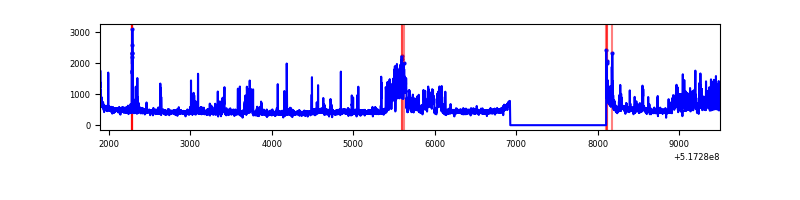

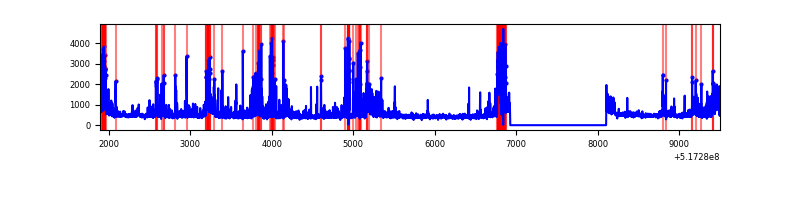

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7612 | 6433 | 12 | 12 | 0.16% | 0.19% |  |
| B | 7612 | 6433 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7612 | 6433 | 180 | 180 | 2.36% | 2.80% |  |
| D | 7612 | 6433 | 1512 | 1512 | 19.86% | 23.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 684448 | 3858.16 | 716 | 701 | 177.2 |
| A | 7 | 64 | 24501 | 134.3 | 716 | 701 | 177.2 |
| A | 3 | 245 | 24262 | 132.95 | 716 | 701 | 177.2 |
| B | 0 | 213 | 64111 | 427.43 | 711 | 685 | 148.4 |
| B | 10 | 247 | 59742 | 397.99 | 711 | 685 | 148.4 |
| B | 0 | 63 | 28808 | 189.52 | 711 | 685 | 148.4 |
| C | 15 | 224 | 1309785 | 6969.55 | 690 | 680 | 187.8 |
| C | 6 | 13 | 45190 | 236.96 | 690 | 680 | 187.8 |
| C | 14 | 254 | 24662 | 127.68 | 690 | 680 | 187.8 |
| D | 8 | 160 | 2224906 | 12968.05 | 601 | 574 | 171.5 |
| D | 15 | 142 | 2072750 | 12080.96 | 601 | 574 | 171.5 |
| D | 8 | 240 | 1314565 | 7660.68 | 601 | 574 | 171.5 |

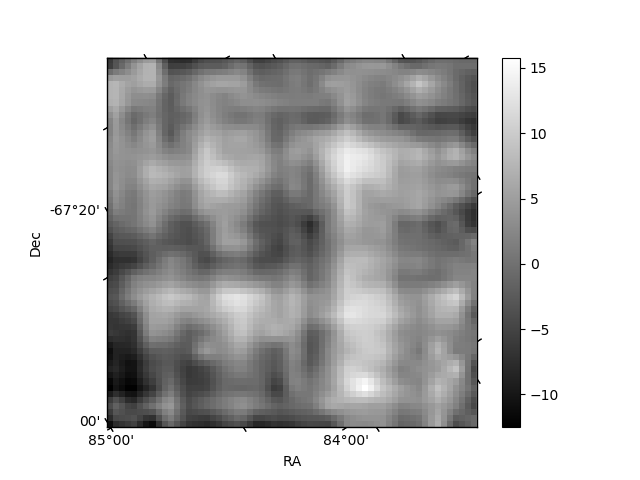

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

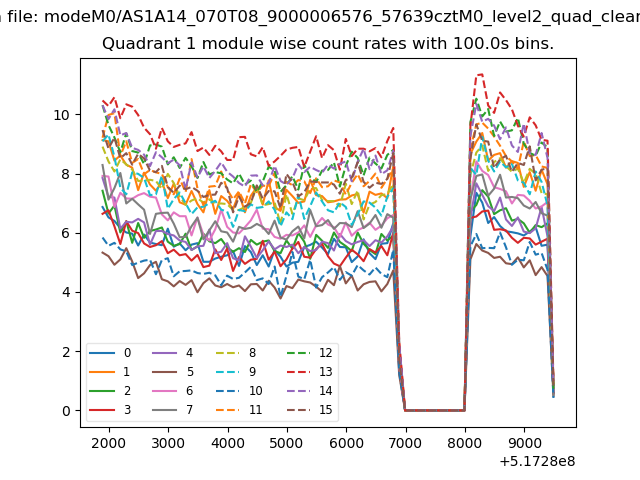

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

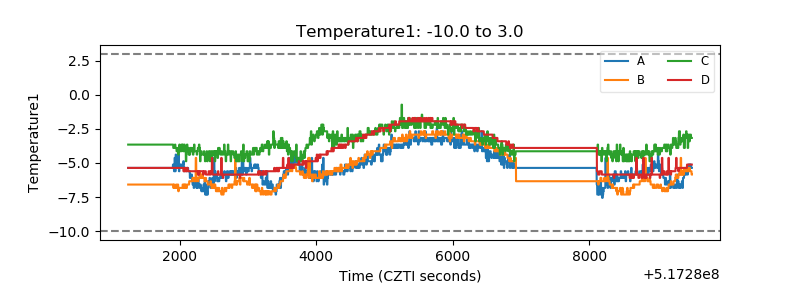

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

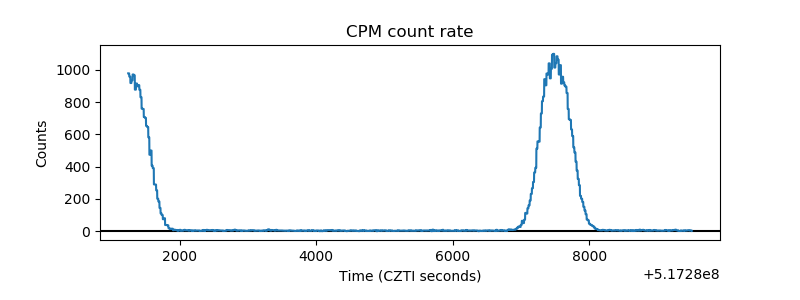

| _CPM_Rate |  |

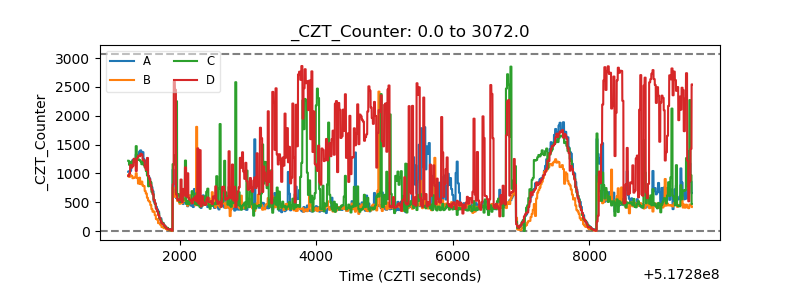

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

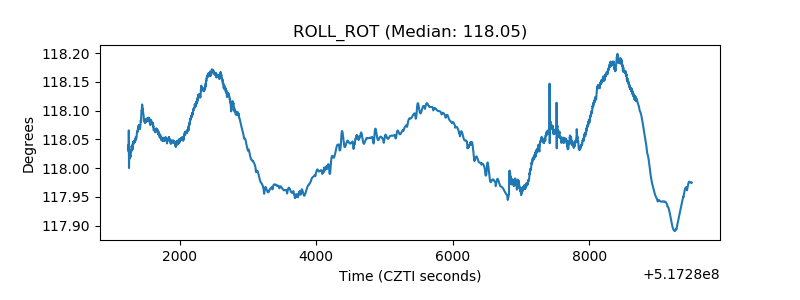

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
