| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57642cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57642cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,491,200 | 94,723,200 |
| Size | 422.9 MB | 90.3 MB |
| Events in quadrant A | 3,792,531 | 616,035 |
| Events in quadrant B | 3,016,466 | 683,550 |
| Events in quadrant C | 4,704,394 | 584,718 |
| Events in quadrant D | 4,409,019 | 540,261 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15727 | 1 |
| B | 0 | 13478 | 1 |
| C | 0 | 18484 | 1 |
| D | 0 | 17477 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6356 | 259 | 4.074890% |
| B | 6357 | 88 | 1.384301% |
| C | 6357 | 419 | 6.591159% |
| D | 6357 | 451 | 7.094541% |

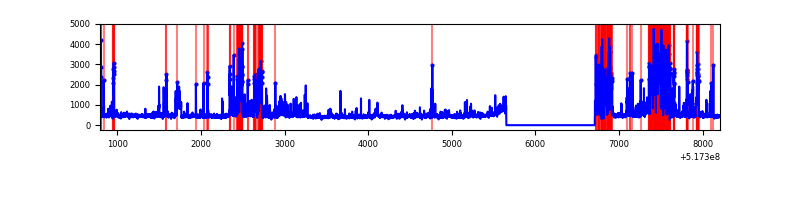

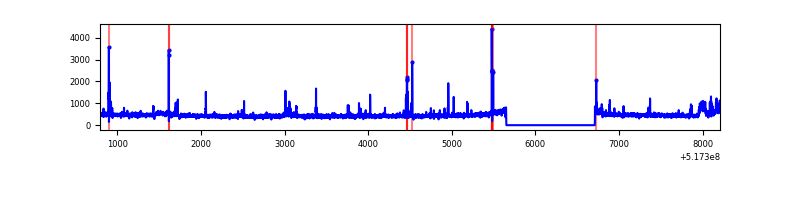

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7416 | 6357 | 157 | 157 | 2.12% | 2.47% |  |
| B | 7417 | 6358 | 14 | 14 | 0.19% | 0.22% |  |
| C | 7417 | 6358 | 254 | 254 | 3.42% | 3.99% |  |
| D | 7417 | 6358 | 379 | 379 | 5.11% | 5.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 223 | 856651 | 4980.76 | 694 | 679 | 171.9 |
| A | 3 | 14 | 160660 | 930.9 | 694 | 679 | 171.9 |
| A | 3 | 245 | 54042 | 310.51 | 694 | 679 | 171.9 |
| B | 5 | 172 | 86844 | 586.22 | 691 | 665 | 147.0 |
| B | 0 | 213 | 43590 | 291.99 | 691 | 665 | 147.0 |
| B | 10 | 247 | 37450 | 250.22 | 691 | 665 | 147.0 |
| C | 15 | 224 | 1795987 | 9812.15 | 670 | 662 | 183.0 |
| C | 10 | 22 | 152243 | 828.45 | 670 | 662 | 183.0 |
| C | 14 | 254 | 108319 | 588.39 | 670 | 662 | 183.0 |
| D | 8 | 160 | 998757 | 5320.26 | 661 | 630 | 187.6 |
| D | 8 | 240 | 411948 | 2192.43 | 661 | 630 | 187.6 |
| D | 3 | 12 | 53790 | 283.36 | 661 | 630 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

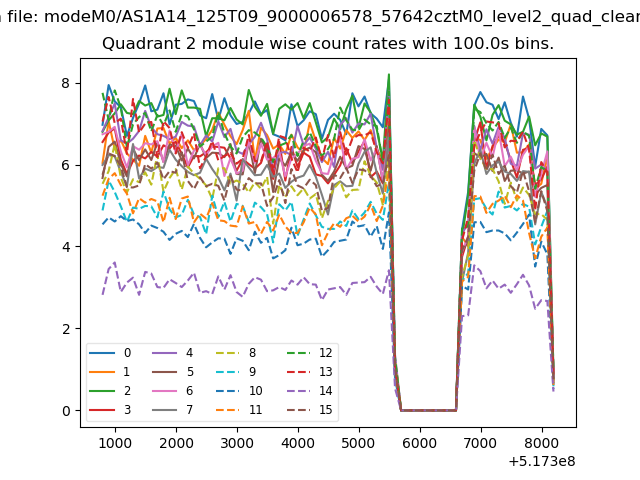

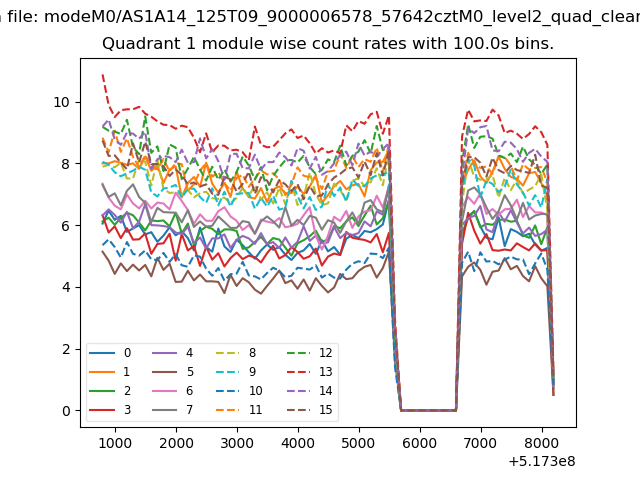

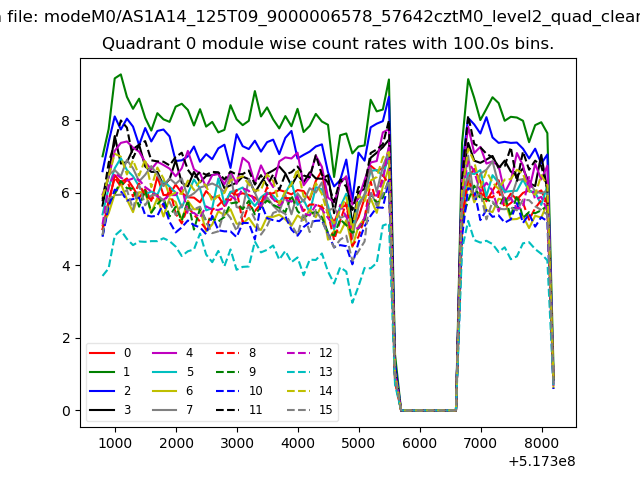

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

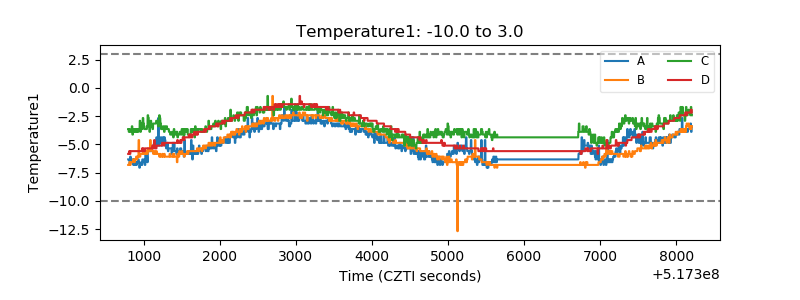

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

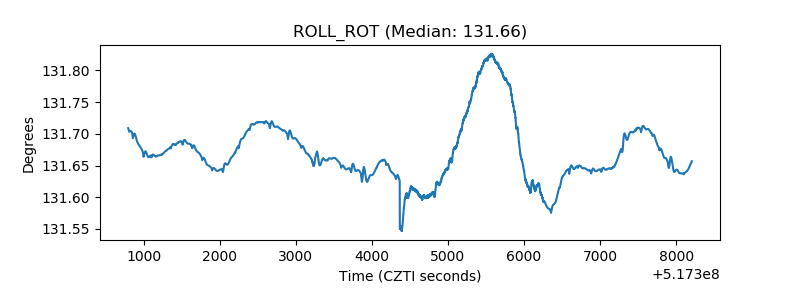

| _ROLL_ROT |  |

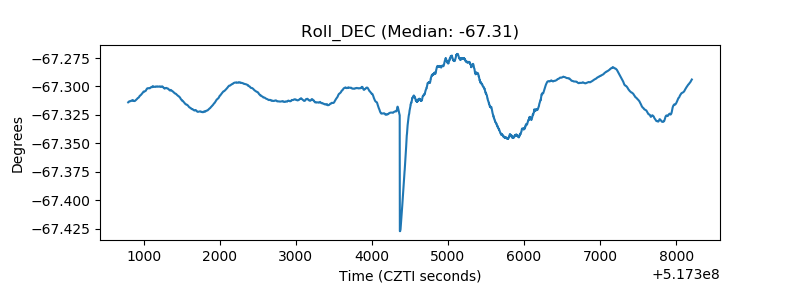

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
