| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57650cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57650cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,903,360 | 97,865,280 |
| Size | 435.7 MB | 93.3 MB |
| Events in quadrant A | 2,920,313 | 654,924 |
| Events in quadrant B | 3,318,502 | 699,860 |
| Events in quadrant C | 6,388,747 | 556,929 |
| Events in quadrant D | 3,754,338 | 575,539 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13924 | 2 |
| B | 0 | 14885 | 2 |
| C | 0 | 23913 | 2 |
| D | 0 | 16036 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6830 | 38 | 0.556369% |
| B | 6830 | 108 | 1.581259% |
| C | 6830 | 905 | 13.250366% |
| D | 6830 | 159 | 2.327965% |

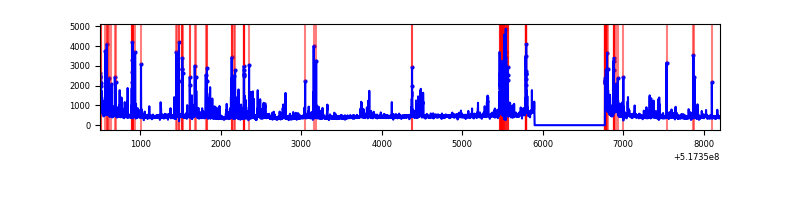

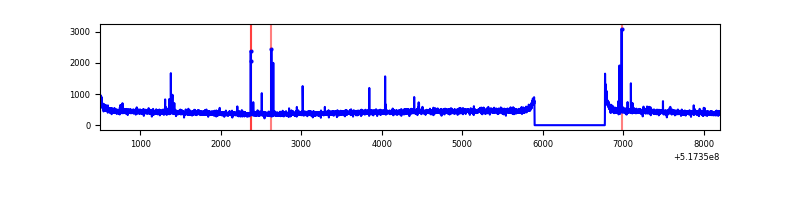

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7705 | 6831 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7705 | 6831 | 31 | 31 | 0.40% | 0.45% |  |
| C | 7705 | 6831 | 668 | 668 | 8.67% | 9.78% |  |
| D | 7705 | 6831 | 116 | 116 | 1.51% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 13 | 20078 | 105.94 | 740 | 723 | 182.7 |
| A | 3 | 245 | 16754 | 87.74 | 740 | 723 | 182.7 |
| A | 4 | 3 | 11457 | 58.75 | 740 | 723 | 182.7 |
| B | 5 | 185 | 144018 | 918.9 | 728 | 699 | 156.0 |
| B | 0 | 213 | 121326 | 773.41 | 728 | 699 | 156.0 |
| B | 10 | 247 | 45990 | 290.39 | 728 | 699 | 156.0 |
| C | 15 | 224 | 2874785 | 15642.74 | 675 | 669 | 183.7 |
| C | 6 | 223 | 427606 | 2323.66 | 675 | 669 | 183.7 |
| C | 14 | 254 | 157838 | 855.41 | 675 | 669 | 183.7 |
| D | 3 | 12 | 342247 | 1727.27 | 698 | 665 | 197.8 |
| D | 2 | 31 | 166386 | 838.0 | 698 | 665 | 197.8 |
| D | 8 | 160 | 150853 | 759.45 | 698 | 665 | 197.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

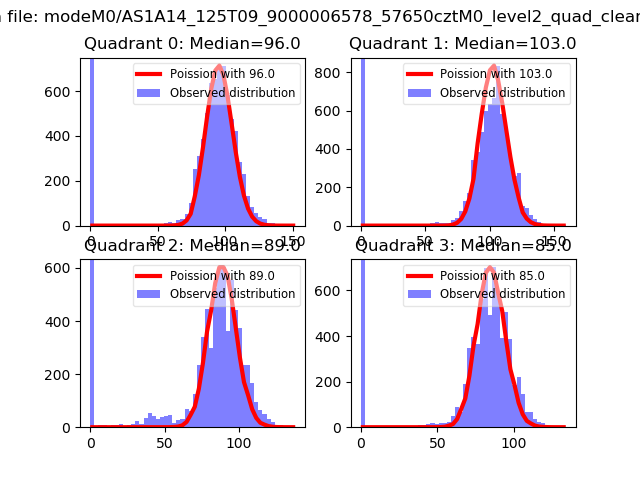

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

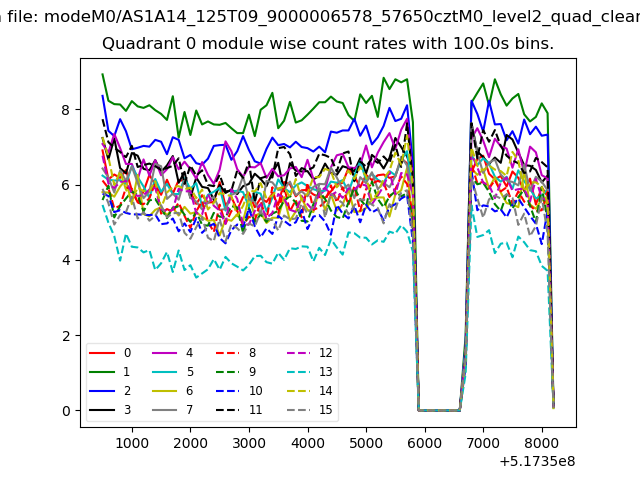

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

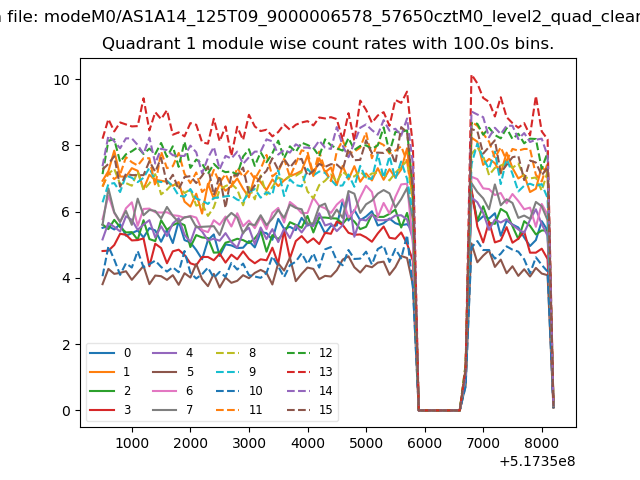

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

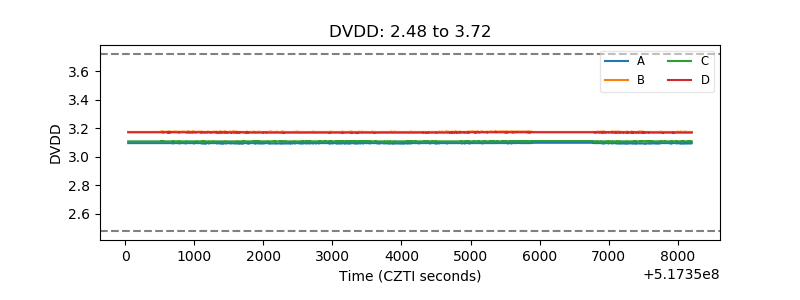

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

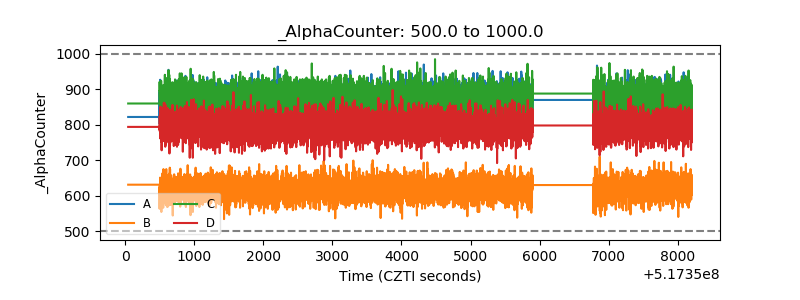

| Alpha Counter |  |

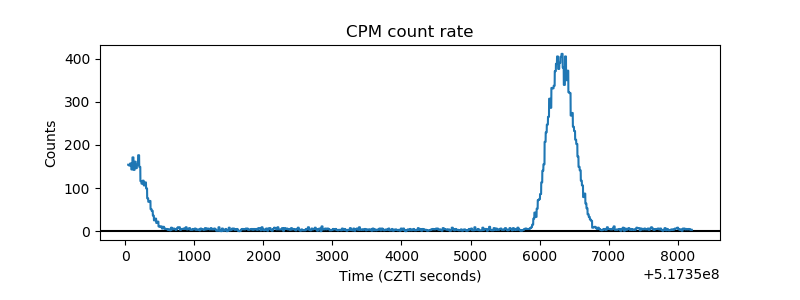

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
