| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57658cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57658cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,854,720 | 107,262,720 |
| Size | 482.4 MB | 102.3 MB |
| Events in quadrant A | 3,437,196 | 715,315 |
| Events in quadrant B | 3,421,474 | 766,242 |
| Events in quadrant C | 5,087,728 | 665,675 |
| Events in quadrant D | 6,195,267 | 578,223 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15825 | 2 |
| B | 0 | 15605 | 2 |
| C | 0 | 20538 | 2 |
| D | 0 | 23567 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7501 | 151 | 2.013065% |
| B | 7501 | 175 | 2.333022% |
| C | 7501 | 402 | 5.359285% |
| D | 7502 | 970 | 12.929885% |

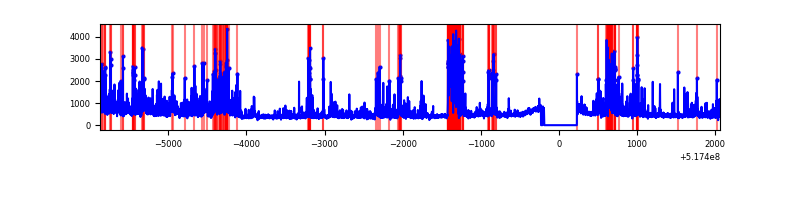

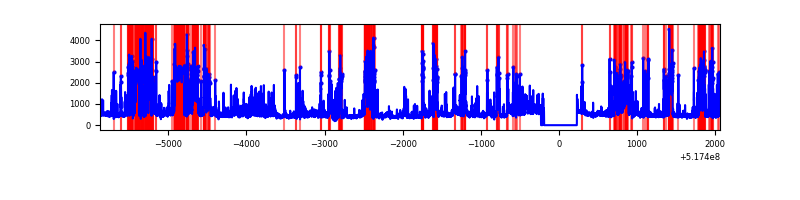

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

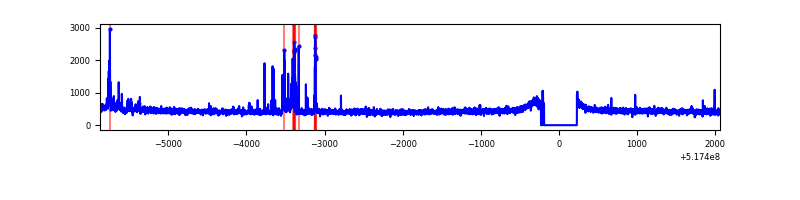

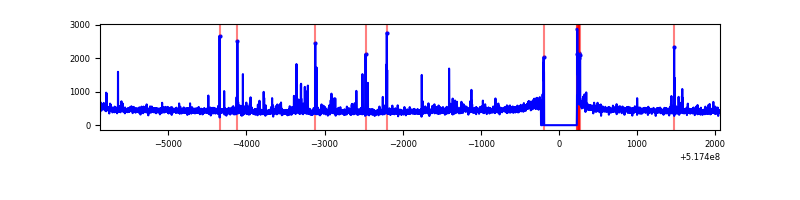

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7941 | 7502 | 16 | 16 | 0.20% | 0.21% |  |
| B | 7941 | 7502 | 15 | 15 | 0.19% | 0.20% |  |
| C | 7941 | 7503 | 279 | 279 | 3.51% | 3.72% |  |
| D | 7942 | 7503 | 661 | 661 | 8.32% | 8.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 164910 | 815.35 | 822 | 799 | 201.3 |
| A | 13 | 248 | 52591 | 257.32 | 822 | 799 | 201.3 |
| A | 7 | 223 | 42498 | 207.17 | 822 | 799 | 201.3 |
| B | 10 | 16 | 63231 | 366.37 | 808 | 778 | 170.5 |
| B | 0 | 245 | 40199 | 231.26 | 808 | 778 | 170.5 |
| B | 12 | 111 | 21260 | 120.15 | 808 | 778 | 170.5 |
| C | 15 | 224 | 948242 | 4430.23 | 788 | 778 | 213.9 |
| C | 8 | 7 | 486537 | 2271.35 | 788 | 778 | 213.9 |
| C | 12 | 254 | 391740 | 1828.09 | 788 | 778 | 213.9 |
| D | 8 | 240 | 1944933 | 9139.7 | 750 | 714 | 212.7 |
| D | 3 | 12 | 381173 | 1788.52 | 750 | 714 | 212.7 |
| D | 2 | 249 | 264969 | 1242.25 | 750 | 714 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

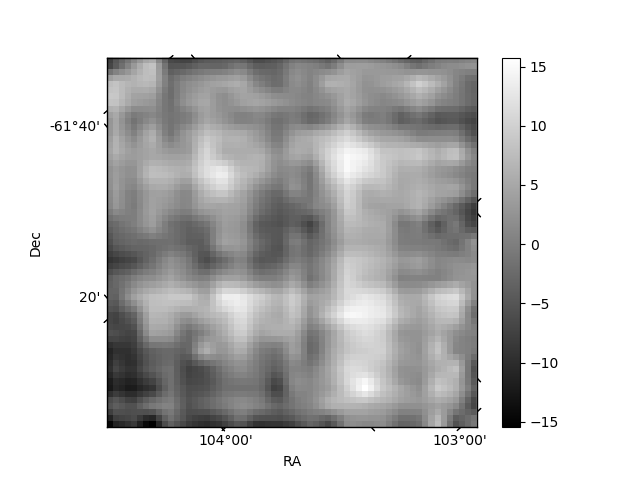

| Plot type | Count rate plots | Images |
|---|---|---|

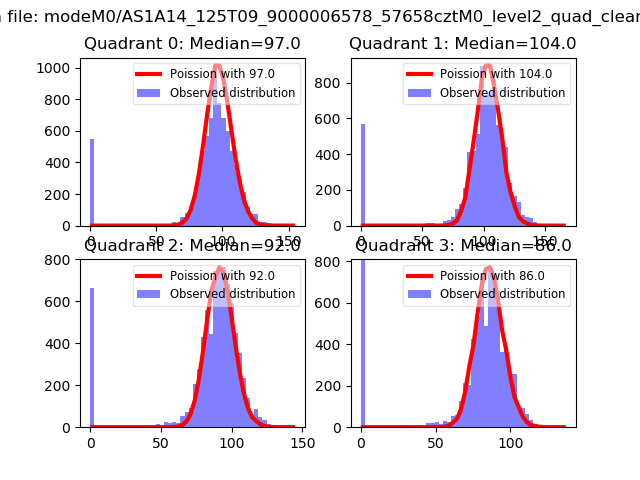

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

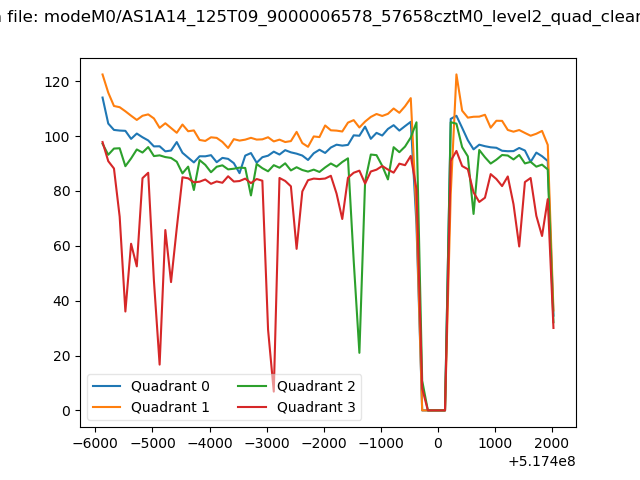

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

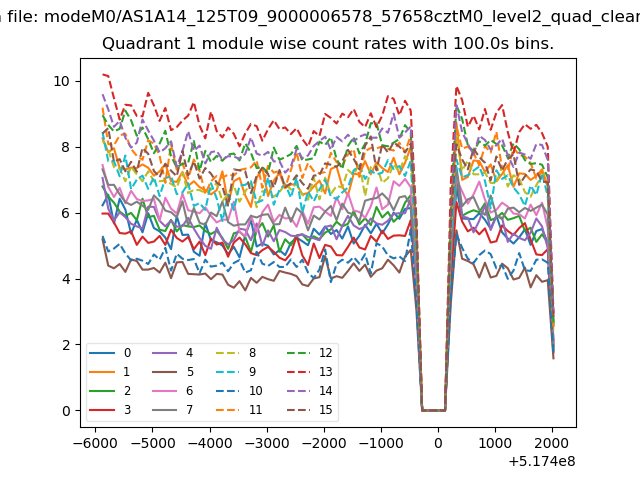

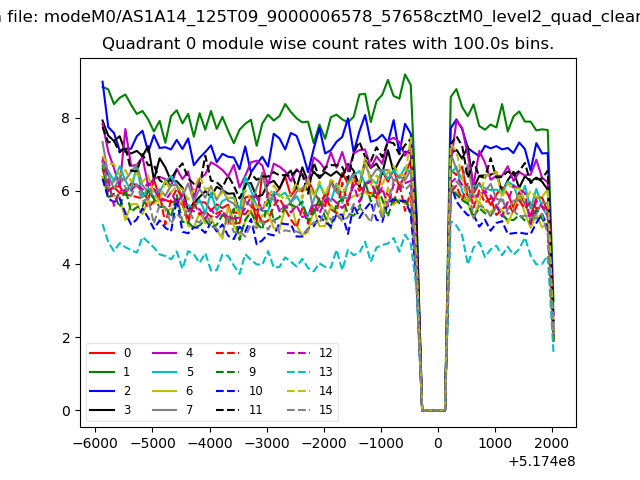

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

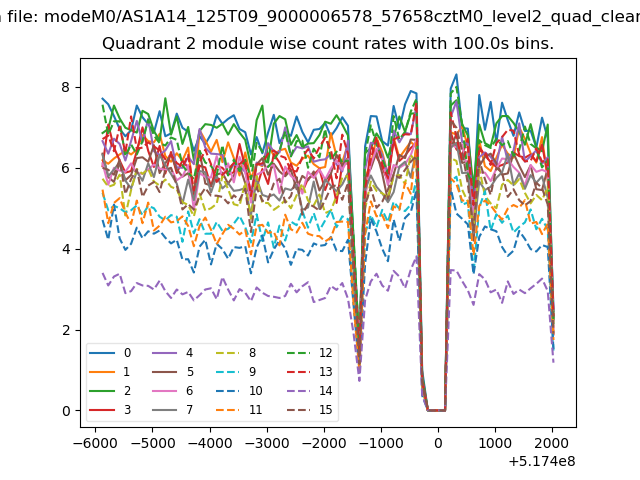

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

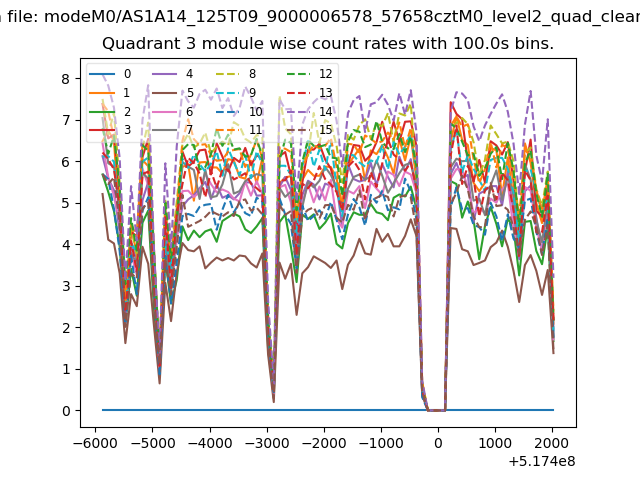

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

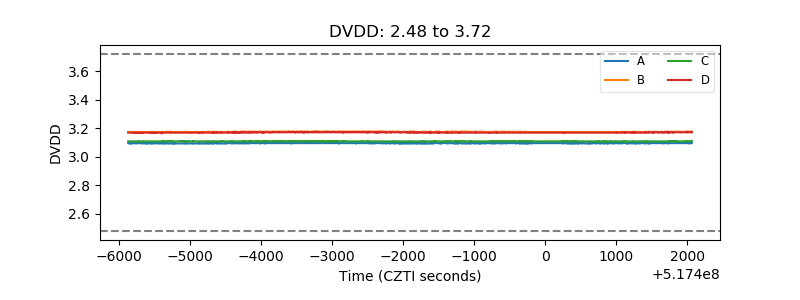

| D_VDD |  |

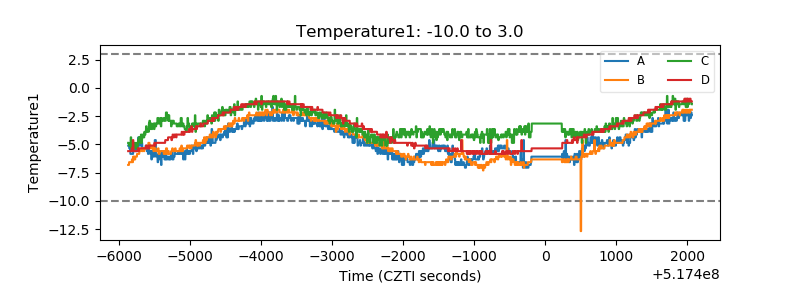

| Temperature 1 |  |
| Veto HV Monitor |  |

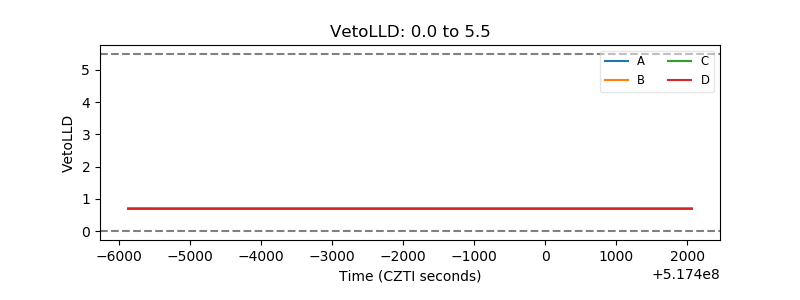

| Veto LLD |  |

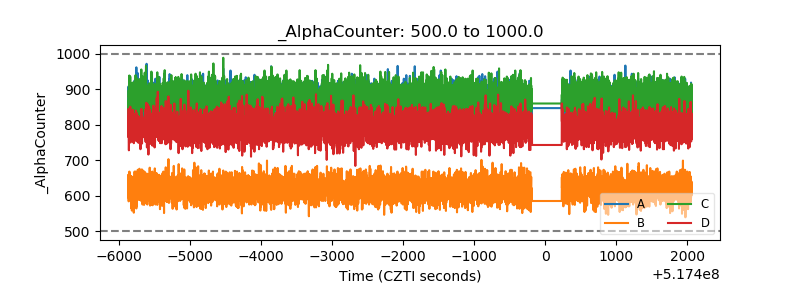

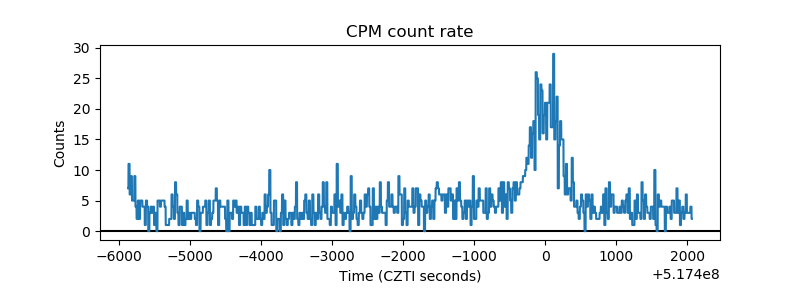

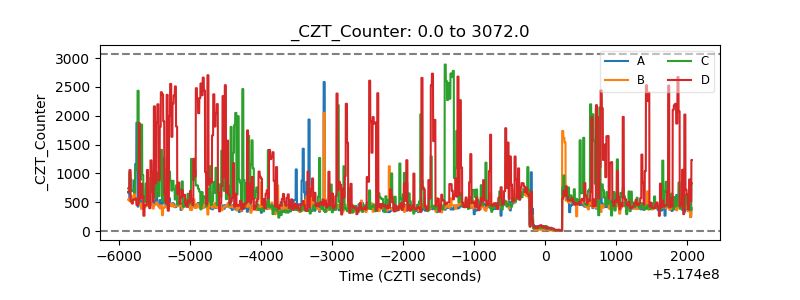

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

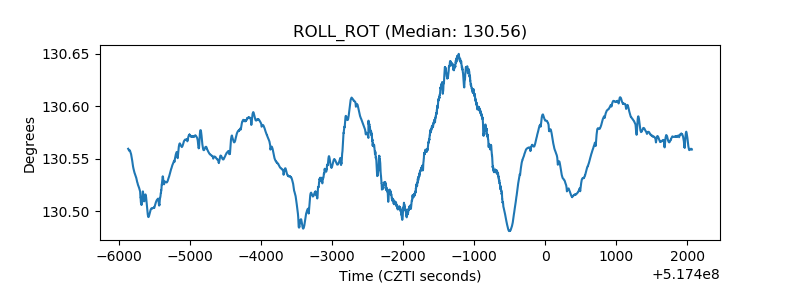

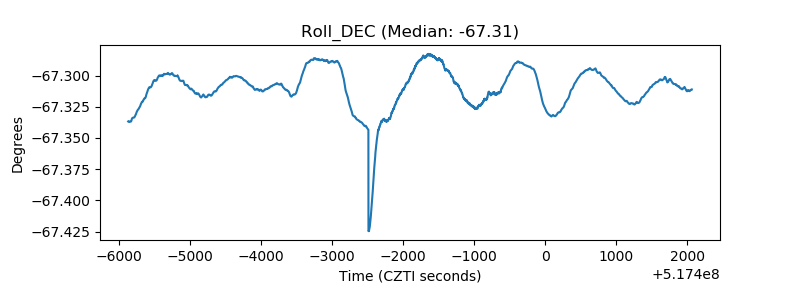

| _ROLL_ROT |  |
| _Roll_DEC |  |

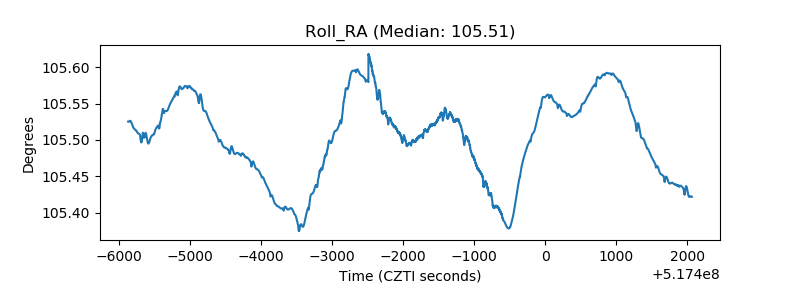

| _Roll_RA |  |

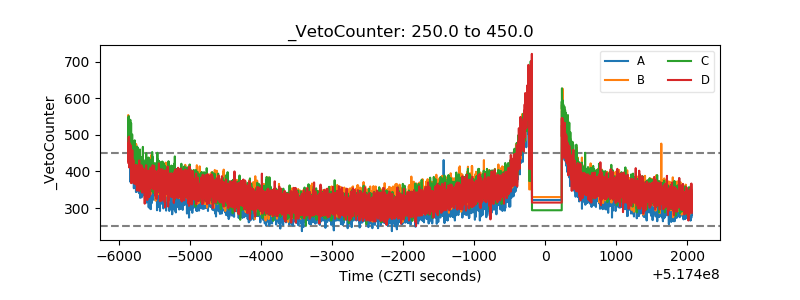

| Veto Counter |  |
