| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57683cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57683cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,575,040 | 86,955,840 |
| Size | 581.3 MB | 82.9 MB |
| Events in quadrant A | 3,030,487 | 617,039 |
| Events in quadrant B | 5,246,716 | 608,419 |
| Events in quadrant C | 8,261,732 | 427,151 |
| Events in quadrant D | 5,504,830 | 512,978 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13891 | 2 |
| B | 0 | 20195 | 2 |
| C | 0 | 29053 | 2 |
| D | 0 | 20881 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6704 | 62 | 0.924821% |
| B | 6704 | 829 | 12.365752% |
| C | 6704 | 2141 | 31.936158% |
| D | 6704 | 522 | 7.786396% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8156 | 6977 | 12 | 12 | 0.15% | 0.17% |  |
| B | 8156 | 6977 | 515 | 515 | 6.31% | 7.38% |  |
| C | 8156 | 6977 | 1720 | 1720 | 21.09% | 24.65% |  |
| D | 8156 | 6977 | 539 | 539 | 6.61% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 58452 | 314.86 | 751 | 735 | 183.3 |
| A | 3 | 245 | 16101 | 83.83 | 751 | 735 | 183.3 |
| A | 4 | 95 | 15698 | 81.63 | 751 | 735 | 183.3 |
| B | 5 | 185 | 2125175 | 14214.19 | 706 | 679 | 149.5 |
| B | 10 | 16 | 164197 | 1094.04 | 706 | 679 | 149.5 |
| B | 10 | 247 | 52648 | 347.7 | 706 | 679 | 149.5 |
| C | 12 | 254 | 4938233 | 30479.23 | 601 | 594 | 162.0 |
| C | 15 | 224 | 574788 | 3544.4 | 601 | 594 | 162.0 |
| C | 9 | 38 | 99049 | 607.75 | 601 | 594 | 162.0 |
| D | 8 | 160 | 1917133 | 9475.98 | 716 | 682 | 202.2 |
| D | 8 | 240 | 316477 | 1561.46 | 716 | 682 | 202.2 |
| D | 2 | 120 | 262917 | 1296.63 | 716 | 682 | 202.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

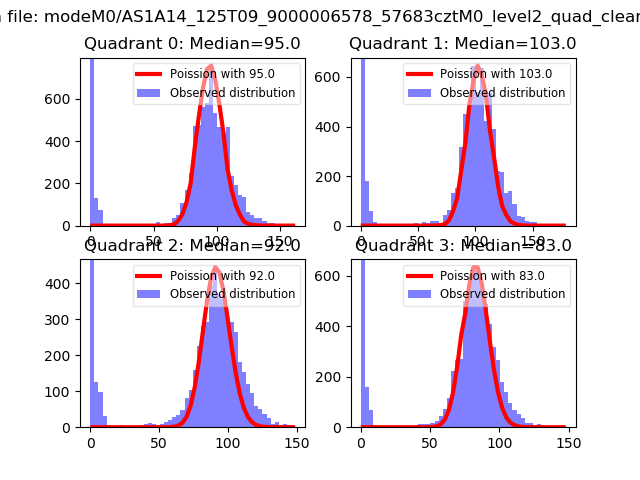

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

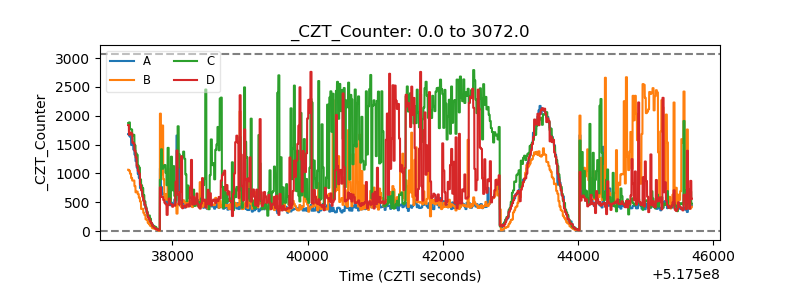

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

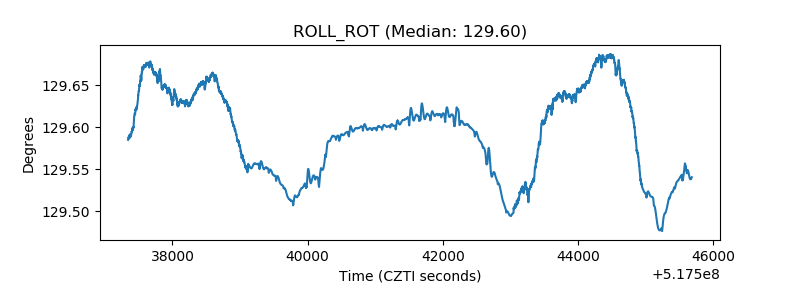

| _ROLL_ROT |  |

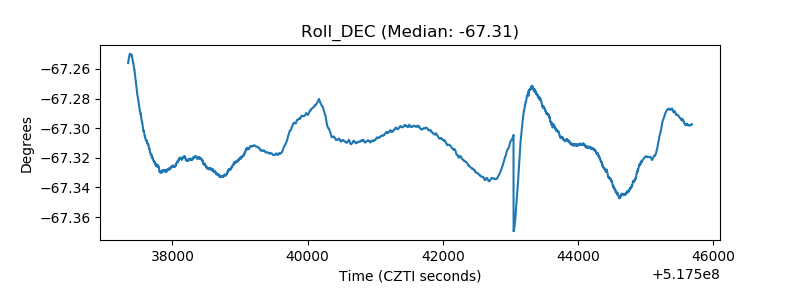

| _Roll_DEC |  |
| _Roll_RA |  |

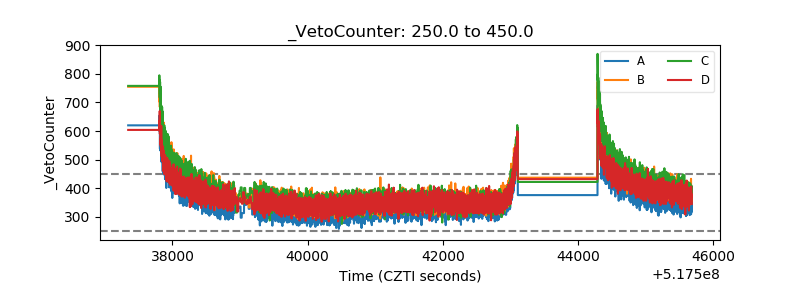

| Veto Counter |  |
