| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57685cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57685cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,582,720 | 83,954,880 |
| Size | 449.7 MB | 80.1 MB |
| Events in quadrant A | 2,646,329 | 590,913 |
| Events in quadrant B | 6,628,947 | 474,459 |
| Events in quadrant C | 3,649,041 | 551,207 |
| Events in quadrant D | 4,077,055 | 517,092 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12142 | 2 |
| B | 0 | 23741 | 1 |
| C | 0 | 14872 | 1 |
| D | 0 | 16093 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5847 | 43 | 0.735420% |
| B | 5848 | 1725 | 29.497264% |
| C | 5848 | 240 | 4.103967% |
| D | 5848 | 254 | 4.343365% |

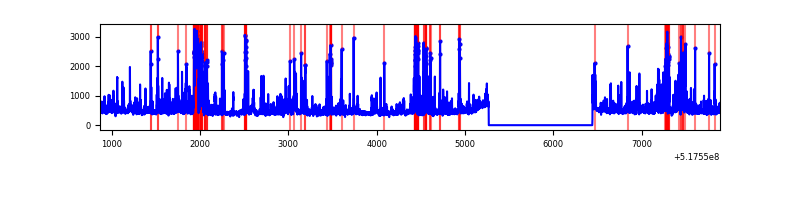

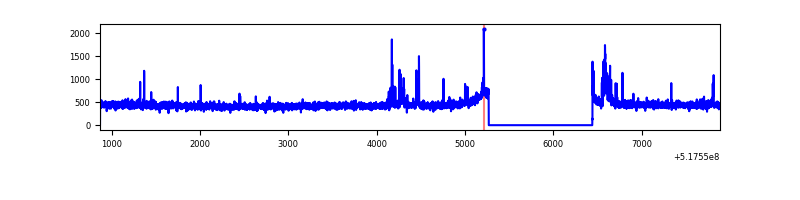

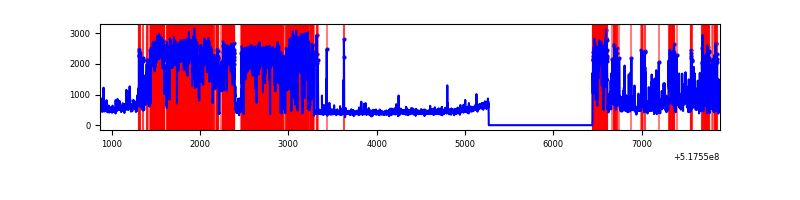

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7022 | 5848 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7023 | 5849 | 1417 | 1417 | 20.18% | 24.23% |  |
| C | 7023 | 5849 | 174 | 174 | 2.48% | 2.97% |  |
| D | 7023 | 5849 | 221 | 221 | 3.15% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 103736 | 647.81 | 649 | 633 | 159.2 |
| A | 3 | 245 | 7842 | 45.3 | 649 | 633 | 159.2 |
| A | 3 | 137 | 7752 | 44.73 | 649 | 633 | 159.2 |
| B | 5 | 185 | 4162975 | 34704.24 | 560 | 540 | 119.9 |
| B | 10 | 16 | 150803 | 1252.82 | 560 | 540 | 119.9 |
| B | 10 | 246 | 51592 | 425.65 | 560 | 540 | 119.9 |
| C | 15 | 224 | 597605 | 3497.03 | 627 | 621 | 170.7 |
| C | 12 | 2 | 313883 | 1835.04 | 627 | 621 | 170.7 |
| C | 6 | 223 | 111280 | 648.22 | 627 | 621 | 170.7 |
| D | 8 | 160 | 760312 | 4351.63 | 622 | 594 | 174.6 |
| D | 8 | 240 | 371447 | 2124.23 | 622 | 594 | 174.6 |
| D | 7 | 253 | 112664 | 641.93 | 622 | 594 | 174.6 |

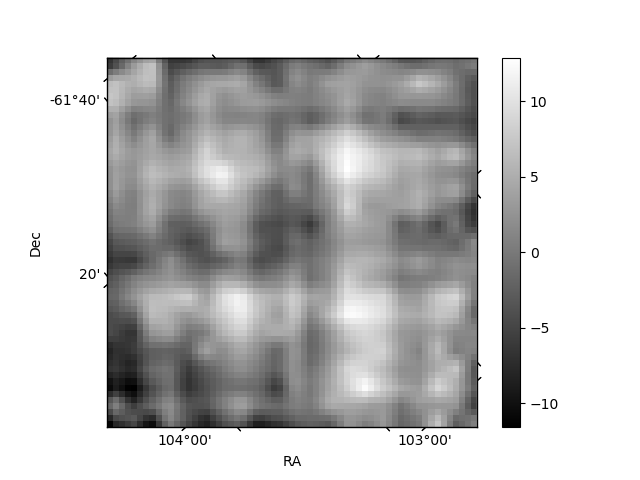

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

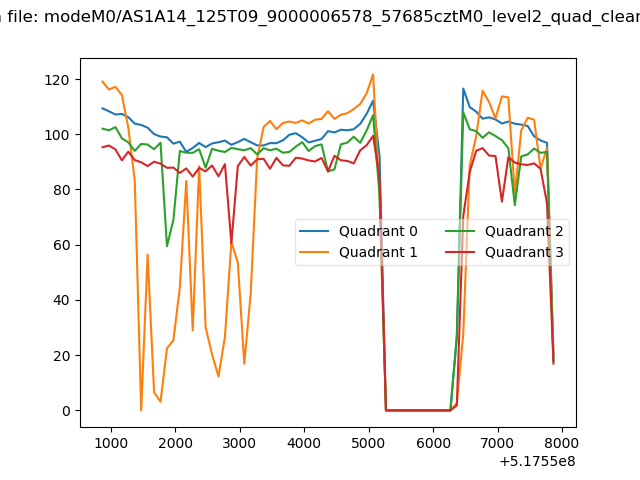

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

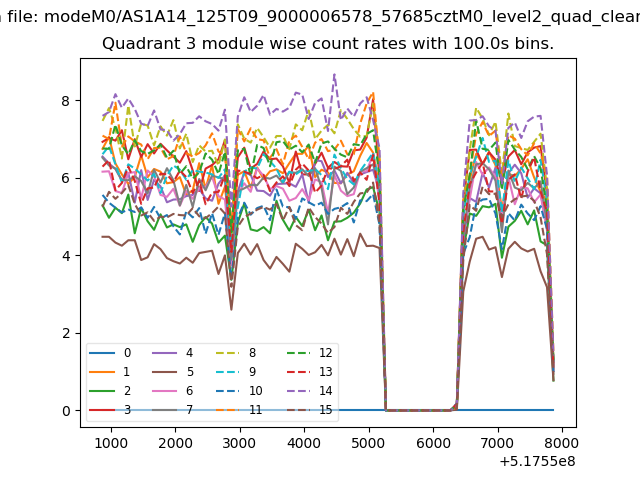

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

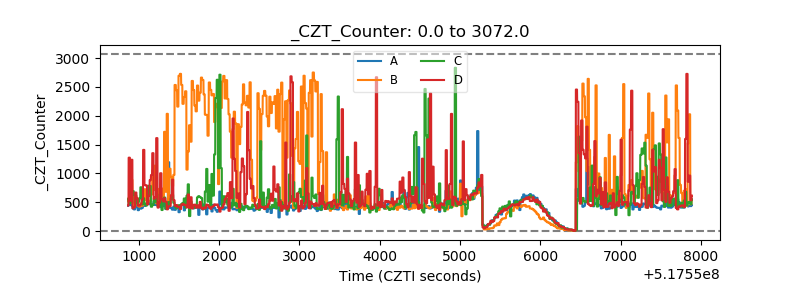

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

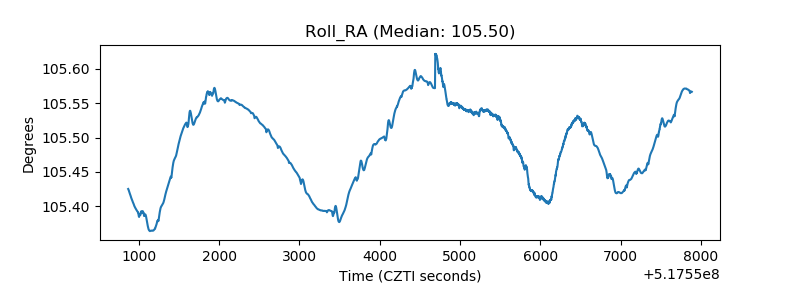

| _Roll_RA |  |
| Veto Counter |  |
