| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57694cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57694cztM0_level2_quad_clean.evt |
| Size (bytes) | 799,980,480 | 81,227,520 |
| Size | 762.9 MB | 77.5 MB |
| Events in quadrant A | 5,009,415 | 593,927 |
| Events in quadrant B | 3,960,289 | 668,984 |
| Events in quadrant C | 3,973,291 | 612,055 |
| Events in quadrant D | 16,147,810 | 115,191 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19521 | 2 |
| B | 0 | 16600 | 2 |
| C | 0 | 16502 | 3 |
| D | 0 | 52533 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6726 | 669 | 9.946476% |
| B | 6726 | 336 | 4.995540% |
| C | 6725 | 107 | 1.591078% |
| D | 6725 | 5409 | 80.431227% |

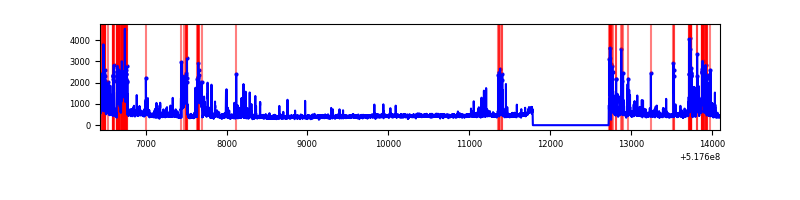

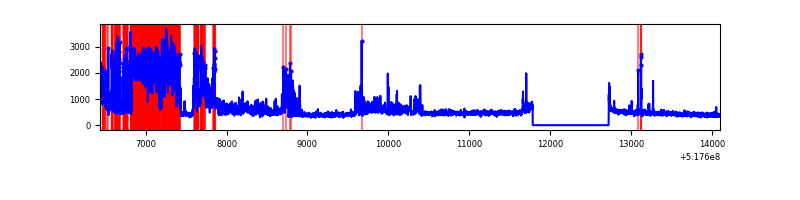

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7666 | 6727 | 566 | 566 | 7.38% | 8.41% |  |
| B | 7666 | 6727 | 156 | 156 | 2.03% | 2.32% |  |
| C | 7665 | 6726 | 71 | 71 | 0.93% | 1.06% |  |
| D | 7665 | 6724 | 5410 | 5410 | 70.58% | 80.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2123131 | 12114.25 | 708 | 691 | 175.2 |
| A | 3 | 128 | 63046 | 355.9 | 708 | 691 | 175.2 |
| A | 4 | 13 | 40781 | 228.82 | 708 | 691 | 175.2 |
| B | 10 | 16 | 781533 | 5129.8 | 711 | 685 | 152.2 |
| B | 10 | 247 | 99402 | 648.52 | 711 | 685 | 152.2 |
| B | 4 | 80 | 98837 | 644.81 | 711 | 685 | 152.2 |
| C | 15 | 224 | 911854 | 4781.72 | 698 | 690 | 190.6 |
| C | 14 | 246 | 104918 | 546.98 | 698 | 690 | 190.6 |
| C | 14 | 67 | 97654 | 508.86 | 698 | 690 | 190.6 |
| D | 8 | 240 | 14509677 | 175374.32 | 281 | 267 | 82.7 |
| D | 8 | 160 | 398619 | 4814.86 | 281 | 267 | 82.7 |
| D | 3 | 12 | 26874 | 321.6 | 281 | 267 | 82.7 |

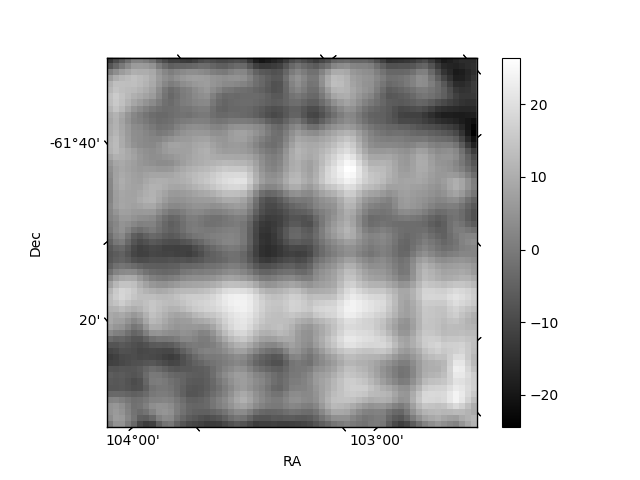

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

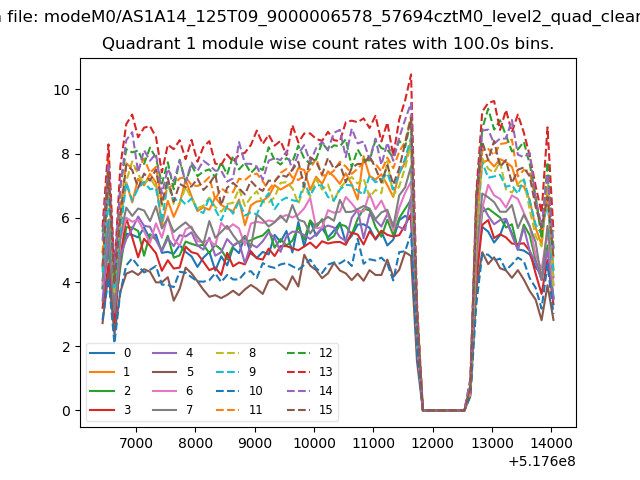

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

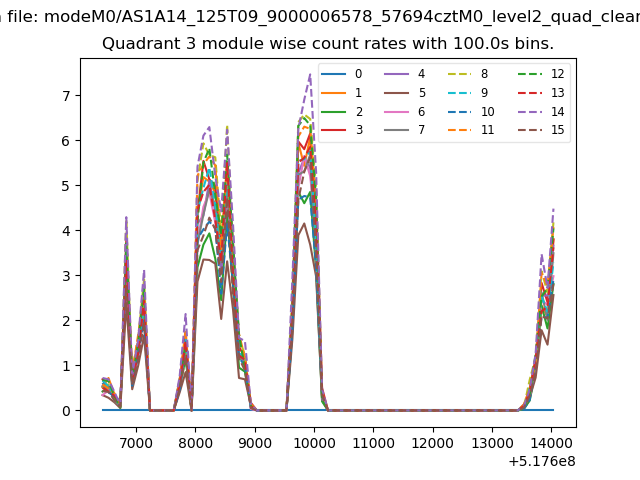

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

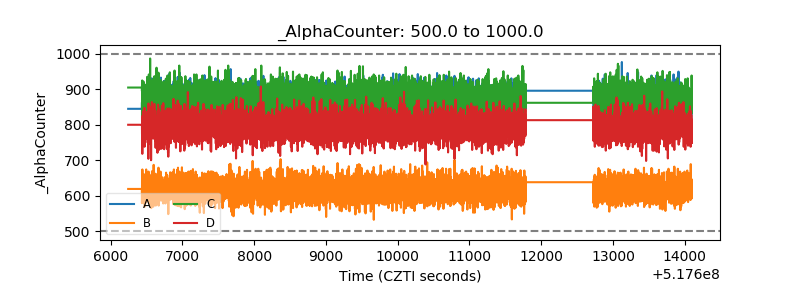

| Alpha Counter |  |
| _CPM_Rate |  |

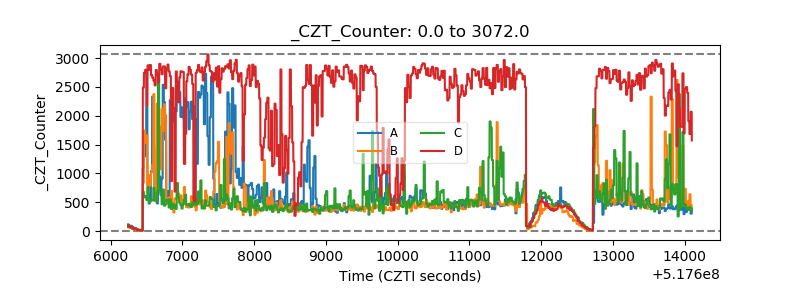

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

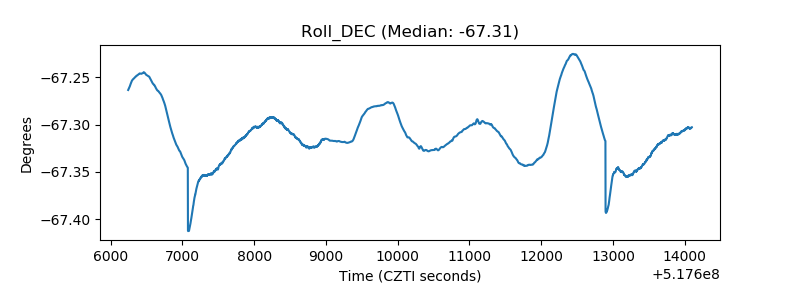

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
