| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57697cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57697cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,304,960 | 96,860,160 |
| Size | 408.5 MB | 92.4 MB |
| Events in quadrant A | 2,807,706 | 653,135 |
| Events in quadrant B | 3,157,941 | 698,285 |
| Events in quadrant C | 3,787,338 | 615,263 |
| Events in quadrant D | 5,603,871 | 520,054 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12990 | 2 |
| B | 0 | 13848 | 2 |
| C | 0 | 15591 | 2 |
| D | 0 | 21028 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6397 | 14 | 0.218853% |
| B | 6397 | 80 | 1.250586% |
| C | 6397 | 82 | 1.281851% |
| D | 6396 | 735 | 11.491557% |

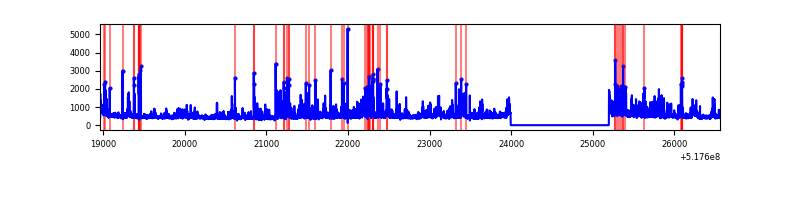

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7602 | 6398 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7602 | 6398 | 45 | 45 | 0.59% | 0.70% |  |
| C | 7602 | 6398 | 60 | 60 | 0.79% | 0.94% |  |
| D | 7601 | 6397 | 692 | 692 | 9.10% | 10.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 27783 | 156.52 | 707 | 690 | 173.1 |
| A | 3 | 128 | 20172 | 112.55 | 707 | 690 | 173.1 |
| A | 4 | 3 | 13097 | 71.68 | 707 | 690 | 173.1 |
| B | 4 | 142 | 77518 | 518.1 | 698 | 671 | 148.3 |
| B | 10 | 16 | 65590 | 437.68 | 698 | 671 | 148.3 |
| B | 0 | 63 | 47891 | 318.36 | 698 | 671 | 148.3 |
| C | 15 | 224 | 713922 | 3803.88 | 688 | 683 | 187.5 |
| C | 14 | 96 | 97187 | 514.68 | 688 | 683 | 187.5 |
| C | 9 | 237 | 87296 | 461.93 | 688 | 683 | 187.5 |
| D | 8 | 240 | 2156169 | 11873.53 | 640 | 610 | 181.5 |
| D | 8 | 160 | 619073 | 3406.7 | 640 | 610 | 181.5 |
| D | 13 | 138 | 66921 | 365.26 | 640 | 610 | 181.5 |

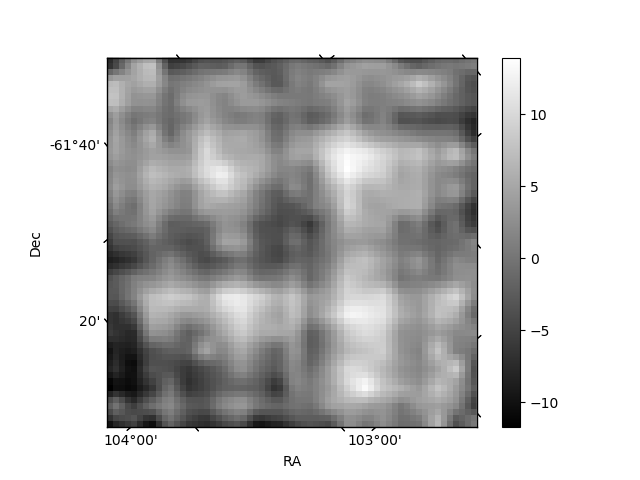

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

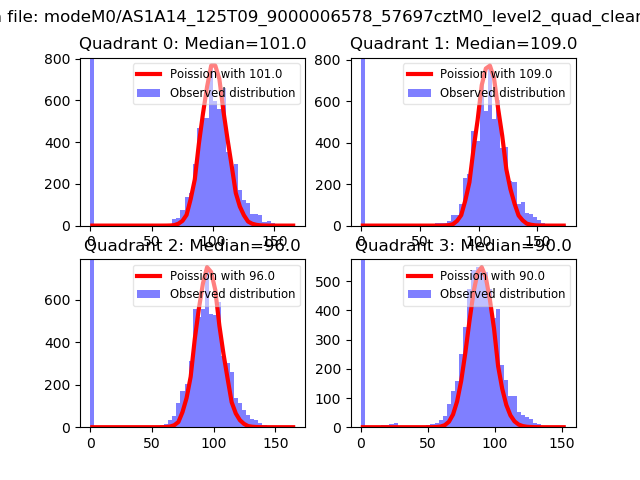

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

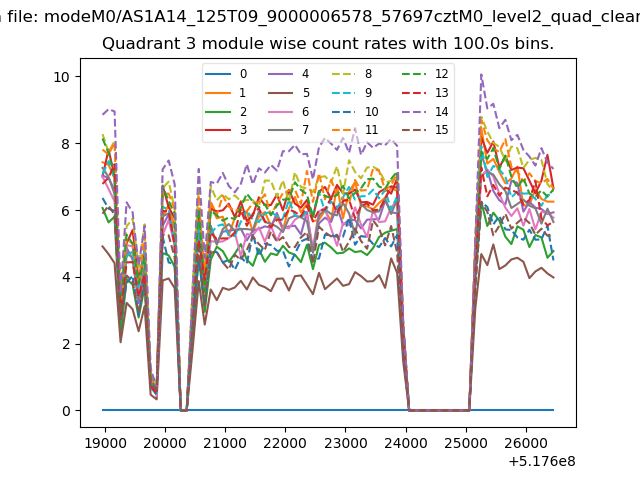

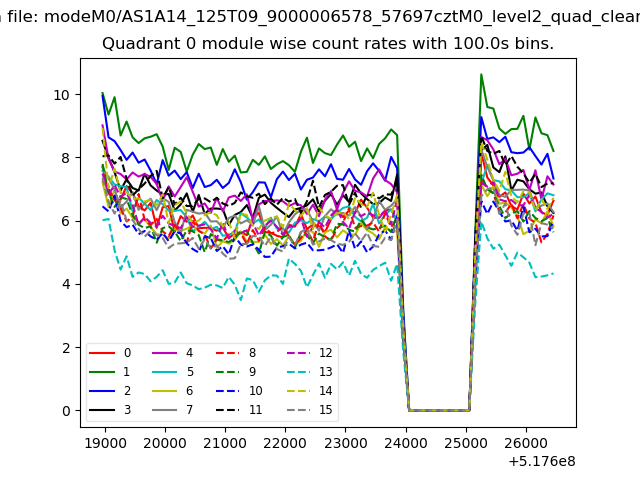

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

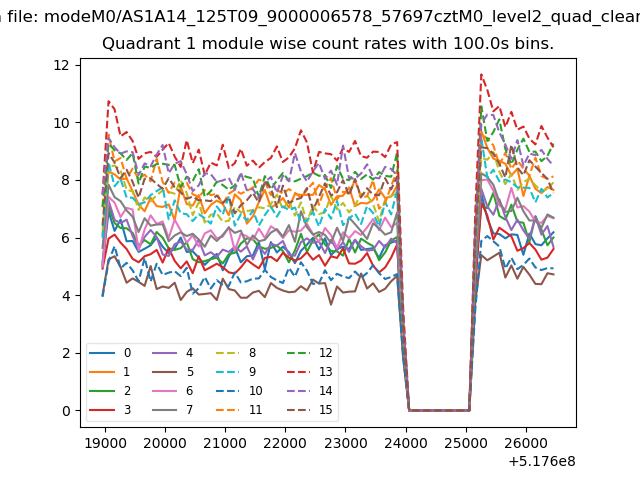

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

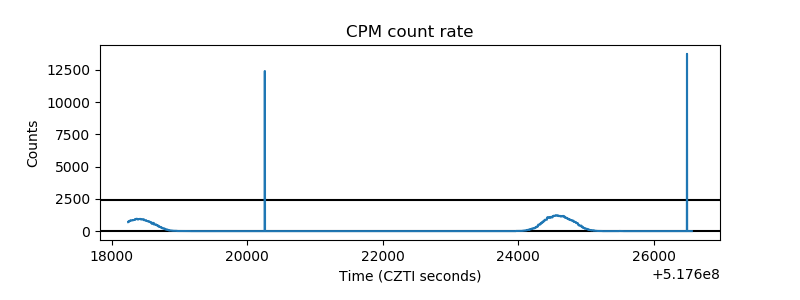

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

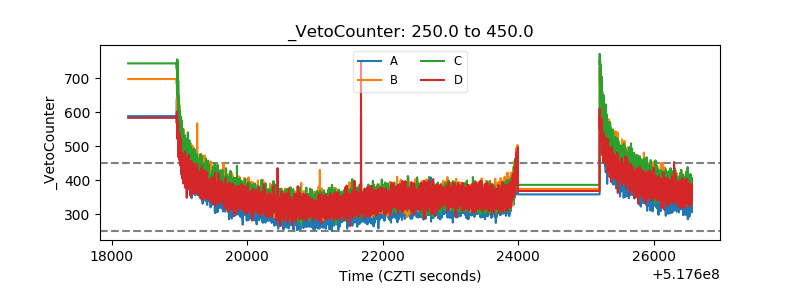

| Veto Counter |  |
