| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57698cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57698cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,418,880 | 103,728,960 |
| Size | 384.7 MB | 98.9 MB |
| Events in quadrant A | 3,063,138 | 689,785 |
| Events in quadrant B | 3,649,702 | 734,733 |
| Events in quadrant C | 4,115,926 | 649,733 |
| Events in quadrant D | 3,590,423 | 605,874 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13725 | 3 |
| B | 0 | 15396 | 2 |
| C | 0 | 16626 | 2 |
| D | 0 | 15219 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6607 | 31 | 0.469199% |
| B | 6607 | 172 | 2.603300% |
| C | 6607 | 136 | 2.058423% |
| D | 6607 | 143 | 2.164371% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7853 | 6608 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7853 | 6608 | 59 | 59 | 0.75% | 0.89% |  |
| C | 7853 | 6608 | 97 | 97 | 1.24% | 1.47% |  |
| D | 7853 | 6608 | 118 | 118 | 1.50% | 1.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 59180 | 321.61 | 741 | 722 | 181.8 |
| A | 3 | 14 | 56687 | 307.89 | 741 | 722 | 181.8 |
| A | 3 | 128 | 26680 | 142.81 | 741 | 722 | 181.8 |
| B | 5 | 185 | 228519 | 1470.9 | 733 | 708 | 154.9 |
| B | 4 | 80 | 177563 | 1141.9 | 733 | 708 | 154.9 |
| B | 10 | 246 | 57616 | 367.44 | 733 | 708 | 154.9 |
| C | 15 | 224 | 842373 | 4330.13 | 722 | 718 | 194.4 |
| C | 14 | 96 | 108456 | 554.29 | 722 | 718 | 194.4 |
| C | 9 | 237 | 99446 | 507.93 | 722 | 718 | 194.4 |
| D | 8 | 160 | 316767 | 1565.61 | 718 | 684 | 201.9 |
| D | 2 | 120 | 236063 | 1165.87 | 718 | 684 | 201.9 |
| D | 5 | 173 | 39049 | 190.03 | 718 | 684 | 201.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

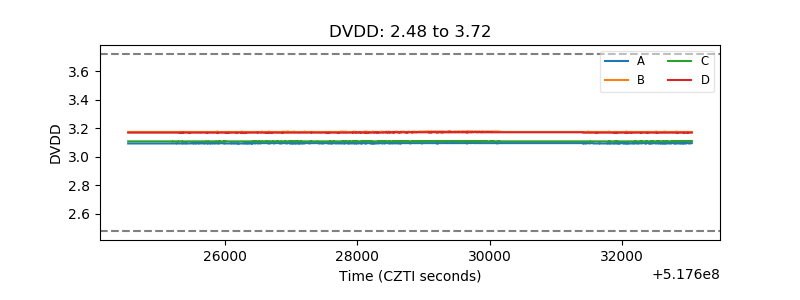

| D_VDD |  |

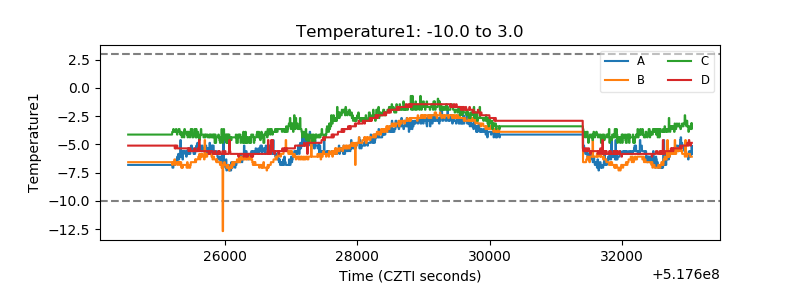

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

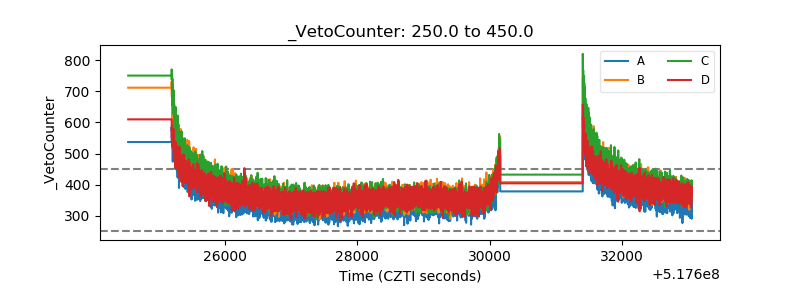

| Veto Counter |  |
