| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57700cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57700cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,658,240 | 92,096,640 |
| Size | 405.9 MB | 87.8 MB |
| Events in quadrant A | 2,841,384 | 618,864 |
| Events in quadrant B | 3,791,789 | 638,780 |
| Events in quadrant C | 4,988,849 | 564,105 |
| Events in quadrant D | 3,657,171 | 538,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12747 | 1 |
| B | 0 | 15210 | 1 |
| C | 0 | 18980 | 1 |
| D | 0 | 15092 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6136 | 35 | 0.570404% |
| B | 6137 | 321 | 5.230569% |
| C | 6137 | 426 | 6.941502% |
| D | 6137 | 218 | 3.552224% |

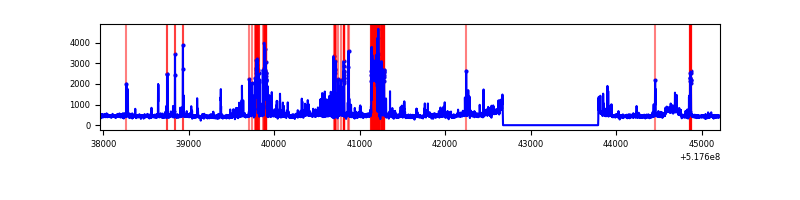

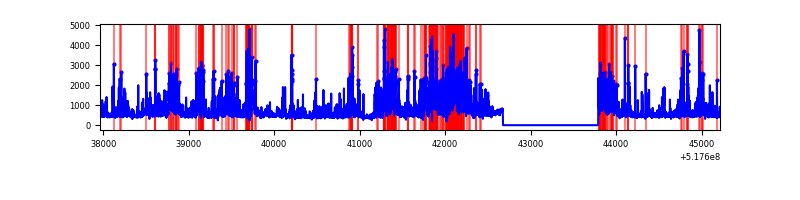

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 6137 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7252 | 6138 | 182 | 182 | 2.51% | 2.97% |  |
| C | 7252 | 6138 | 328 | 328 | 4.52% | 5.34% |  |
| D | 7252 | 6138 | 182 | 182 | 2.51% | 2.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 126335 | 757.89 | 678 | 661 | 165.8 |
| A | 3 | 128 | 30801 | 181.76 | 678 | 661 | 165.8 |
| A | 3 | 245 | 23470 | 137.55 | 678 | 661 | 165.8 |
| B | 4 | 142 | 664255 | 4756.13 | 655 | 631 | 139.5 |
| B | 4 | 80 | 283486 | 2027.19 | 655 | 631 | 139.5 |
| B | 10 | 16 | 63873 | 453.25 | 655 | 631 | 139.5 |
| C | 15 | 224 | 1433731 | 8182.41 | 650 | 644 | 175.1 |
| C | 12 | 254 | 454524 | 2591.49 | 650 | 644 | 175.1 |
| C | 12 | 2 | 216622 | 1233.16 | 650 | 644 | 175.1 |
| D | 8 | 160 | 726558 | 3944.25 | 654 | 626 | 184.0 |
| D | 8 | 240 | 185943 | 1006.89 | 654 | 626 | 184.0 |
| D | 7 | 253 | 48537 | 260.32 | 654 | 626 | 184.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

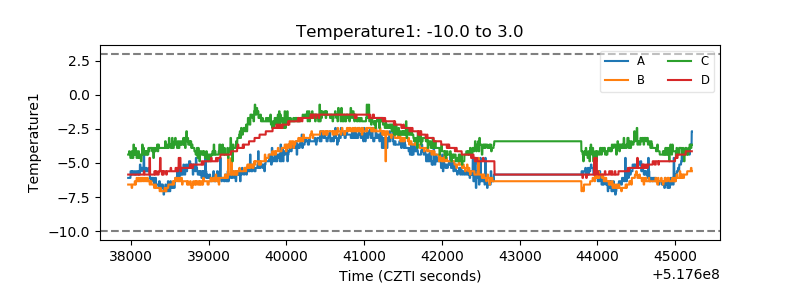

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

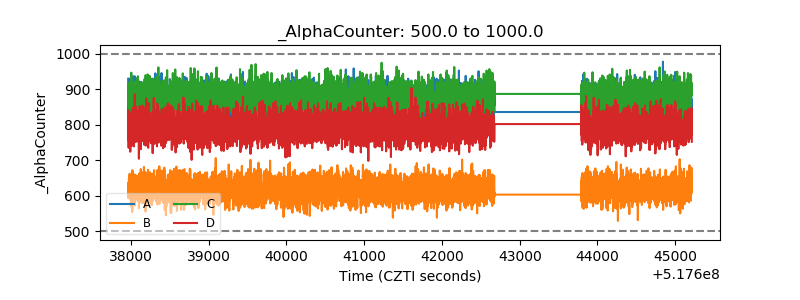

| Alpha Counter |  |

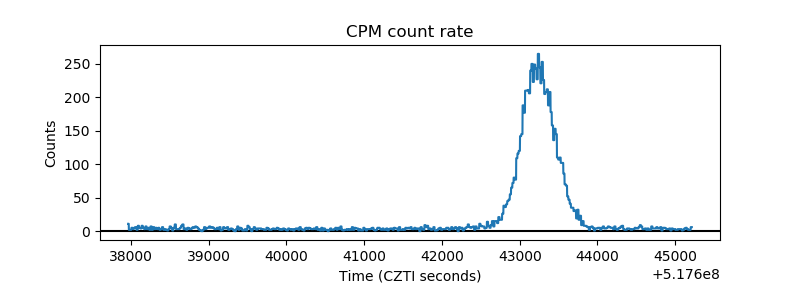

| _CPM_Rate |  |

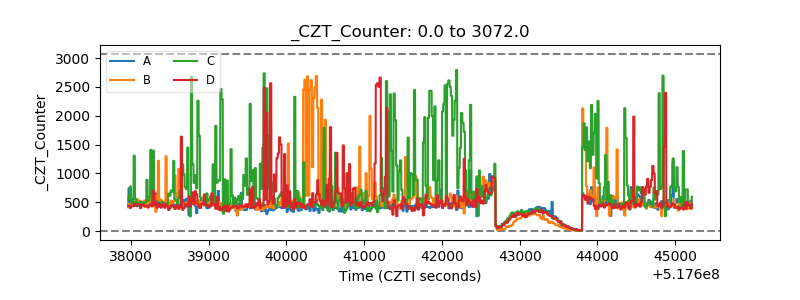

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

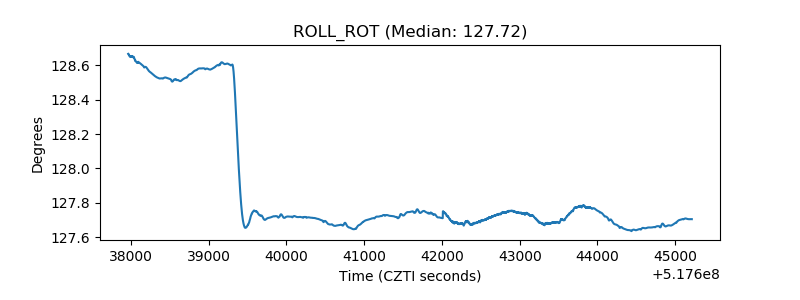

| _ROLL_ROT |  |
| _Roll_DEC |  |

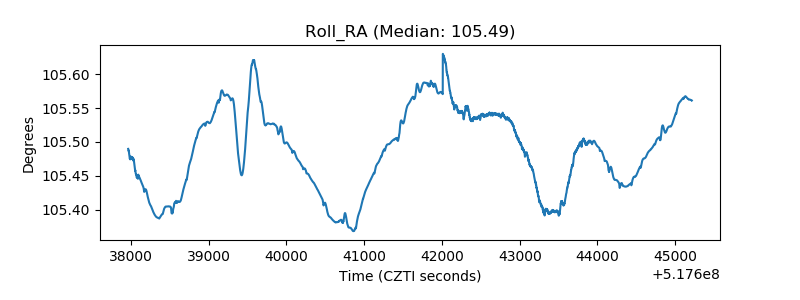

| _Roll_RA |  |
| Veto Counter |  |
