| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57708cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57708cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,147,840 | 95,224,320 |
| Size | 518.0 MB | 90.8 MB |
| Events in quadrant A | 2,894,188 | 665,006 |
| Events in quadrant B | 3,444,701 | 699,566 |
| Events in quadrant C | 8,182,591 | 489,894 |
| Events in quadrant D | 5,053,209 | 553,329 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13841 | 2 |
| B | 0 | 15082 | 3 |
| C | 0 | 29199 | 2 |
| D | 0 | 19900 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6829 | 19 | 0.278225% |
| B | 6828 | 100 | 1.464558% |
| C | 6828 | 1765 | 25.849443% |
| D | 6828 | 560 | 8.201523% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

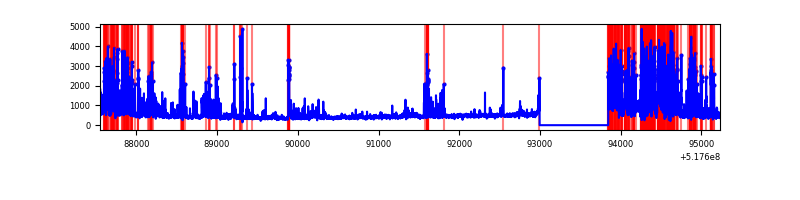

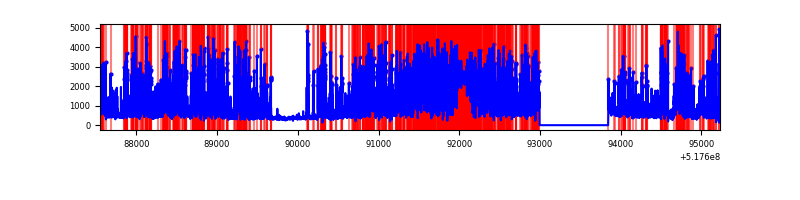

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6830 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7678 | 6829 | 36 | 36 | 0.47% | 0.53% |  |
| C | 7678 | 6829 | 1349 | 1349 | 17.57% | 19.75% |  |
| D | 7678 | 6829 | 458 | 458 | 5.97% | 6.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 137 | 9095 | 45.17 | 744 | 722 | 185.4 |
| A | 3 | 245 | 7671 | 37.48 | 744 | 722 | 185.4 |
| A | 3 | 79 | 7112 | 34.47 | 744 | 722 | 185.4 |
| B | 10 | 16 | 144406 | 917.1 | 730 | 702 | 156.7 |
| B | 0 | 155 | 125500 | 796.45 | 730 | 702 | 156.7 |
| B | 5 | 185 | 52615 | 331.3 | 730 | 702 | 156.7 |
| C | 15 | 224 | 5536731 | 32853.14 | 619 | 614 | 168.5 |
| C | 12 | 254 | 73392 | 431.89 | 619 | 614 | 168.5 |
| C | 14 | 96 | 47289 | 276.98 | 619 | 614 | 168.5 |
| D | 2 | 249 | 1314397 | 6708.34 | 686 | 657 | 195.8 |
| D | 8 | 160 | 418751 | 2134.91 | 686 | 657 | 195.8 |
| D | 2 | 31 | 169226 | 860.76 | 686 | 657 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

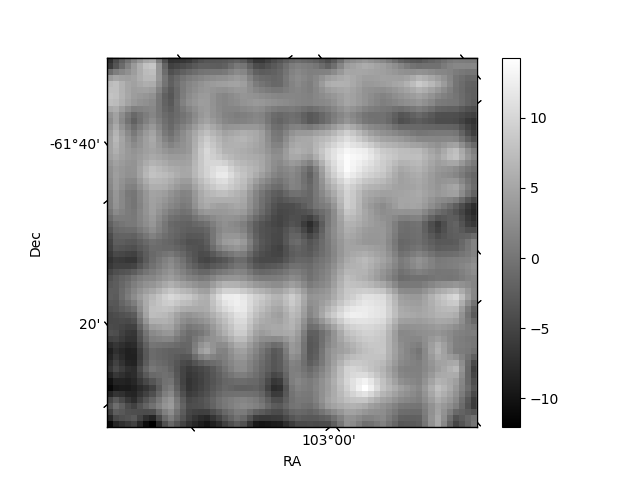

| Plot type | Count rate plots | Images |
|---|---|---|

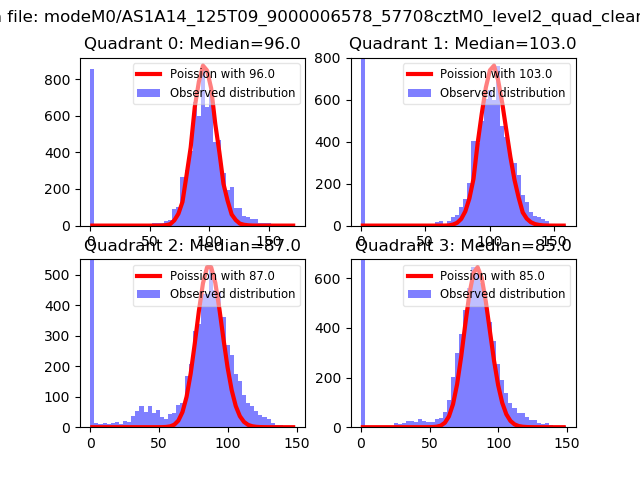

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

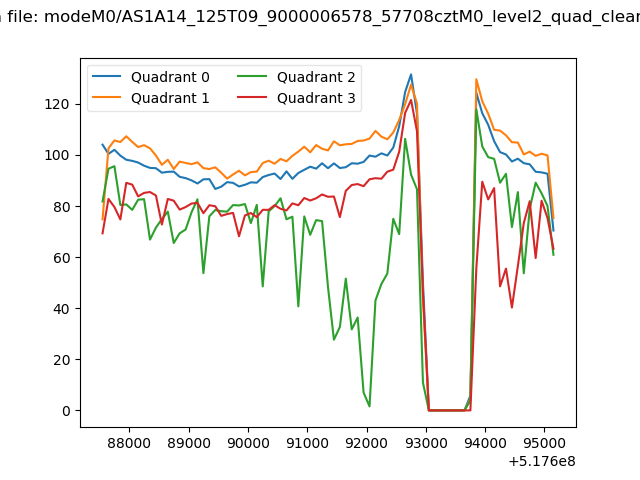

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

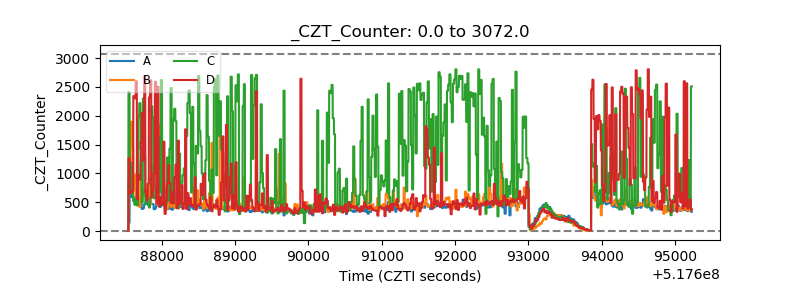

| CZT Counter |  |

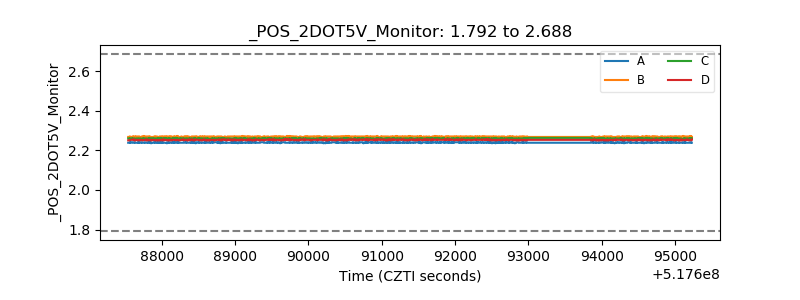

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
