| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57710cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57710cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,854,720 | 95,316,480 |
| Size | 508.2 MB | 90.9 MB |
| Events in quadrant A | 2,850,761 | 659,882 |
| Events in quadrant B | 3,171,000 | 701,056 |
| Events in quadrant C | 7,726,699 | 519,776 |
| Events in quadrant D | 5,455,552 | 538,178 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13670 | 2 |
| B | 0 | 14230 | 2 |
| C | 0 | 27648 | 2 |
| D | 0 | 21006 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6698 | 21 | 0.313526% |
| B | 6698 | 54 | 0.806211% |
| C | 6698 | 1413 | 21.095850% |
| D | 6698 | 685 | 10.226933% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6699 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7708 | 6699 | 11 | 11 | 0.14% | 0.16% |  |
| C | 7708 | 6699 | 1130 | 1130 | 14.66% | 16.87% |  |
| D | 7708 | 6699 | 604 | 604 | 7.84% | 9.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 245 | 16493 | 88.33 | 725 | 705 | 178.7 |
| A | 13 | 248 | 16085 | 86.05 | 725 | 705 | 178.7 |
| A | 3 | 137 | 8895 | 45.82 | 725 | 705 | 178.7 |
| B | 0 | 155 | 172531 | 1121.76 | 715 | 687 | 153.2 |
| B | 10 | 16 | 51664 | 332.77 | 715 | 687 | 153.2 |
| B | 0 | 213 | 23806 | 150.92 | 715 | 687 | 153.2 |
| C | 15 | 224 | 4305113 | 24884.05 | 634 | 628 | 173.0 |
| C | 12 | 254 | 799626 | 4618.97 | 634 | 628 | 173.0 |
| C | 14 | 254 | 28712 | 162.35 | 634 | 628 | 173.0 |
| D | 8 | 160 | 1616665 | 8543.81 | 663 | 631 | 189.1 |
| D | 2 | 249 | 846656 | 4472.85 | 663 | 631 | 189.1 |
| D | 2 | 153 | 101469 | 533.12 | 663 | 631 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

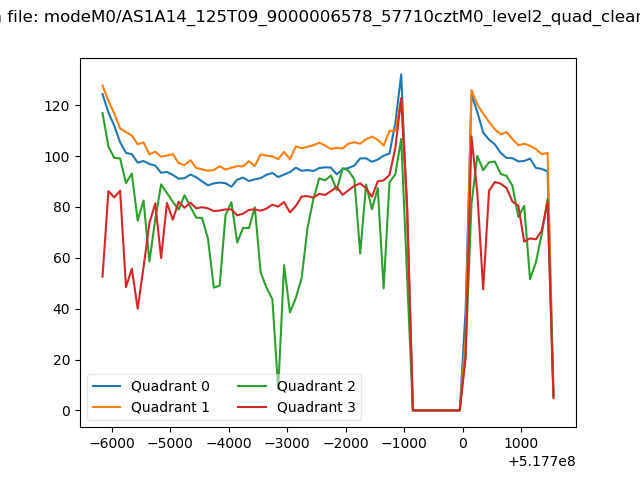

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

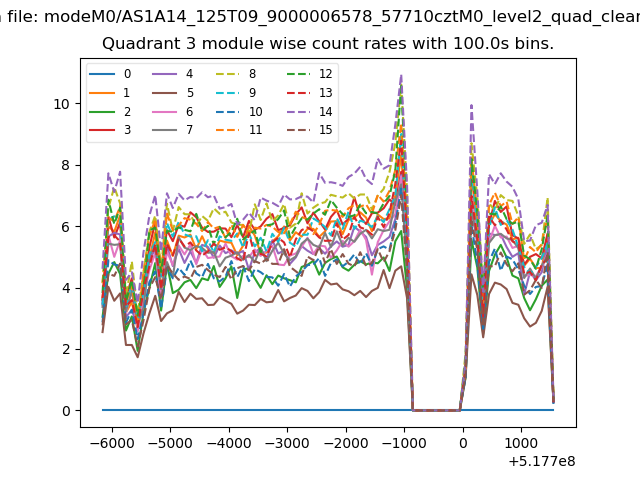

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

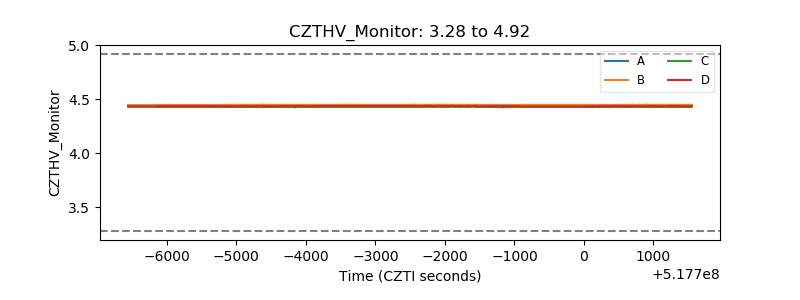

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

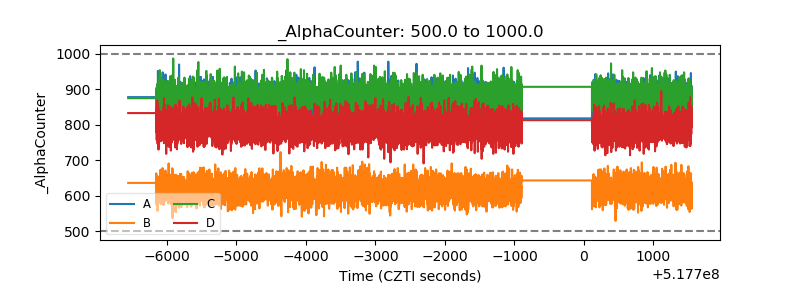

| Alpha Counter |  |

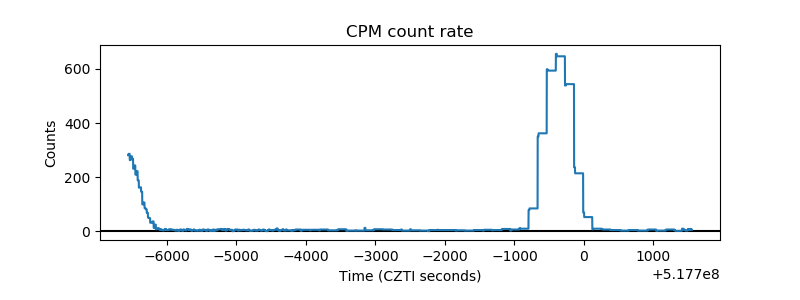

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

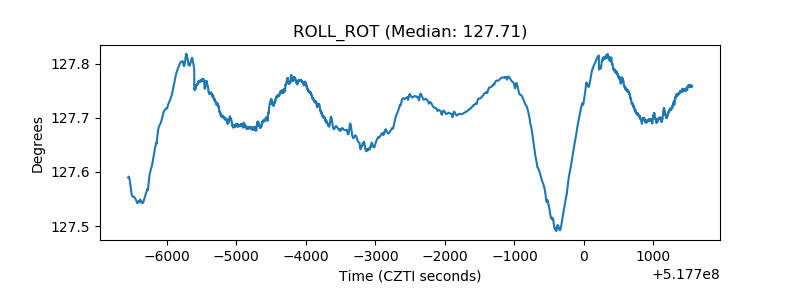

| _ROLL_ROT |  |
| _Roll_DEC |  |

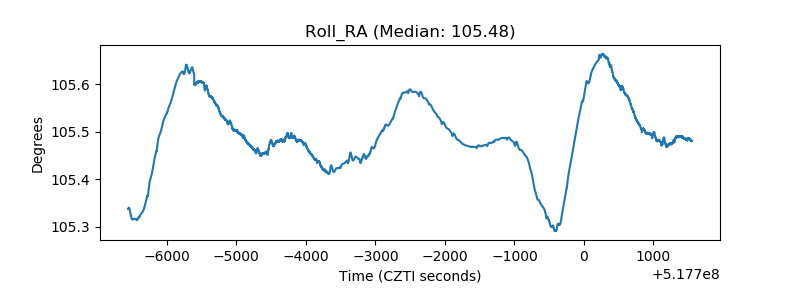

| _Roll_RA |  |
| Veto Counter |  |
