| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57711cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57711cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,590,080 | 91,010,880 |
| Size | 503.1 MB | 86.8 MB |
| Events in quadrant A | 2,728,160 | 633,388 |
| Events in quadrant B | 3,211,744 | 673,126 |
| Events in quadrant C | 7,343,904 | 496,860 |
| Events in quadrant D | 5,753,532 | 510,258 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12895 | 2 |
| B | 0 | 14012 | 2 |
| C | 0 | 26181 | 2 |
| D | 0 | 21492 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6336 | 10 | 0.157828% |
| B | 6336 | 112 | 1.767677% |
| C | 6336 | 1386 | 21.875000% |
| D | 6336 | 693 | 10.937500% |

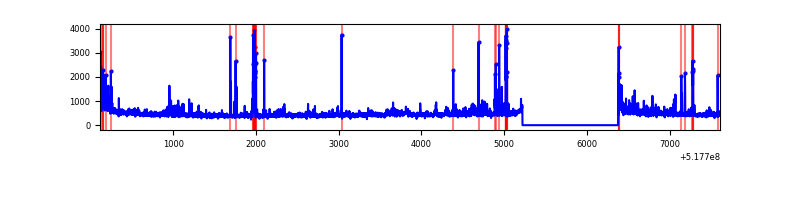

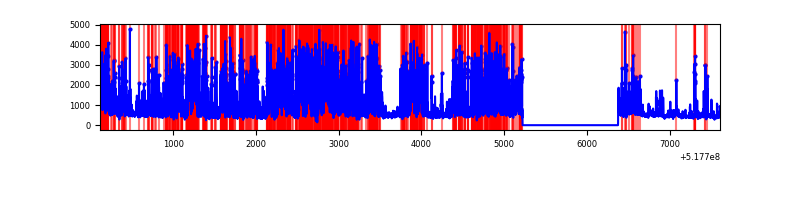

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7492 | 6337 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7492 | 6337 | 51 | 51 | 0.68% | 0.80% |  |
| C | 7492 | 6337 | 1099 | 1099 | 14.67% | 17.34% |  |
| D | 7492 | 6337 | 665 | 665 | 8.88% | 10.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 25911 | 149.54 | 690 | 673 | 168.8 |
| A | 8 | 6 | 12597 | 70.65 | 690 | 673 | 168.8 |
| A | 3 | 128 | 9231 | 50.71 | 690 | 673 | 168.8 |
| B | 0 | 155 | 113447 | 776.15 | 680 | 652 | 145.3 |
| B | 0 | 213 | 68477 | 466.71 | 680 | 652 | 145.3 |
| B | 10 | 16 | 58214 | 396.09 | 680 | 652 | 145.3 |
| C | 15 | 224 | 4320493 | 25925.65 | 606 | 599 | 166.6 |
| C | 12 | 254 | 495751 | 2971.63 | 606 | 599 | 166.6 |
| C | 14 | 254 | 39794 | 235.23 | 606 | 599 | 166.6 |
| D | 8 | 160 | 2777598 | 15373.43 | 633 | 602 | 180.6 |
| D | 2 | 153 | 289211 | 1597.74 | 633 | 602 | 180.6 |
| D | 2 | 249 | 83829 | 460.74 | 633 | 602 | 180.6 |

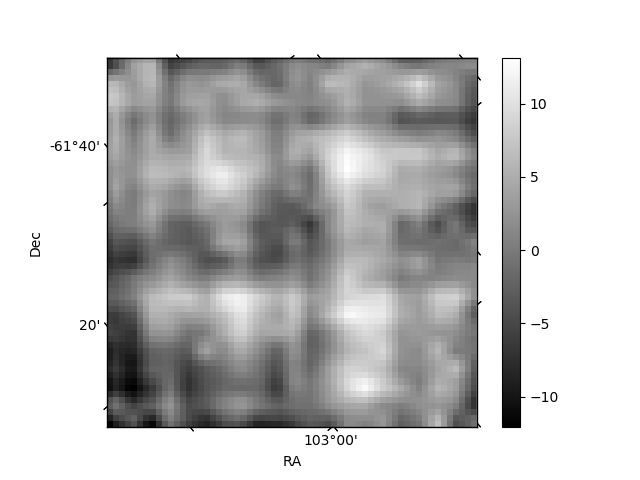

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

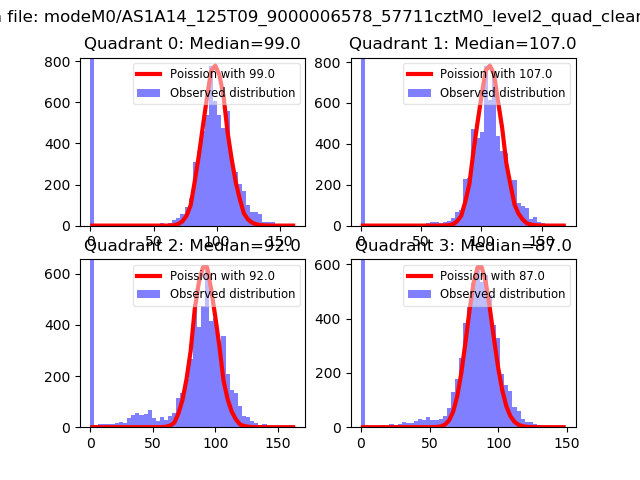

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

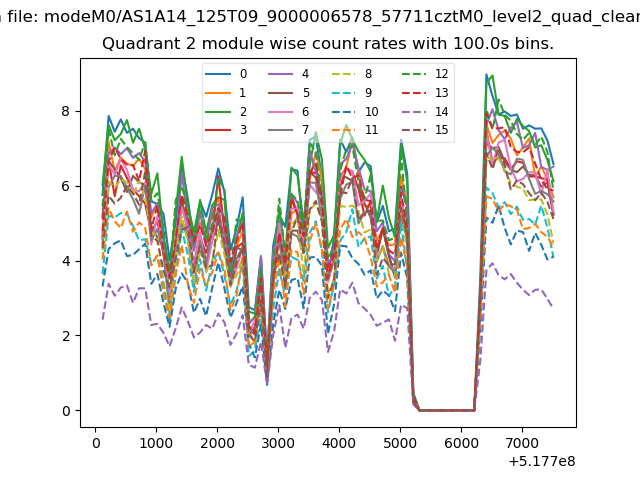

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

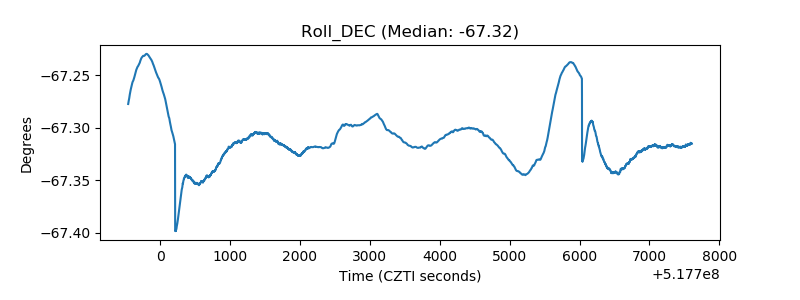

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
