| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57713cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57713cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,214,400 | 102,873,600 |
| Size | 461.8 MB | 98.1 MB |
| Events in quadrant A | 3,148,503 | 699,122 |
| Events in quadrant B | 3,489,955 | 745,199 |
| Events in quadrant C | 6,593,829 | 596,077 |
| Events in quadrant D | 4,169,139 | 606,156 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13979 | 2 |
| B | 0 | 14887 | 2 |
| C | 0 | 24189 | 2 |
| D | 0 | 16887 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6722 | 65 | 0.966974% |
| B | 6723 | 205 | 3.049234% |
| C | 6723 | 976 | 14.517329% |
| D | 6723 | 237 | 3.525212% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

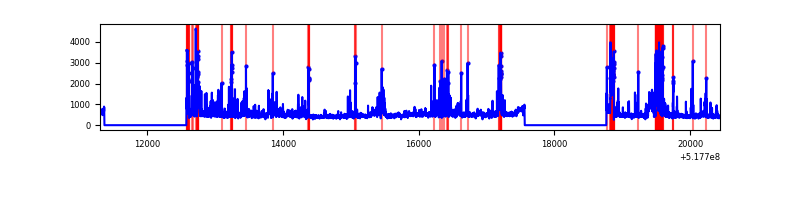

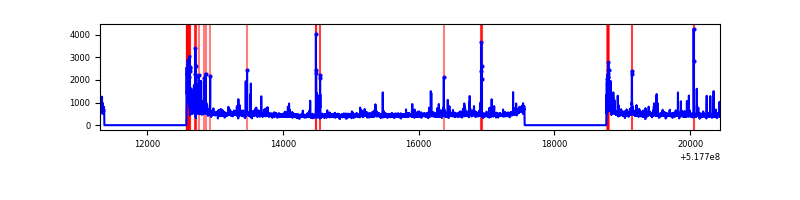

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9137 | 6724 | 15 | 15 | 0.16% | 0.22% |  |
| B | 9138 | 6725 | 46 | 46 | 0.50% | 0.68% |  |
| C | 9138 | 6725 | 681 | 681 | 7.45% | 10.13% |  |
| D | 9138 | 6725 | 172 | 172 | 1.88% | 2.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 31 | 89559 | 472.82 | 761 | 741 | 187.8 |
| A | 14 | 254 | 46487 | 243.52 | 761 | 741 | 187.8 |
| A | 3 | 128 | 31294 | 162.65 | 761 | 741 | 187.8 |
| B | 10 | 16 | 215984 | 1358.76 | 749 | 721 | 158.4 |
| B | 0 | 213 | 77233 | 482.95 | 749 | 721 | 158.4 |
| B | 5 | 172 | 59517 | 371.13 | 749 | 721 | 158.4 |
| C | 15 | 224 | 2878731 | 15146.86 | 705 | 699 | 190.0 |
| C | 12 | 254 | 384152 | 2018.08 | 705 | 699 | 190.0 |
| C | 6 | 223 | 214151 | 1123.38 | 705 | 699 | 190.0 |
| D | 8 | 160 | 620665 | 3058.02 | 729 | 699 | 202.7 |
| D | 8 | 240 | 208065 | 1022.85 | 729 | 699 | 202.7 |
| D | 3 | 12 | 155196 | 762.07 | 729 | 699 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

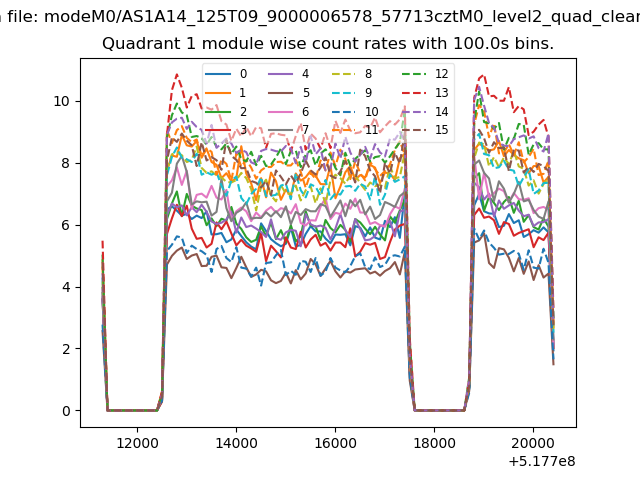

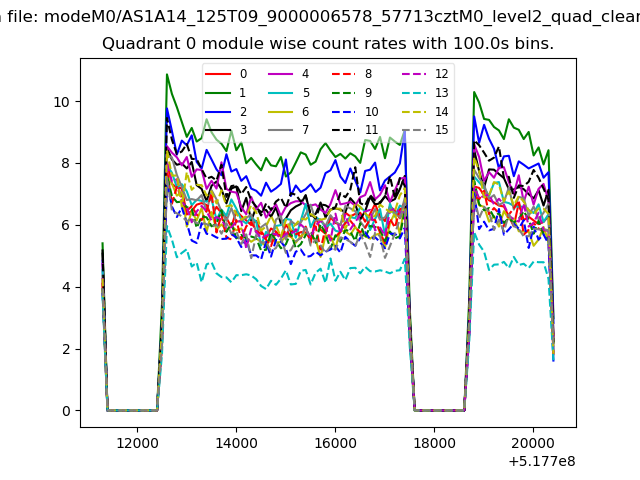

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

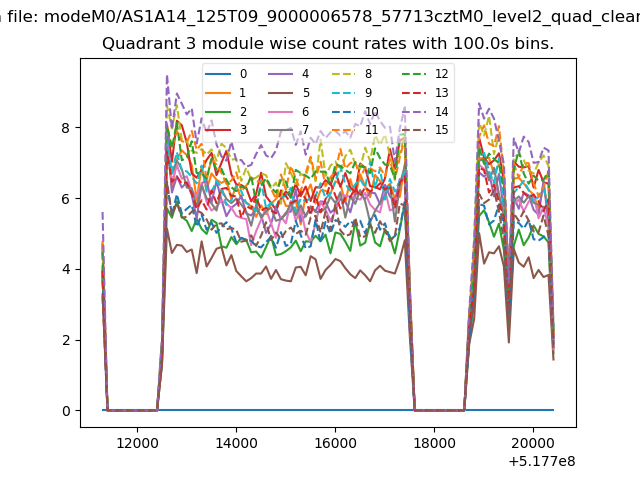

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

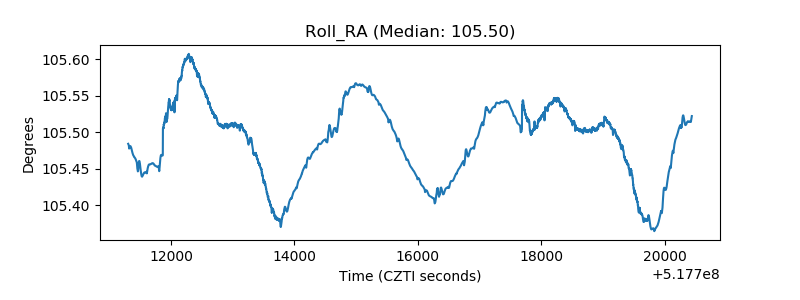

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

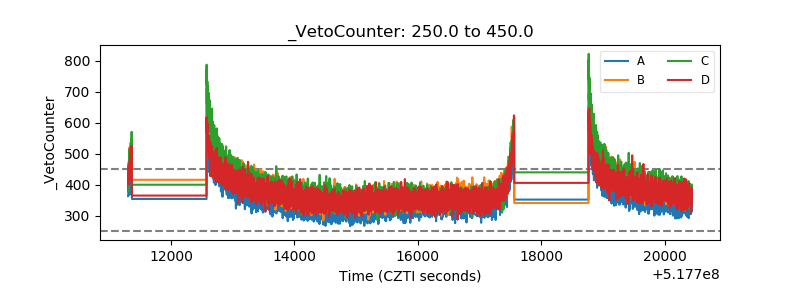

| Veto Counter |  |
