| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T09_9000006578_57718cztM0_level2.fits | modeM0/AS1A14_125T09_9000006578_57718cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,477,120 | 98,444,160 |
| Size | 675.7 MB | 93.9 MB |
| Events in quadrant A | 3,256,006 | 700,351 |
| Events in quadrant B | 7,053,840 | 648,278 |
| Events in quadrant C | 10,394,034 | 509,190 |
| Events in quadrant D | 4,950,672 | 610,312 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15061 | 0 |
| B | 0 | 25803 | 0 |
| C | 0 | 36016 | 0 |
| D | 0 | 19627 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7364 | 20 | 0.271592% |
| B | 7365 | 1232 | 16.727766% |
| C | 7365 | 2152 | 29.219280% |
| D | 7364 | 277 | 3.761543% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7364 | 7364 | 17 | 17 | 0.23% | 0.23% |  |
| B | 7365 | 7365 | 973 | 973 | 13.21% | 13.21% |  |
| C | 7365 | 7365 | 1770 | 1770 | 24.03% | 24.03% |  |
| D | 7364 | 7364 | 274 | 274 | 3.72% | 3.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 90468 | 459.72 | 788 | 767 | 195.1 |
| A | 3 | 128 | 78275 | 397.23 | 788 | 767 | 195.1 |
| A | 10 | 251 | 17164 | 84.03 | 788 | 767 | 195.1 |
| B | 4 | 171 | 1850110 | 11858.48 | 730 | 704 | 156.0 |
| B | 4 | 80 | 1493667 | 9572.95 | 730 | 704 | 156.0 |
| B | 4 | 142 | 478728 | 3065.11 | 730 | 704 | 156.0 |
| C | 15 | 224 | 4551991 | 24705.89 | 672 | 666 | 184.2 |
| C | 12 | 254 | 2399681 | 13022.54 | 672 | 666 | 184.2 |
| C | 12 | 252 | 437463 | 2371.06 | 672 | 666 | 184.2 |
| D | 8 | 160 | 583185 | 2743.37 | 754 | 720 | 212.3 |
| D | 3 | 12 | 464463 | 2184.2 | 754 | 720 | 212.3 |
| D | 3 | 224 | 395270 | 1858.3 | 754 | 720 | 212.3 |

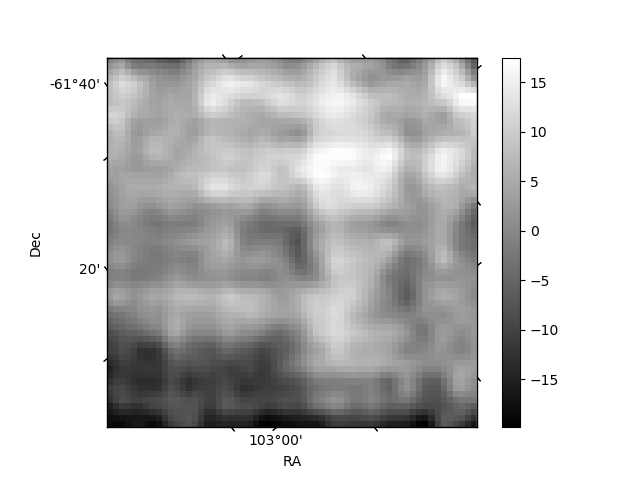

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

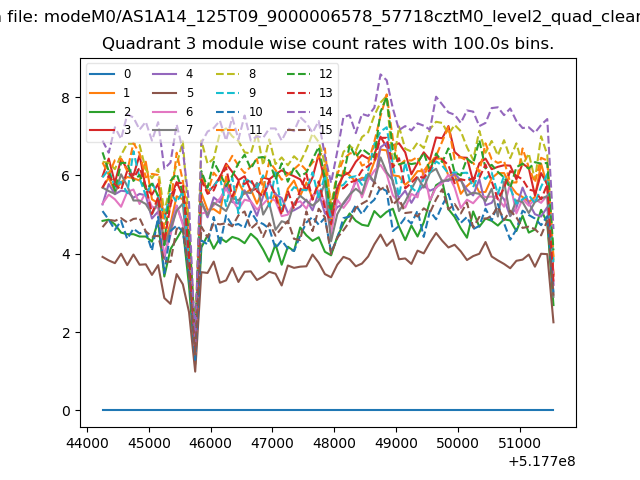

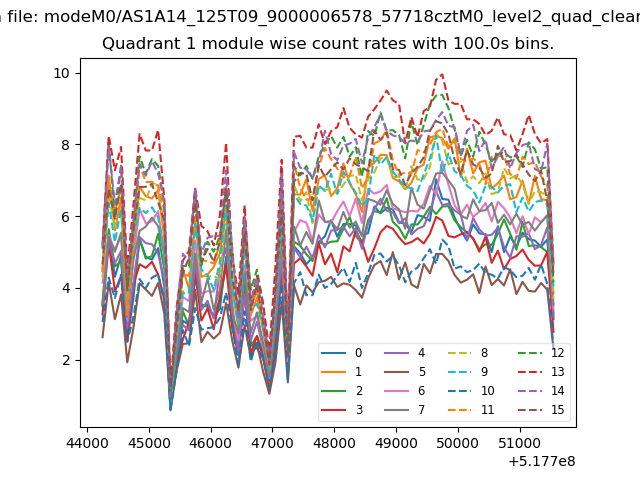

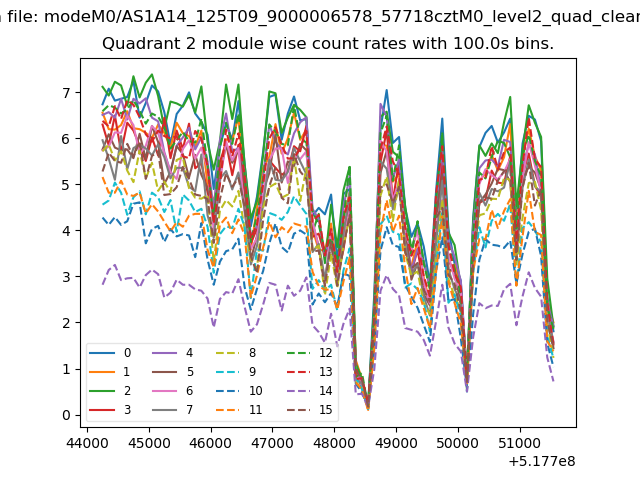

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

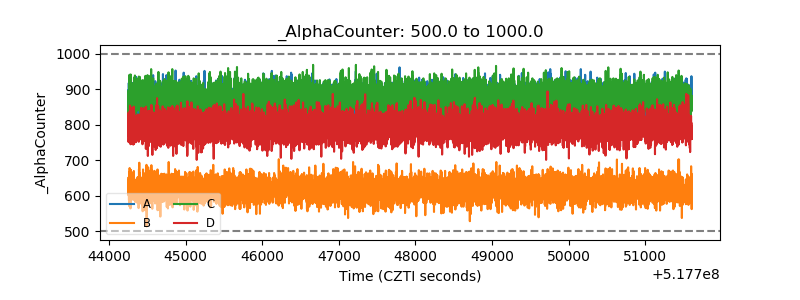

| Alpha Counter |  |
| _CPM_Rate |  |

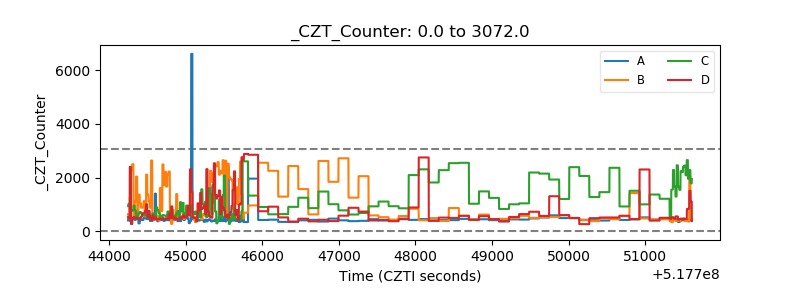

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

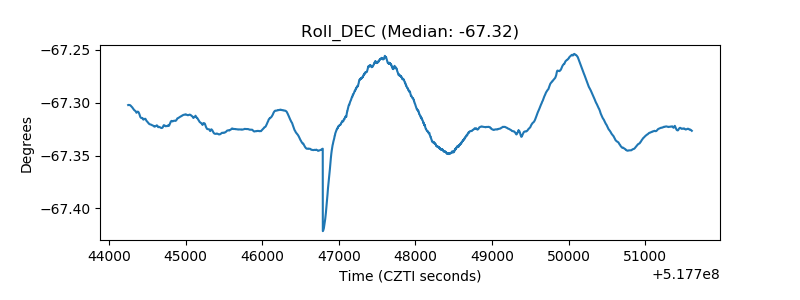

| _Roll_DEC |  |
| _Roll_RA |  |

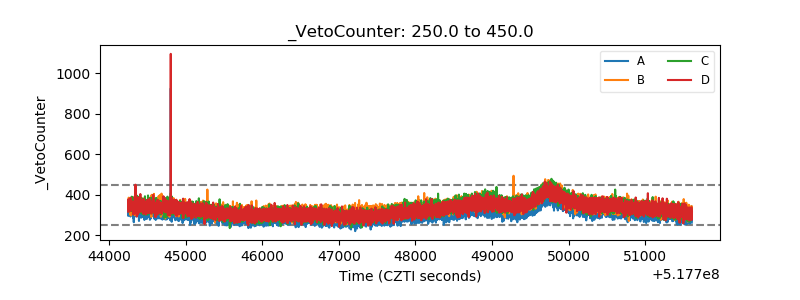

| Veto Counter |  |
