| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57744cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57744cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,692,800 | 84,795,840 |
| Size | 431.7 MB | 80.9 MB |
| Events in quadrant A | 3,268,204 | 574,905 |
| Events in quadrant B | 2,900,411 | 613,477 |
| Events in quadrant C | 7,230,253 | 451,564 |
| Events in quadrant D | 2,897,401 | 513,728 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13811 | 1 |
| B | 0 | 12723 | 1 |
| C | 0 | 25691 | 1 |
| D | 0 | 12980 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5924 | 117 | 1.975017% |
| B | 5925 | 157 | 2.649789% |
| C | 5925 | 1291 | 21.789030% |
| D | 5925 | 97 | 1.637131% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

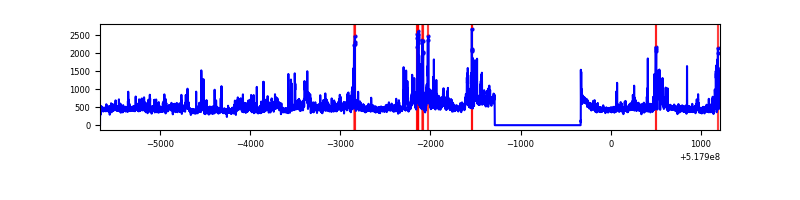

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6879 | 5925 | 31 | 31 | 0.45% | 0.52% |  |
| B | 6880 | 5926 | 32 | 32 | 0.47% | 0.54% |  |
| C | 6880 | 5926 | 1156 | 1156 | 16.80% | 19.51% |  |
| D | 6879 | 5925 | 30 | 30 | 0.44% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 160 | 519647 | 3356.35 | 634 | 618 | 154.6 |
| A | 13 | 248 | 125417 | 807.02 | 634 | 618 | 154.6 |
| A | 3 | 128 | 82533 | 529.71 | 634 | 618 | 154.6 |
| B | 5 | 185 | 112958 | 839.09 | 629 | 606 | 133.9 |
| B | 0 | 63 | 112300 | 834.17 | 629 | 606 | 133.9 |
| B | 10 | 247 | 65544 | 484.98 | 629 | 606 | 133.9 |
| C | 9 | 38 | 3693489 | 23952.94 | 568 | 562 | 154.2 |
| C | 15 | 224 | 969940 | 6287.55 | 568 | 562 | 154.2 |
| C | 12 | 249 | 123234 | 795.67 | 568 | 562 | 154.2 |
| D | 3 | 12 | 105722 | 602.93 | 619 | 589 | 174.4 |
| D | 2 | 249 | 87295 | 497.25 | 619 | 589 | 174.4 |
| D | 2 | 31 | 79301 | 451.41 | 619 | 589 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

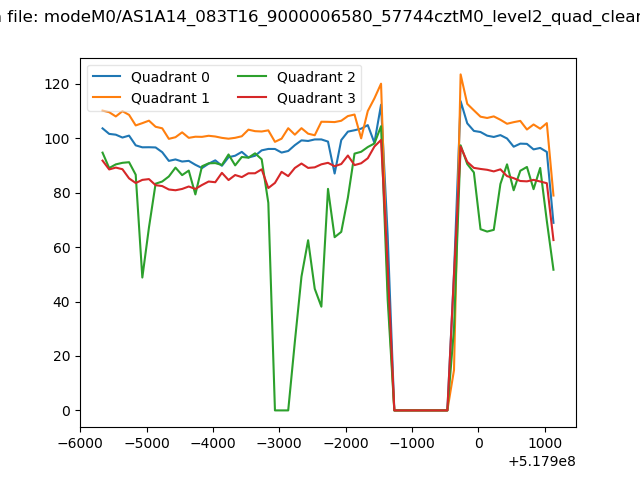

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

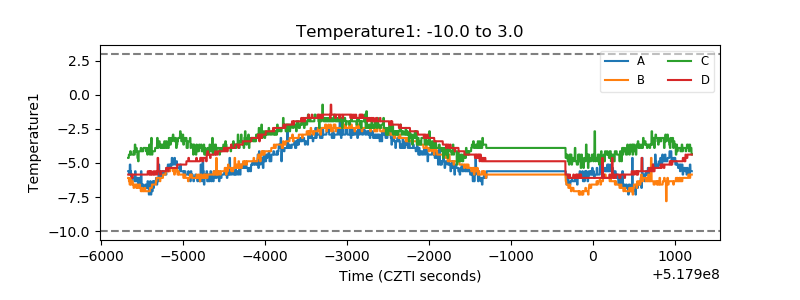

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

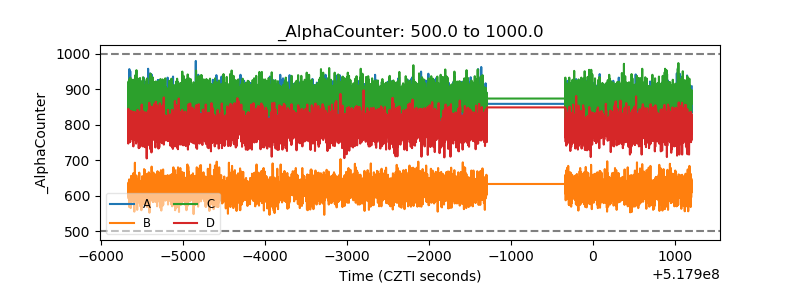

| Alpha Counter |  |

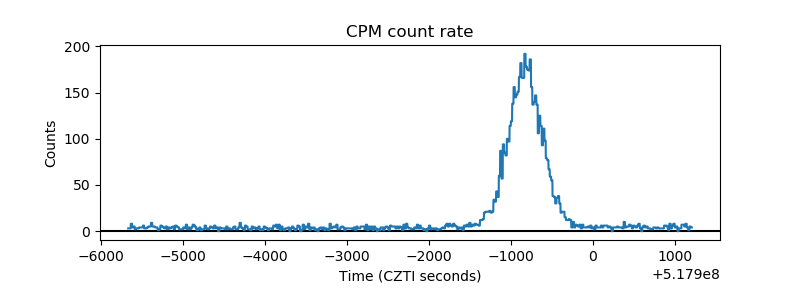

| _CPM_Rate |  |

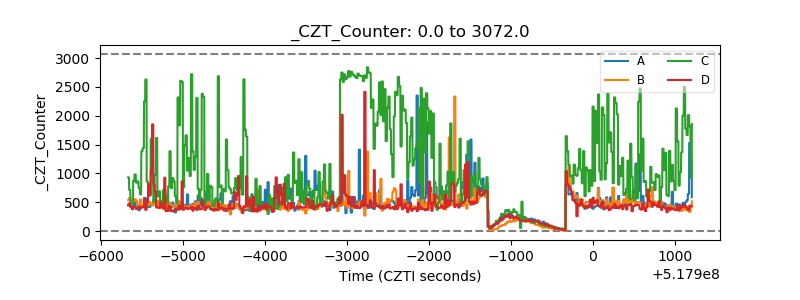

| CZT Counter |  |

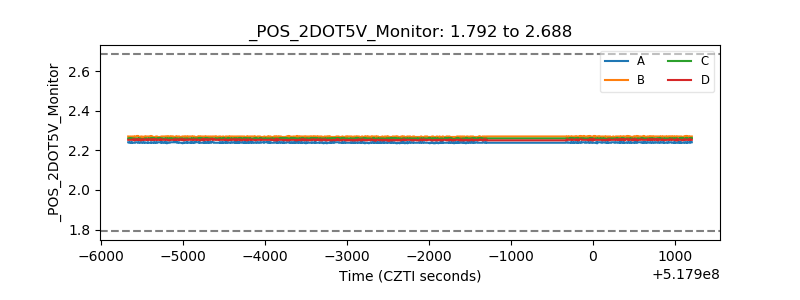

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

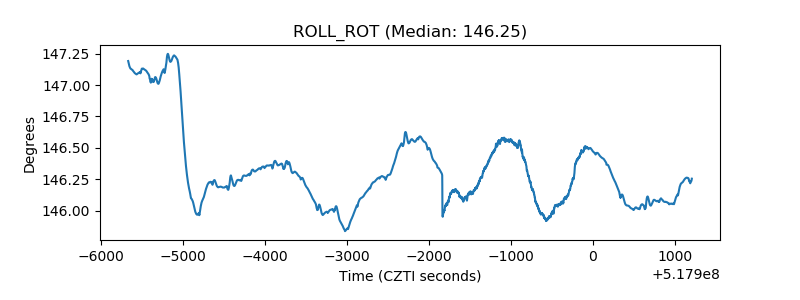

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
