| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57751cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57751cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,878,024,960 | 347,002,560 |
| Size | 1.7 GB | 330.9 MB |
| Events in quadrant A | 11,177,253 | 2,344,809 |
| Events in quadrant B | 14,403,198 | 2,453,975 |
| Events in quadrant C | 27,492,360 | 1,923,748 |
| Events in quadrant D | 14,532,805 | 2,080,178 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 502 | 0 |
| B | 0 | 502 | 0 |
| C | 0 | 502 | 0 |
| D | 0 | 502 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51155 | 5 |
| B | 0 | 59987 | 5 |
| C | 0 | 98851 | 3 |
| D | 0 | 60516 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24750 | 177 | 0.715152% |
| B | 24750 | 844 | 3.410101% |
| C | 24751 | 4419 | 17.853824% |
| D | 24751 | 623 | 2.517070% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26231 | 24754 | 36 | 36 | 0.14% | 0.15% |  |
| B | 26231 | 24754 | 410 | 410 | 1.56% | 1.66% |  |

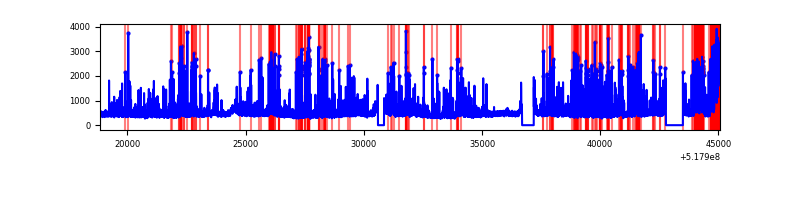

| C | 26231 | 24753 | 3620 | 3620 | 13.80% | 14.62% |  |
| D | 26231 | 24754 | 581 | 581 | 2.21% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 160 | 286710 | 438.92 | 2641 | 2576 | 647.3 |
| A | 3 | 128 | 210544 | 321.26 | 2641 | 2576 | 647.3 |
| A | 3 | 17 | 135042 | 204.63 | 2641 | 2576 | 647.3 |
| B | 8 | 128 | 1571937 | 2868.03 | 2583 | 2489 | 547.2 |
| B | 4 | 171 | 971460 | 1770.71 | 2583 | 2489 | 547.2 |
| B | 10 | 247 | 363403 | 659.54 | 2583 | 2489 | 547.2 |
| C | 15 | 224 | 11551828 | 18030.97 | 2380 | 2353 | 640.5 |
| C | 9 | 38 | 4722304 | 7368.76 | 2380 | 2353 | 640.5 |
| C | 14 | 254 | 506857 | 787.63 | 2380 | 2353 | 640.5 |
| D | 2 | 153 | 1508963 | 2095.16 | 2549 | 2435 | 719.1 |
| D | 2 | 249 | 563660 | 780.51 | 2549 | 2435 | 719.1 |
| D | 3 | 12 | 546329 | 756.4 | 2549 | 2435 | 719.1 |

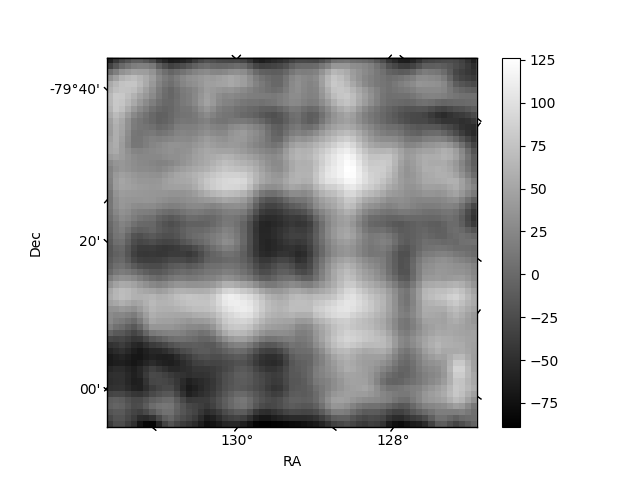

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

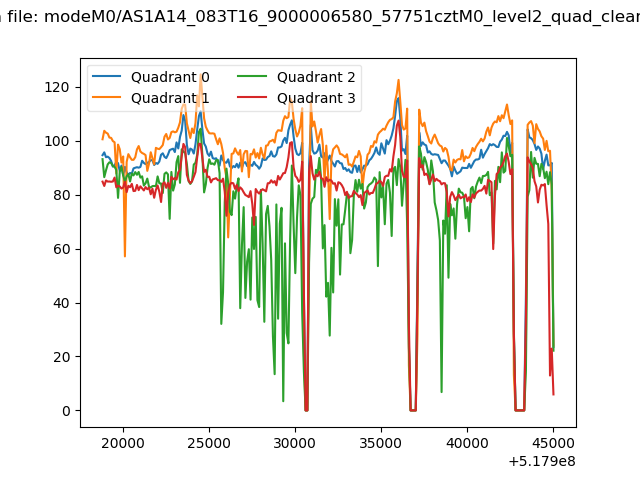

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

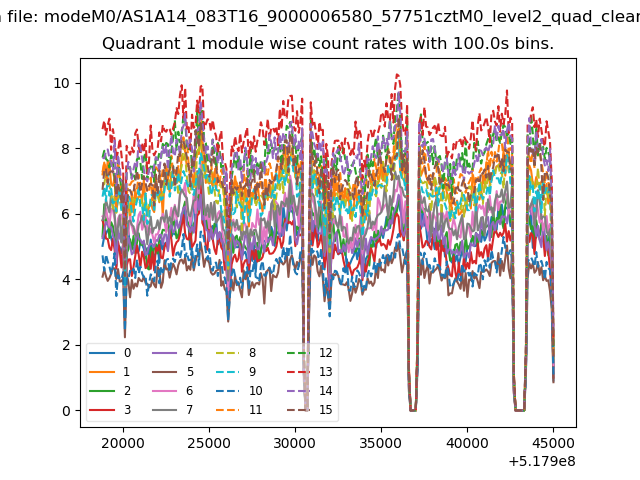

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

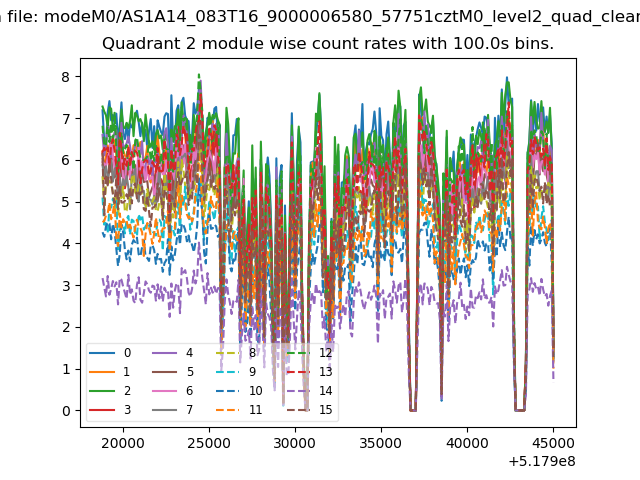

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

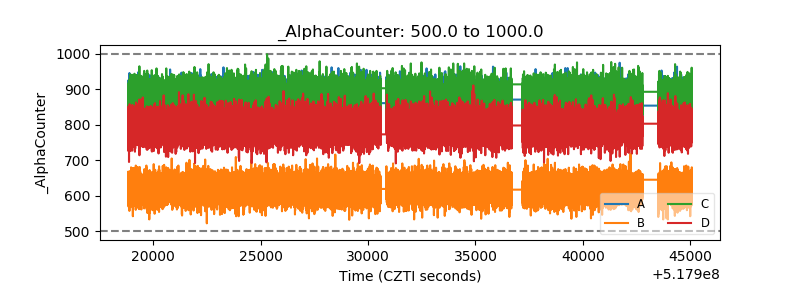

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

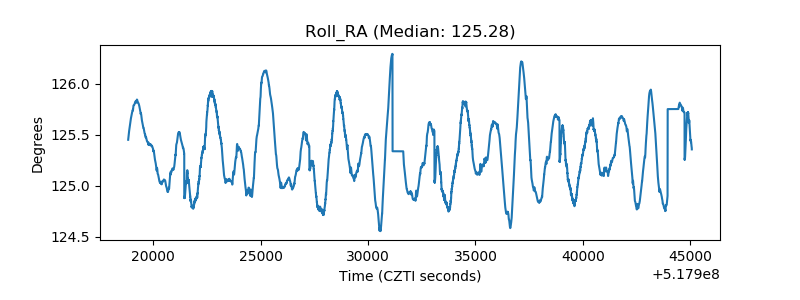

| _Roll_RA |  |

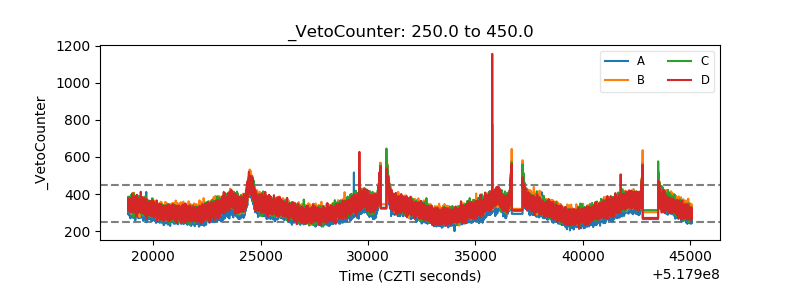

| Veto Counter |  |
