| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57755cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57755cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,614,400 | 95,316,480 |
| Size | 389.7 MB | 90.9 MB |
| Events in quadrant A | 2,788,168 | 638,287 |
| Events in quadrant B | 3,637,039 | 662,449 |
| Events in quadrant C | 4,617,260 | 573,039 |
| Events in quadrant D | 3,583,144 | 564,274 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13118 | 2 |
| B | 0 | 15328 | 2 |
| C | 0 | 18286 | 2 |
| D | 0 | 15237 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6424 | 25 | 0.389166% |
| B | 6425 | 238 | 3.704280% |
| C | 6425 | 409 | 6.365759% |
| D | 6425 | 92 | 1.431907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

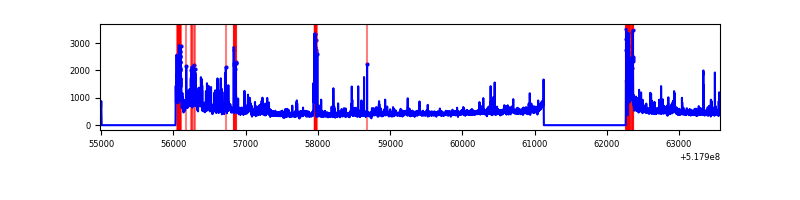

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8584 | 6426 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8585 | 6427 | 86 | 86 | 1.00% | 1.34% |  |
| C | 8585 | 6427 | 317 | 317 | 3.69% | 4.93% |  |
| D | 8585 | 6427 | 72 | 72 | 0.84% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 50470 | 291.26 | 689 | 673 | 171.0 |
| A | 3 | 61 | 19806 | 111.91 | 689 | 673 | 171.0 |
| A | 7 | 160 | 16968 | 95.31 | 689 | 673 | 171.0 |
| B | 10 | 16 | 191841 | 1342.97 | 676 | 652 | 142.4 |
| B | 4 | 80 | 190817 | 1335.77 | 676 | 652 | 142.4 |
| B | 5 | 185 | 142648 | 997.42 | 676 | 652 | 142.4 |
| C | 15 | 224 | 1212705 | 6779.69 | 651 | 645 | 178.8 |
| C | 9 | 38 | 690180 | 3856.93 | 651 | 645 | 178.8 |
| C | 15 | 208 | 59588 | 329.7 | 651 | 645 | 178.8 |
| D | 8 | 240 | 276626 | 1469.39 | 657 | 624 | 187.8 |
| D | 3 | 12 | 228743 | 1214.47 | 657 | 624 | 187.8 |
| D | 2 | 153 | 131862 | 698.69 | 657 | 624 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

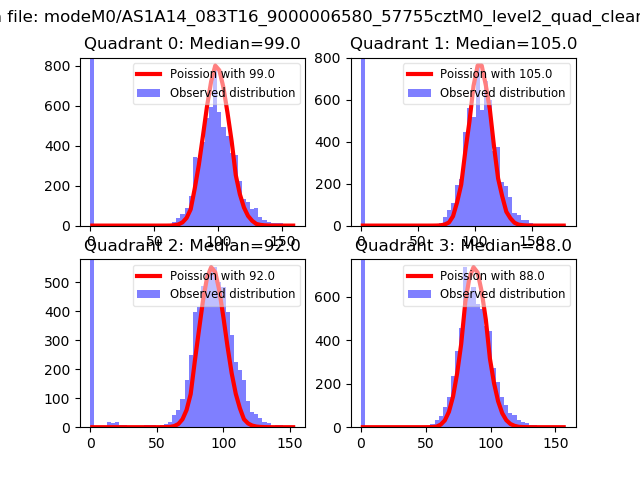

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

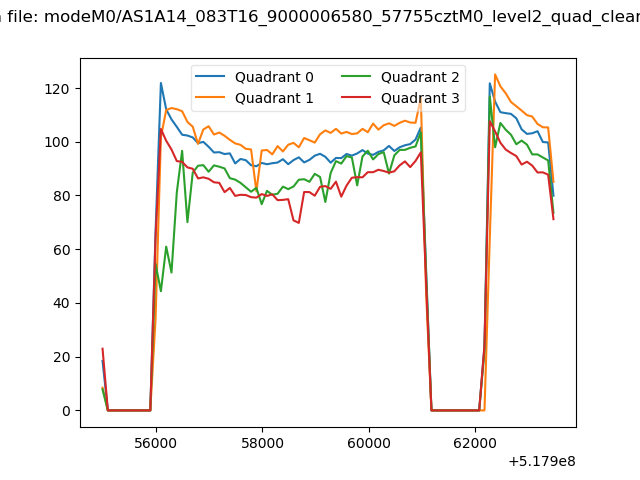

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

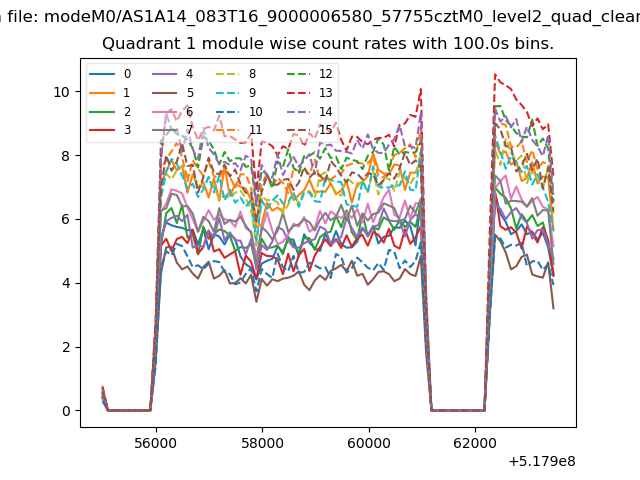

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

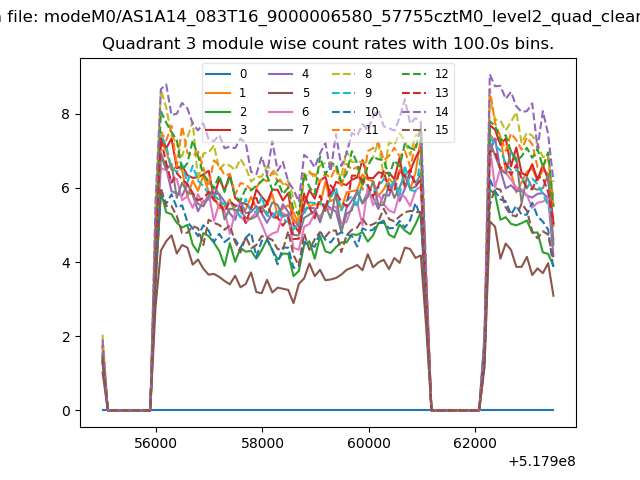

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

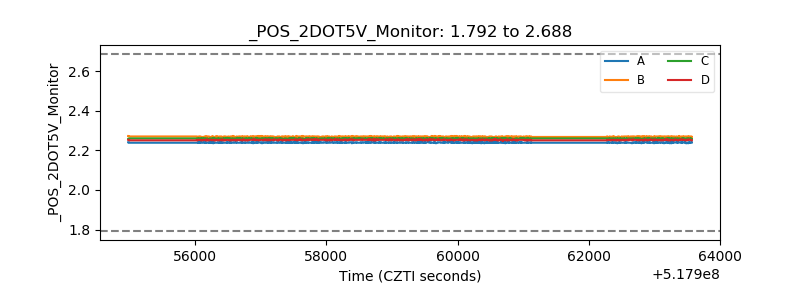

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

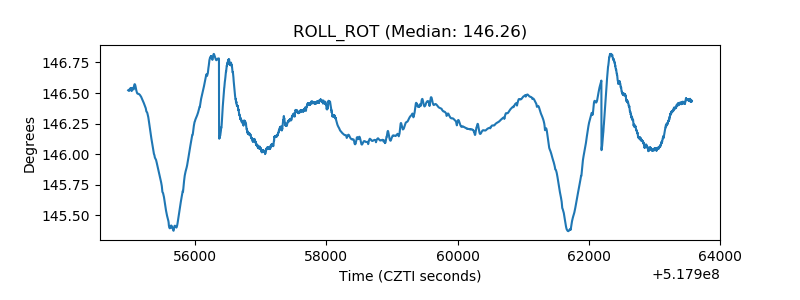

| _ROLL_ROT |  |

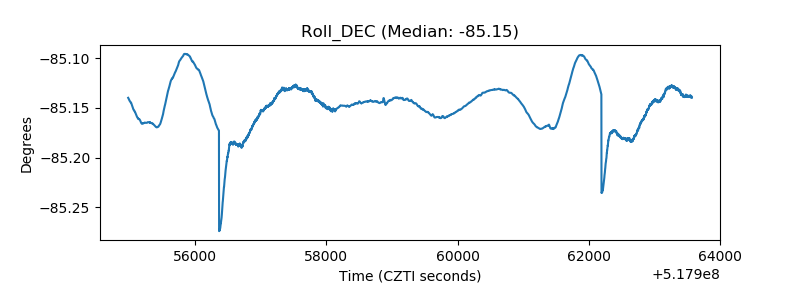

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
