| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57766cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57766cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,026,240 | 97,237,440 |
| Size | 493.1 MB | 92.7 MB |
| Events in quadrant A | 4,050,271 | 631,686 |
| Events in quadrant B | 4,455,121 | 681,097 |
| Events in quadrant C | 5,732,202 | 590,803 |
| Events in quadrant D | 4,372,151 | 564,875 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16792 | 2 |
| B | 0 | 17933 | 2 |
| C | 0 | 21772 | 2 |
| D | 0 | 17873 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6818 | 277 | 4.062775% |
| B | 6818 | 201 | 2.948079% |
| C | 6818 | 412 | 6.042828% |
| D | 6818 | 256 | 3.754767% |

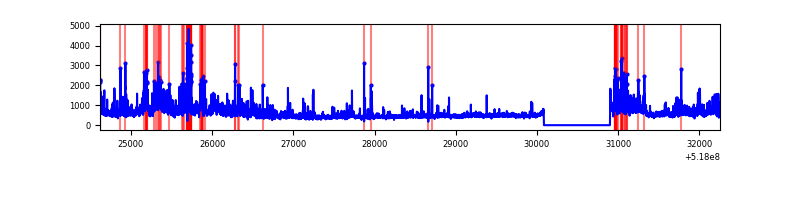

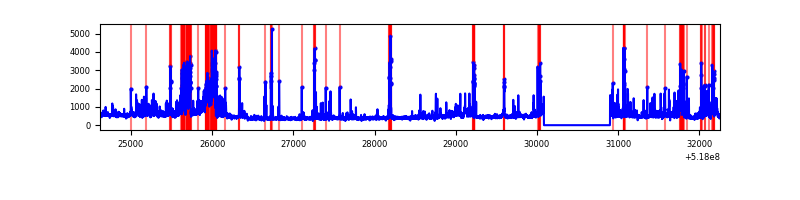

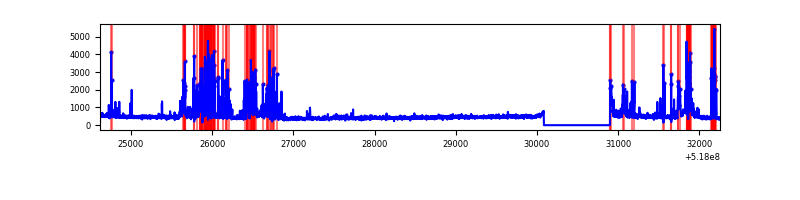

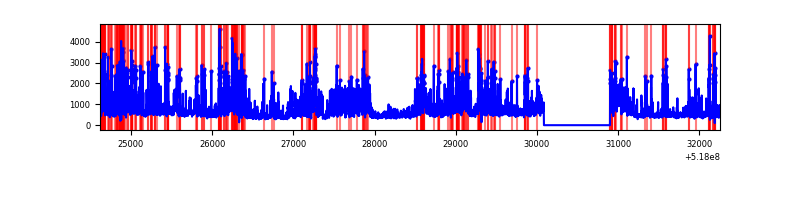

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6819 | 181 | 181 | 2.37% | 2.65% |  |
| B | 7633 | 6819 | 86 | 86 | 1.13% | 1.26% |  |
| C | 7633 | 6819 | 329 | 329 | 4.31% | 4.82% |  |
| D | 7633 | 6819 | 236 | 236 | 3.09% | 3.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 860970 | 4832.63 | 719 | 701 | 178.0 |
| A | 3 | 14 | 229961 | 1287.89 | 719 | 701 | 178.0 |
| A | 3 | 61 | 135530 | 757.41 | 719 | 701 | 178.0 |
| B | 4 | 80 | 640493 | 4209.71 | 716 | 690 | 152.0 |
| B | 5 | 185 | 453317 | 2978.15 | 716 | 690 | 152.0 |
| B | 4 | 171 | 191027 | 1252.36 | 716 | 690 | 152.0 |
| C | 9 | 38 | 1357081 | 7187.76 | 685 | 677 | 188.7 |
| C | 15 | 224 | 1271470 | 6734.09 | 685 | 677 | 188.7 |
| C | 12 | 252 | 261579 | 1382.55 | 685 | 677 | 188.7 |
| D | 2 | 249 | 592225 | 3030.0 | 690 | 660 | 195.2 |
| D | 3 | 12 | 316669 | 1618.6 | 690 | 660 | 195.2 |
| D | 2 | 153 | 214513 | 1095.35 | 690 | 660 | 195.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

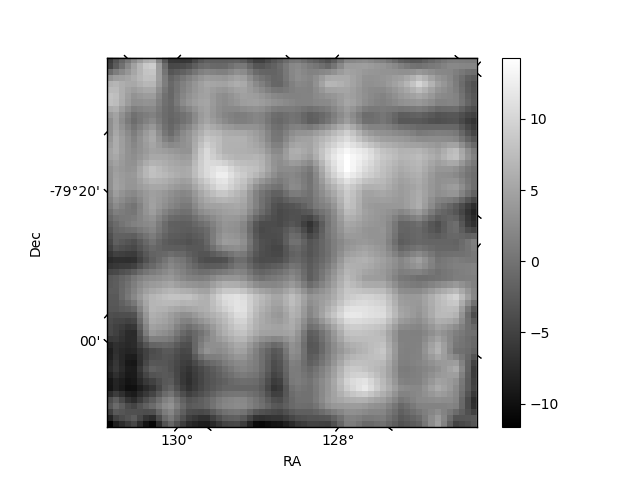

| Plot type | Count rate plots | Images |
|---|---|---|

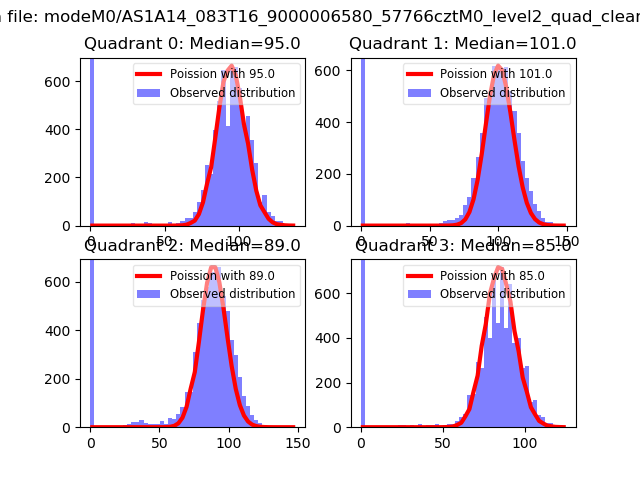

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

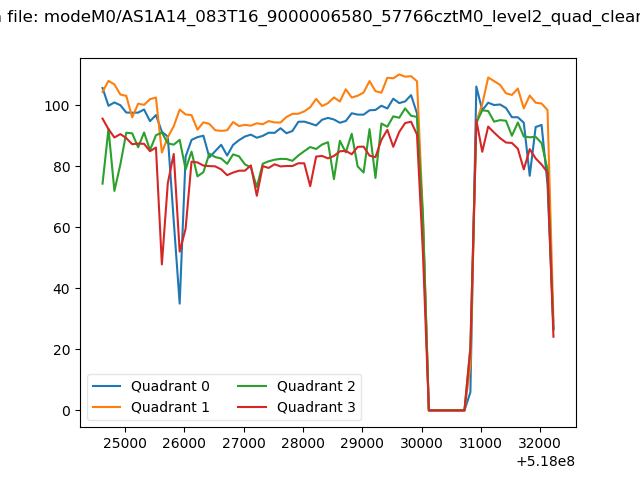

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

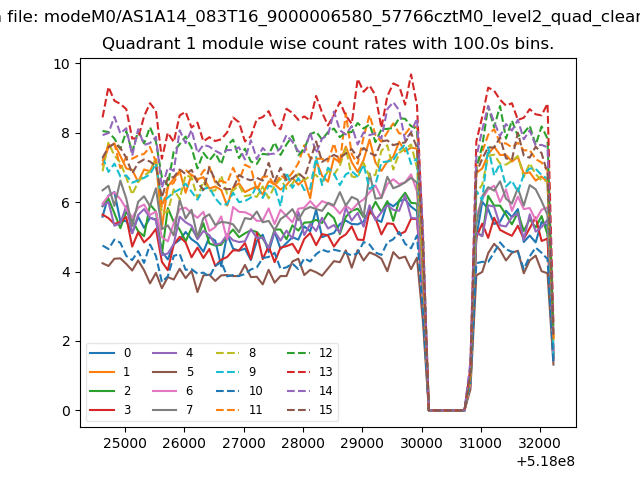

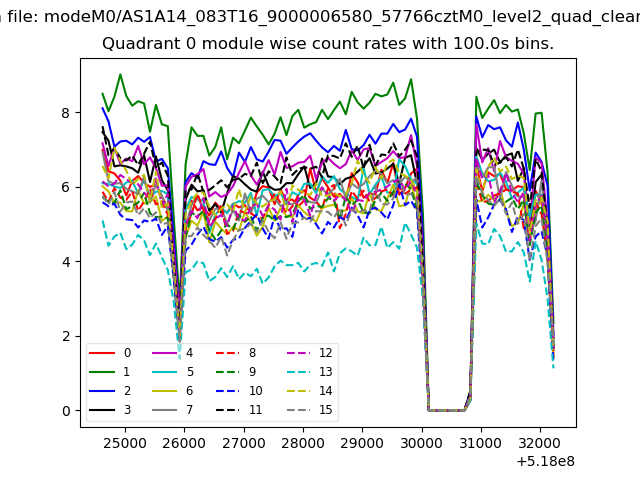

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

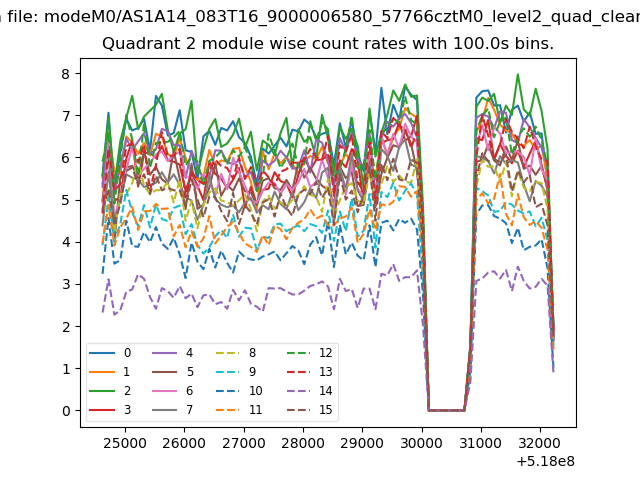

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

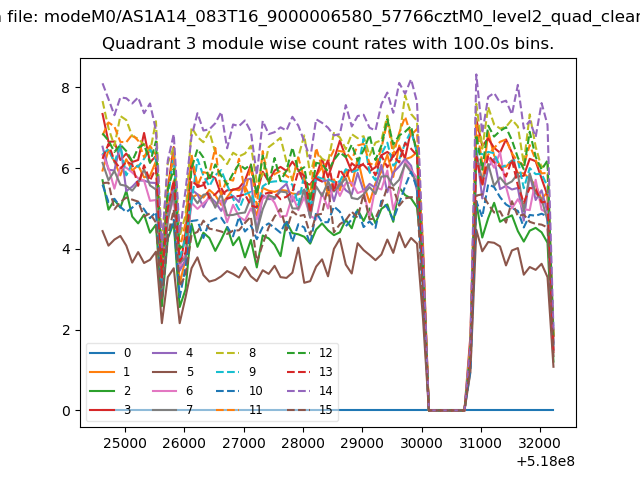

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

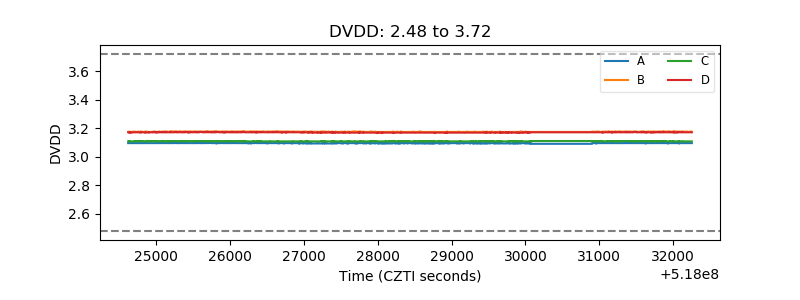

| D_VDD |  |

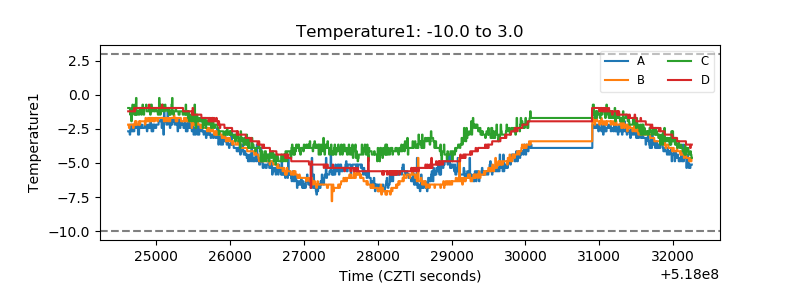

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

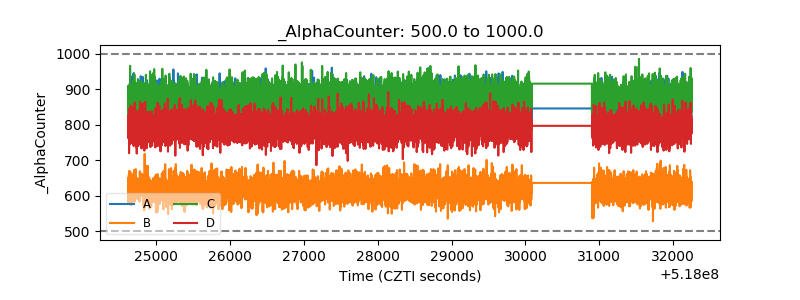

| Alpha Counter |  |

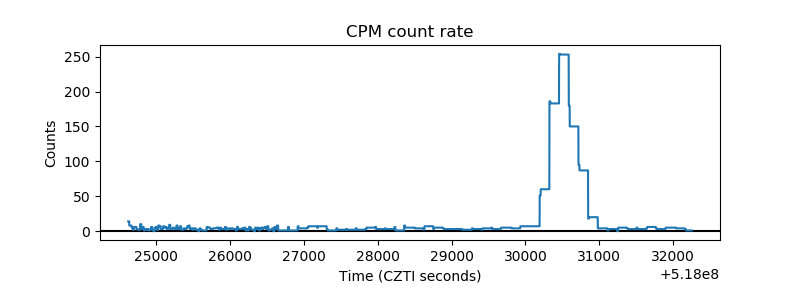

| _CPM_Rate |  |

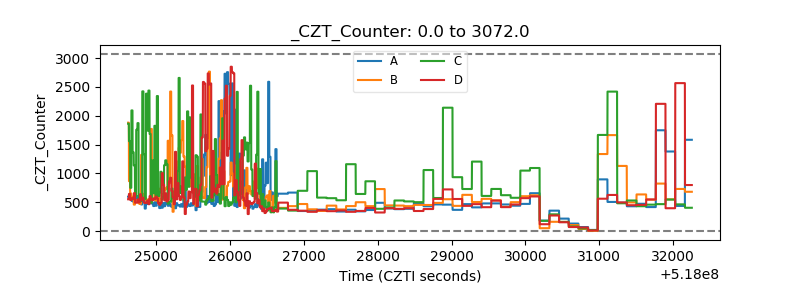

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

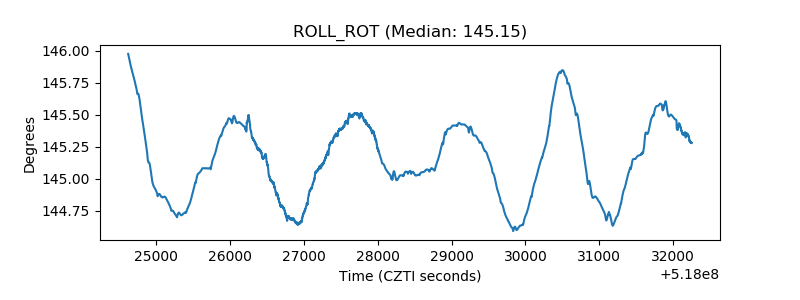

| _ROLL_ROT |  |

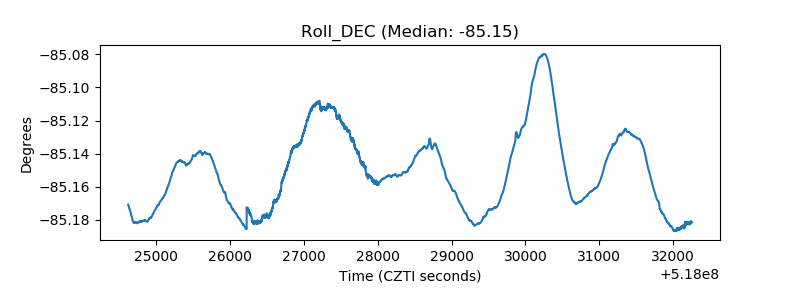

| _Roll_DEC |  |

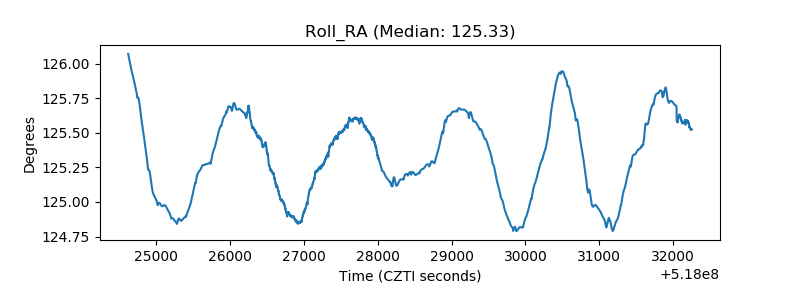

| _Roll_RA |  |

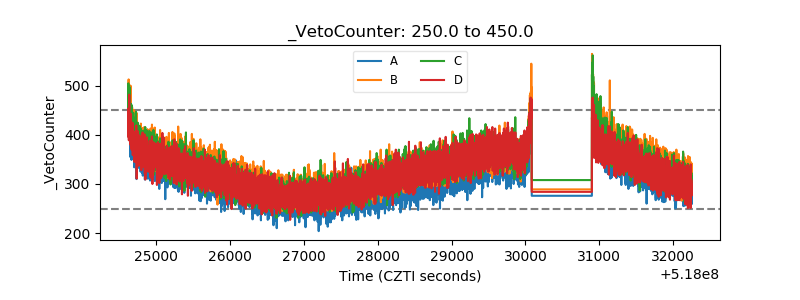

| Veto Counter |  |
