| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57770cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57770cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,456,640 | 92,589,120 |
| Size | 448.7 MB | 88.3 MB |
| Events in quadrant A | 2,915,780 | 628,632 |
| Events in quadrant B | 3,889,197 | 650,246 |
| Events in quadrant C | 6,477,016 | 532,780 |
| Events in quadrant D | 3,643,648 | 552,145 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13228 | 2 |
| B | 0 | 16047 | 2 |
| C | 0 | 23631 | 2 |
| D | 0 | 15328 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 22 | 0.349539% |
| B | 6294 | 304 | 4.829997% |
| C | 6294 | 803 | 12.758182% |
| D | 6294 | 95 | 1.509374% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 6295 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7469 | 6295 | 168 | 168 | 2.25% | 2.67% |  |
| C | 7469 | 6295 | 657 | 657 | 8.80% | 10.44% |  |
| D | 7469 | 6295 | 99 | 99 | 1.33% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 274444 | 1648.23 | 674 | 659 | 166.1 |
| A | 3 | 128 | 11619 | 65.98 | 674 | 659 | 166.1 |
| A | 3 | 137 | 8086 | 44.71 | 674 | 659 | 166.1 |
| B | 0 | 213 | 306229 | 2180.16 | 660 | 637 | 140.2 |
| B | 4 | 80 | 292433 | 2081.73 | 660 | 637 | 140.2 |
| B | 10 | 60 | 263701 | 1876.75 | 660 | 637 | 140.2 |
| C | 15 | 224 | 2290219 | 13507.9 | 620 | 617 | 169.5 |
| C | 9 | 38 | 1224519 | 7220.62 | 620 | 617 | 169.5 |
| C | 12 | 252 | 342848 | 2019.05 | 620 | 617 | 169.5 |
| D | 7 | 207 | 279849 | 1529.04 | 645 | 615 | 182.6 |
| D | 12 | 248 | 232249 | 1268.39 | 645 | 615 | 182.6 |
| D | 3 | 12 | 175809 | 959.34 | 645 | 615 | 182.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

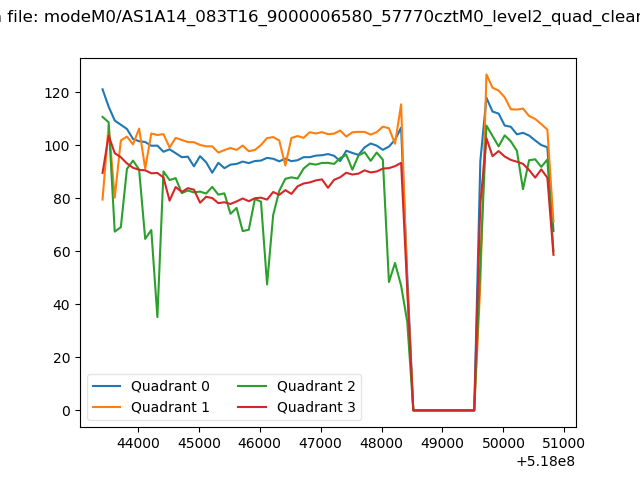

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

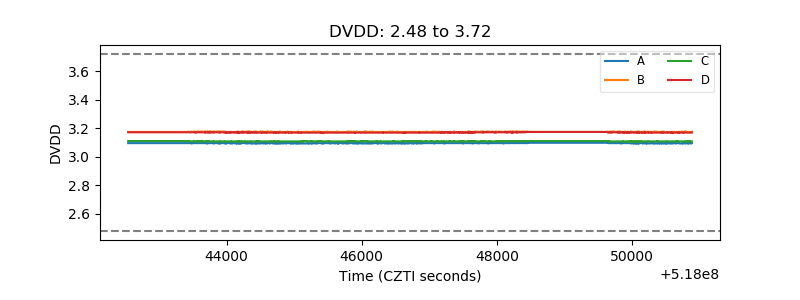

| D_VDD |  |
| Temperature 1 |  |

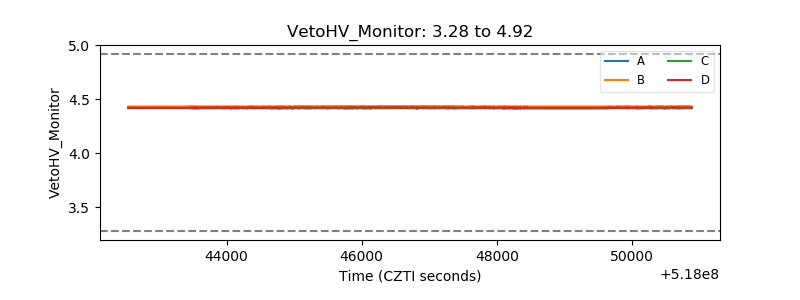

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

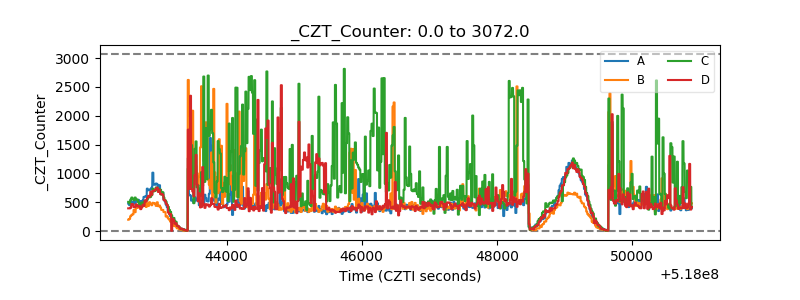

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

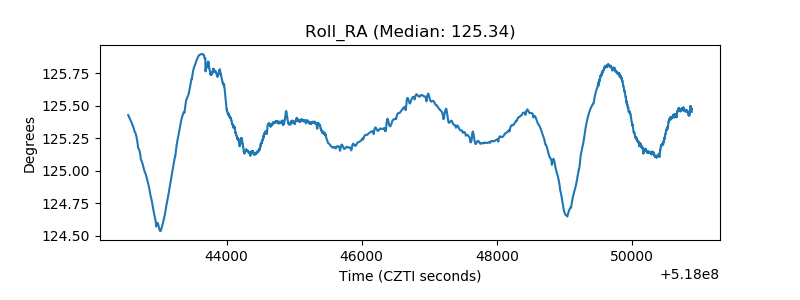

| _Roll_RA |  |
| Veto Counter |  |
