| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57780cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57780cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,978,171,200 | 337,752,000 |
| Size | 1.8 GB | 322.1 MB |
| Events in quadrant A | 11,451,052 | 2,291,692 |
| Events in quadrant B | 16,117,255 | 2,400,518 |
| Events in quadrant C | 29,983,916 | 1,816,515 |
| Events in quadrant D | 13,790,969 | 2,039,063 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 496 | 0 |
| B | 0 | 496 | 0 |
| C | 0 | 496 | 0 |
| D | 0 | 496 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50907 | 4 |
| B | 0 | 64546 | 4 |
| C | 0 | 106225 | 4 |
| D | 0 | 57985 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24377 | 284 | 1.165033% |
| B | 24378 | 837 | 3.433424% |
| C | 24378 | 5235 | 21.474280% |
| D | 24377 | 559 | 2.293145% |

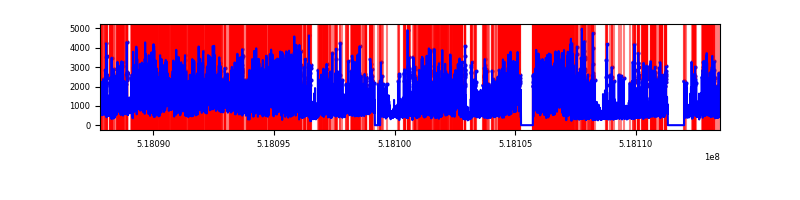

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25717 | 24380 | 6 | 6 | 0.02% | 0.02% |  |
| B | 25718 | 24379 | 272 | 272 | 1.06% | 1.12% |  |
| C | 25718 | 24382 | 3840 | 3840 | 14.93% | 15.75% |  |
| D | 25717 | 24381 | 317 | 317 | 1.23% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 709472 | 1103.04 | 2604 | 2538 | 640.9 |
| A | 3 | 14 | 419583 | 650.72 | 2604 | 2538 | 640.9 |
| A | 3 | 245 | 61216 | 91.56 | 2604 | 2538 | 640.9 |
| B | 4 | 80 | 3983681 | 7314.58 | 2553 | 2452 | 544.3 |
| B | 10 | 60 | 787637 | 1442.59 | 2553 | 2452 | 544.3 |
| B | 4 | 171 | 224367 | 407.72 | 2553 | 2452 | 544.3 |
| C | 9 | 38 | 13007446 | 20726.5 | 2326 | 2299 | 627.5 |
| C | 15 | 224 | 6135457 | 9774.51 | 2326 | 2299 | 627.5 |
| C | 4 | 5 | 433386 | 687.03 | 2326 | 2299 | 627.5 |
| D | 8 | 160 | 987712 | 1397.52 | 2509 | 2398 | 705.0 |
| D | 3 | 12 | 765553 | 1082.42 | 2509 | 2398 | 705.0 |
| D | 2 | 153 | 738670 | 1044.29 | 2509 | 2398 | 705.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

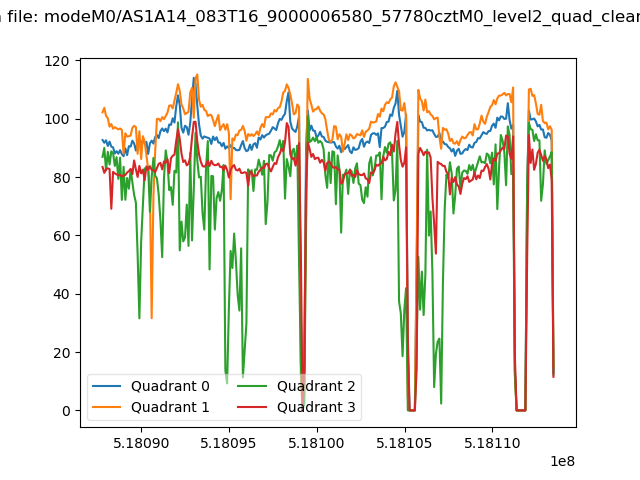

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

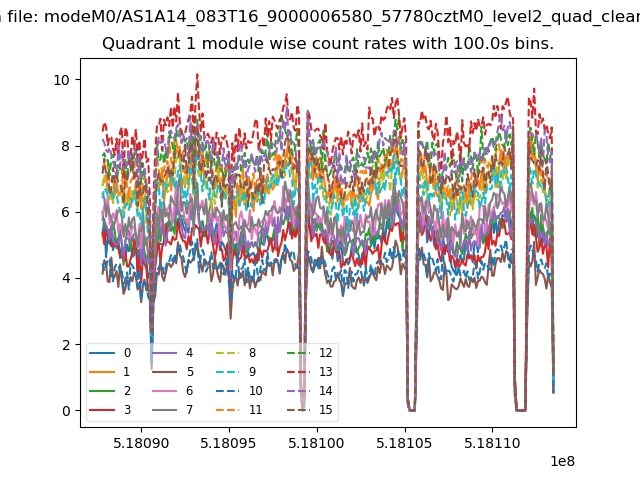

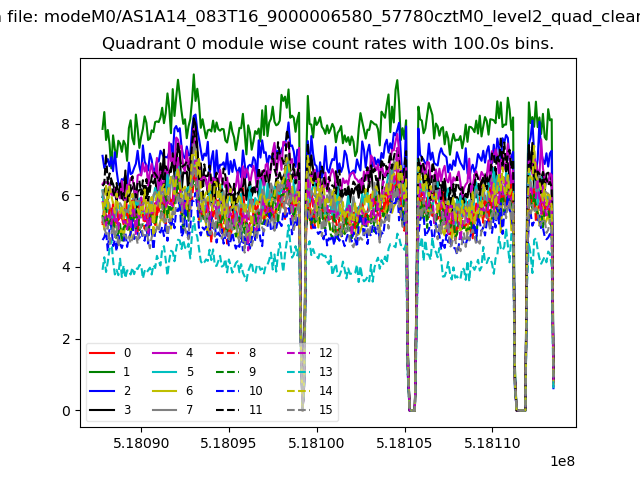

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

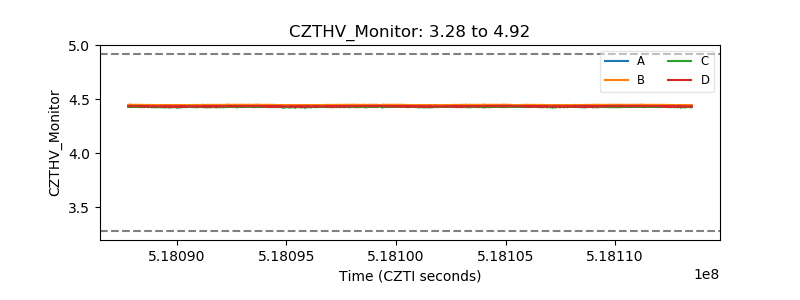

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

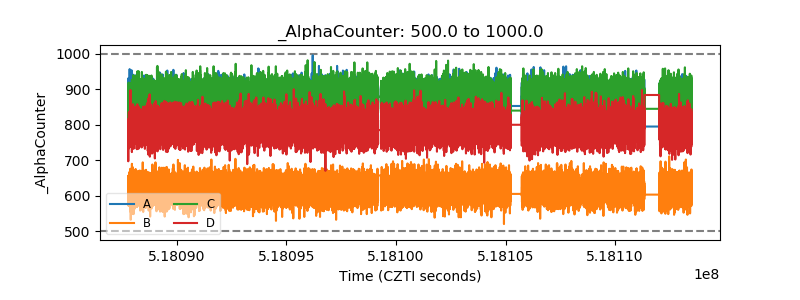

| Alpha Counter |  |

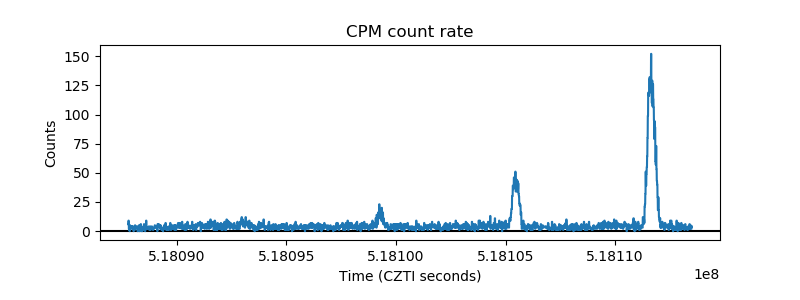

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
