| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57785cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57785cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,570,880 | 94,461,120 |
| Size | 506.0 MB | 90.1 MB |
| Events in quadrant A | 3,061,047 | 655,456 |
| Events in quadrant B | 3,522,314 | 697,073 |
| Events in quadrant C | 9,201,271 | 483,435 |
| Events in quadrant D | 3,353,180 | 572,934 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13478 | 2 |
| B | 0 | 15091 | 2 |
| C | 0 | 31897 | 2 |
| D | 0 | 14704 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6467 | 26 | 0.402041% |
| B | 6468 | 94 | 1.453309% |
| C | 6468 | 1714 | 26.499691% |
| D | 6468 | 117 | 1.808905% |

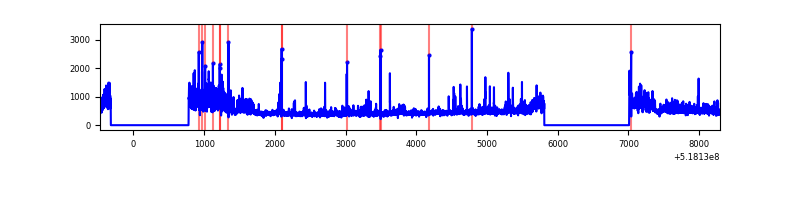

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8767 | 6469 | 3 | 3 | 0.03% | 0.05% |  |
| B | 8768 | 6470 | 15 | 15 | 0.17% | 0.23% |  |
| C | 8768 | 6470 | 1500 | 1500 | 17.11% | 23.18% |  |
| D | 8768 | 6470 | 96 | 96 | 1.09% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 256842 | 1470.24 | 702 | 684 | 174.2 |
| A | 3 | 14 | 40633 | 229.29 | 702 | 684 | 174.2 |
| A | 3 | 245 | 33234 | 186.82 | 702 | 684 | 174.2 |
| B | 4 | 80 | 492860 | 3347.29 | 697 | 672 | 147.0 |
| B | 10 | 247 | 65074 | 437.99 | 697 | 672 | 147.0 |
| B | 4 | 171 | 34397 | 229.36 | 697 | 672 | 147.0 |
| C | 9 | 38 | 5453048 | 32062.03 | 623 | 614 | 170.1 |
| C | 15 | 224 | 1172273 | 6889.73 | 623 | 614 | 170.1 |
| C | 12 | 2 | 60865 | 354.29 | 623 | 614 | 170.1 |
| D | 2 | 153 | 312892 | 1629.74 | 669 | 638 | 191.6 |
| D | 3 | 12 | 148007 | 769.16 | 669 | 638 | 191.6 |
| D | 8 | 160 | 75669 | 391.61 | 669 | 638 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

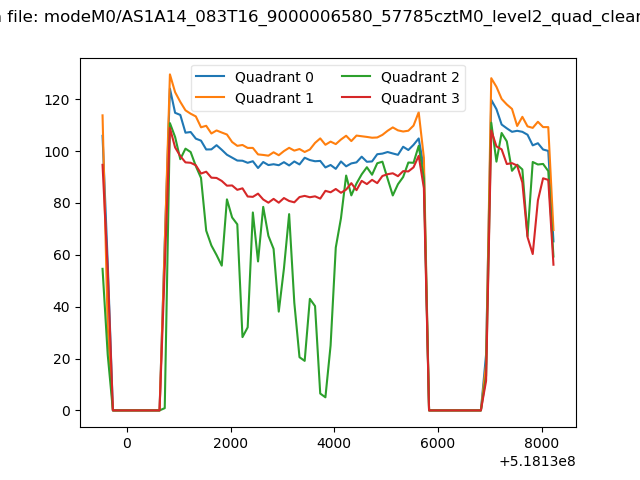

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

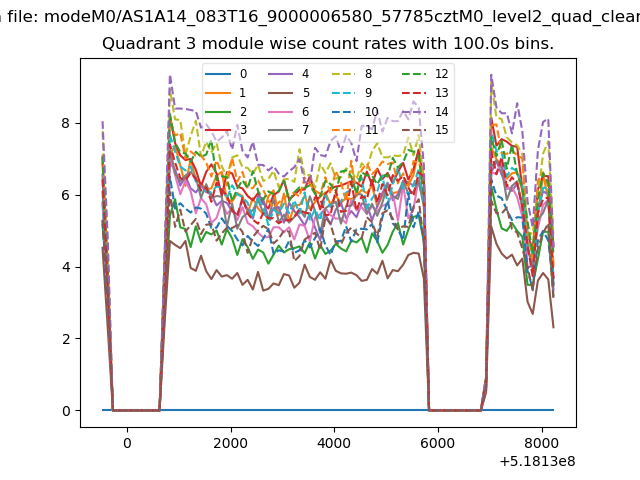

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

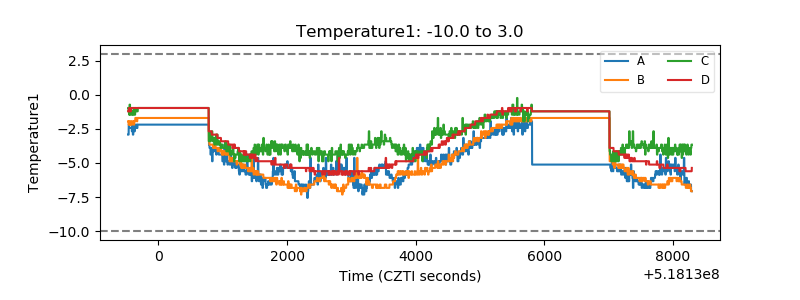

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

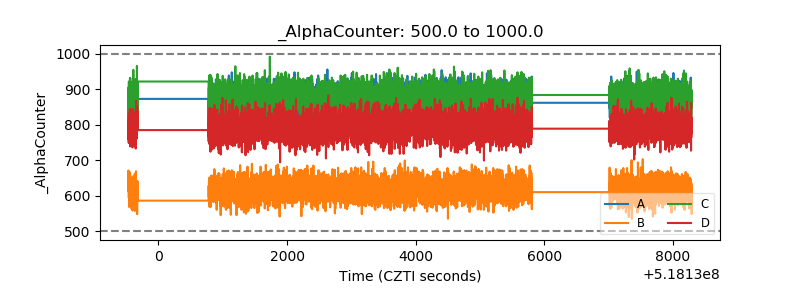

| Alpha Counter |  |

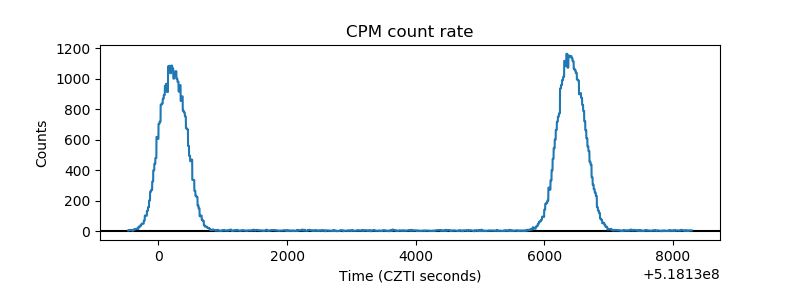

| _CPM_Rate |  |

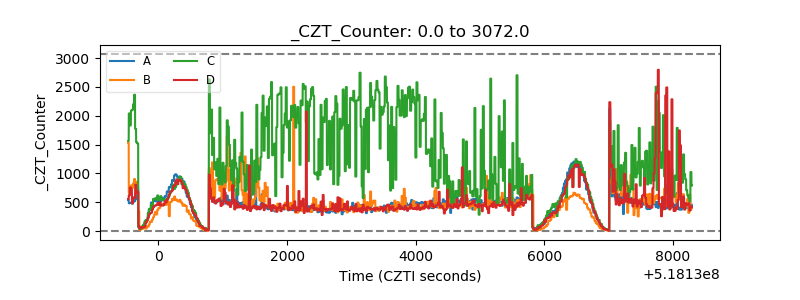

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

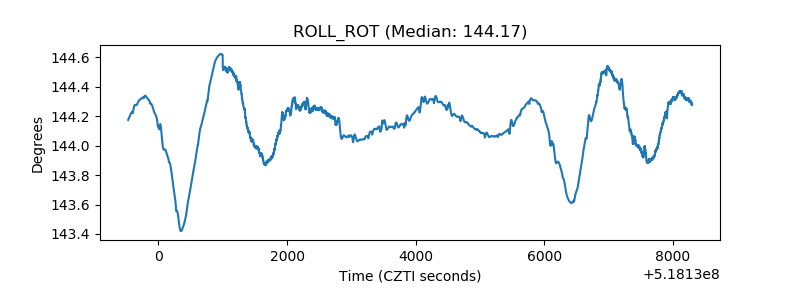

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
