| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57795cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57795cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,252,800 | 89,395,200 |
| Size | 524.8 MB | 85.3 MB |
| Events in quadrant A | 2,836,950 | 607,130 |
| Events in quadrant B | 5,927,836 | 620,018 |
| Events in quadrant C | 7,344,338 | 506,537 |
| Events in quadrant D | 3,763,417 | 526,155 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13031 | 1 |
| B | 0 | 22029 | 1 |
| C | 0 | 26337 | 1 |
| D | 0 | 15880 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6396 | 54 | 0.844278% |
| B | 6396 | 439 | 6.863665% |
| C | 6396 | 1024 | 16.010006% |
| D | 6396 | 272 | 4.252658% |

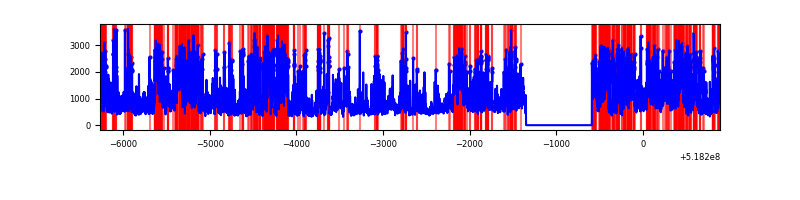

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7156 | 6396 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7156 | 6396 | 215 | 215 | 3.00% | 3.36% |  |
| C | 7155 | 6395 | 902 | 902 | 12.61% | 14.10% |  |
| D | 7156 | 6396 | 234 | 234 | 3.27% | 3.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 153005 | 896.68 | 684 | 667 | 169.9 |
| A | 3 | 245 | 18204 | 103.22 | 684 | 667 | 169.9 |
| A | 3 | 137 | 8413 | 45.59 | 684 | 667 | 169.9 |
| B | 4 | 80 | 2536416 | 17895.12 | 661 | 635 | 141.7 |
| B | 0 | 171 | 233157 | 1640.92 | 661 | 635 | 141.7 |
| B | 10 | 247 | 141198 | 991.96 | 661 | 635 | 141.7 |
| C | 9 | 38 | 2937766 | 17198.29 | 621 | 614 | 170.8 |
| C | 15 | 224 | 1753065 | 10261.36 | 621 | 614 | 170.8 |
| C | 14 | 254 | 164001 | 956.7 | 621 | 614 | 170.8 |
| D | 12 | 0 | 636115 | 3464.93 | 645 | 616 | 183.4 |
| D | 2 | 153 | 190873 | 1037.34 | 645 | 616 | 183.4 |
| D | 3 | 12 | 154981 | 841.64 | 645 | 616 | 183.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

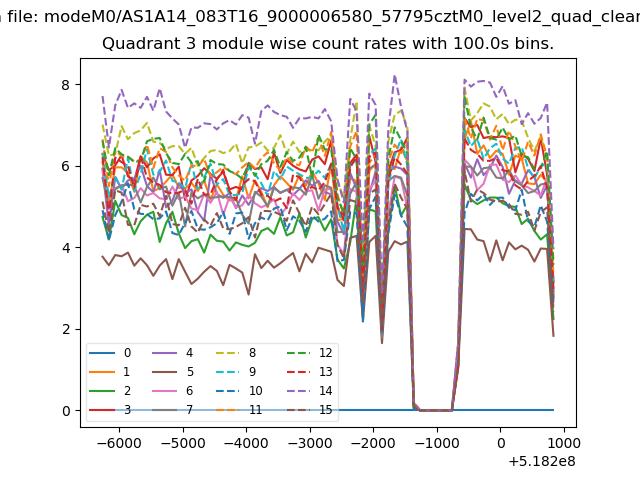

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

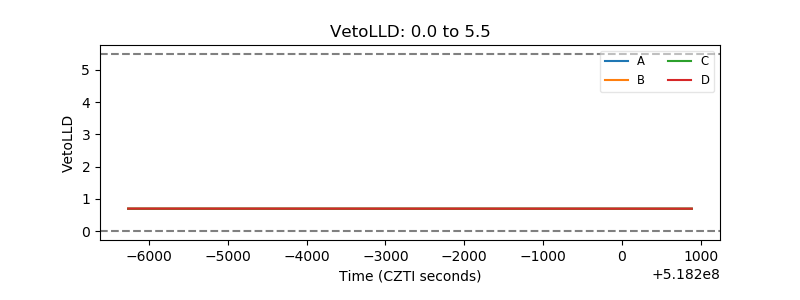

| Veto LLD |  |

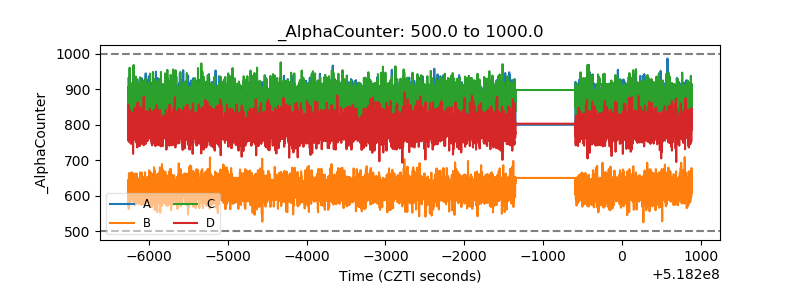

| Alpha Counter |  |
| _CPM_Rate |  |

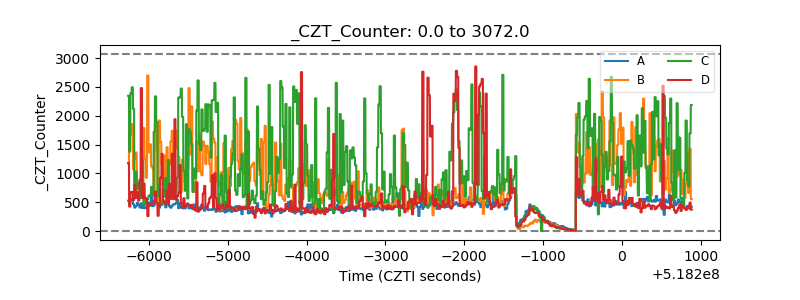

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

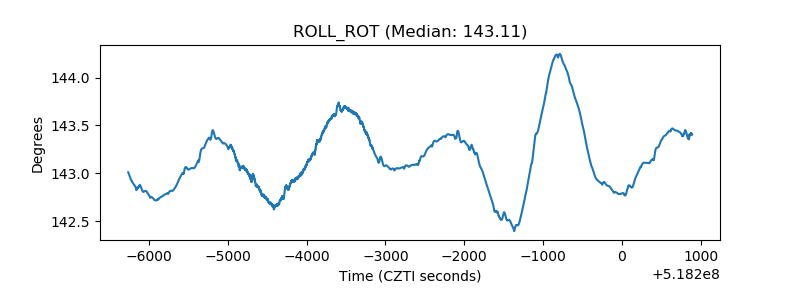

| _ROLL_ROT |  |

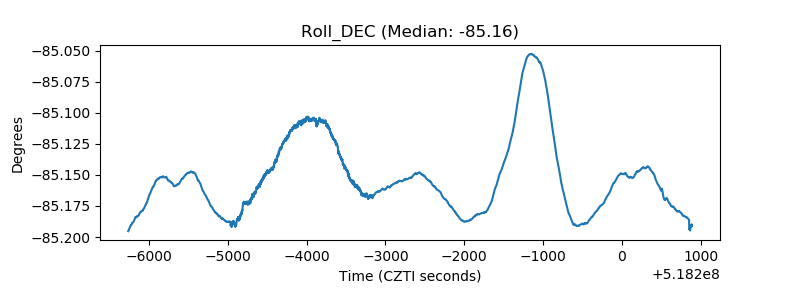

| _Roll_DEC |  |

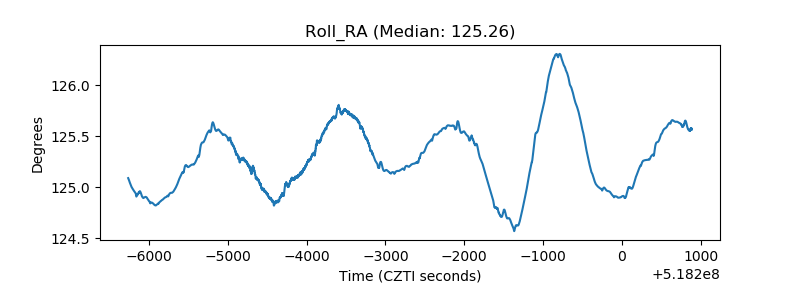

| _Roll_RA |  |
| Veto Counter |  |
