| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57801cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57801cztM0_level2_quad_clean.evt |
| Size (bytes) | 661,628,160 | 94,029,120 |
| Size | 631.0 MB | 89.7 MB |
| Events in quadrant A | 4,418,589 | 639,032 |
| Events in quadrant B | 5,264,062 | 703,648 |
| Events in quadrant C | 9,608,735 | 475,992 |
| Events in quadrant D | 4,682,104 | 562,049 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17896 | 2 |
| B | 0 | 20313 | 4 |
| C | 0 | 33171 | 2 |
| D | 0 | 18656 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6687 | 392 | 5.862121% |
| B | 6686 | 274 | 4.098115% |
| C | 6686 | 2049 | 30.646126% |
| D | 6686 | 459 | 6.865091% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7887 | 6688 | 287 | 287 | 3.64% | 4.29% |  |
| B | 7886 | 6686 | 85 | 85 | 1.08% | 1.27% |  |
| C | 7886 | 6687 | 1908 | 1908 | 24.19% | 28.53% |  |
| D | 7886 | 6687 | 479 | 479 | 6.07% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 1607539 | 9278.74 | 694 | 677 | 173.2 |
| A | 3 | 14 | 58999 | 336.78 | 694 | 677 | 173.2 |
| A | 3 | 128 | 54646 | 311.64 | 694 | 677 | 173.2 |
| B | 4 | 80 | 2055669 | 13908.51 | 703 | 679 | 147.8 |
| B | 7 | 252 | 97177 | 653.11 | 703 | 679 | 147.8 |
| B | 0 | 63 | 76747 | 514.84 | 703 | 679 | 147.8 |
| C | 9 | 38 | 3881258 | 23019.09 | 616 | 610 | 168.6 |
| C | 15 | 224 | 3056186 | 18124.96 | 616 | 610 | 168.6 |
| C | 12 | 252 | 116876 | 689.66 | 616 | 610 | 168.6 |
| D | 8 | 160 | 1067447 | 5568.06 | 670 | 636 | 191.6 |
| D | 12 | 0 | 483939 | 2522.53 | 670 | 636 | 191.6 |
| D | 3 | 12 | 174397 | 906.92 | 670 | 636 | 191.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

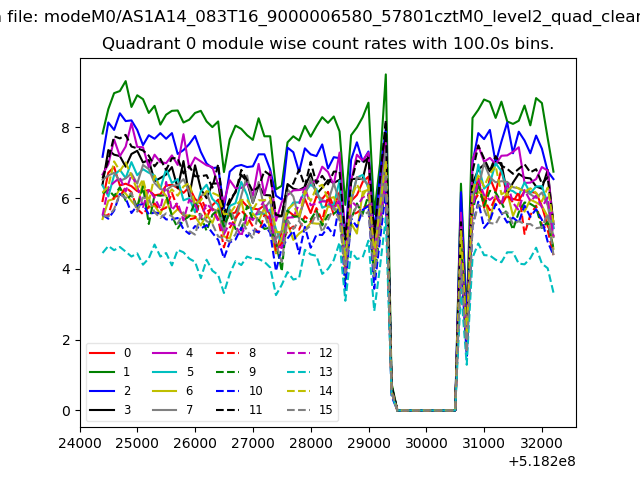

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

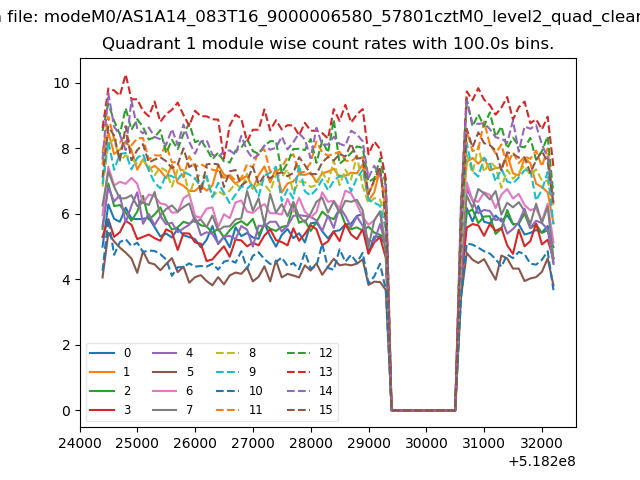

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

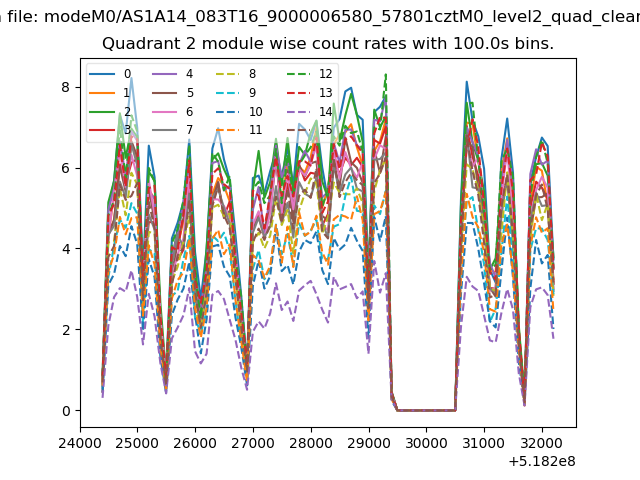

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

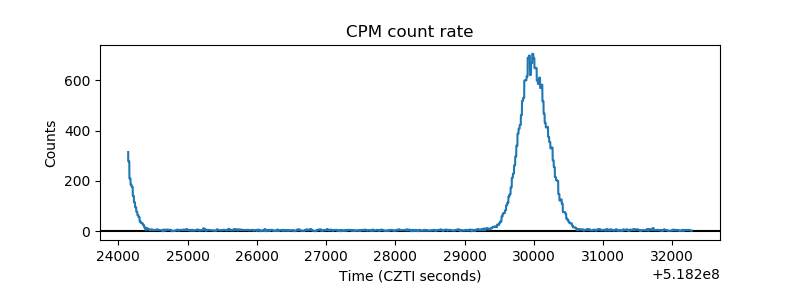

| _CPM_Rate |  |

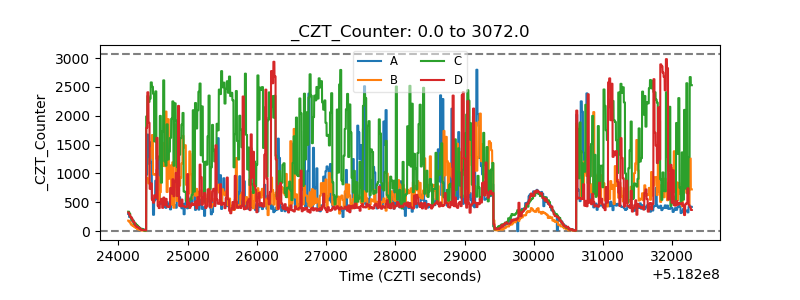

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

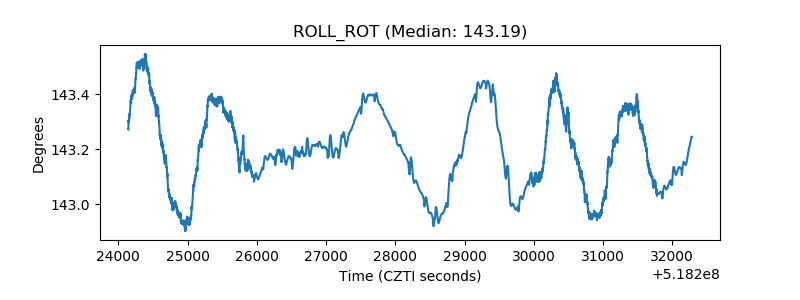

| _ROLL_ROT |  |

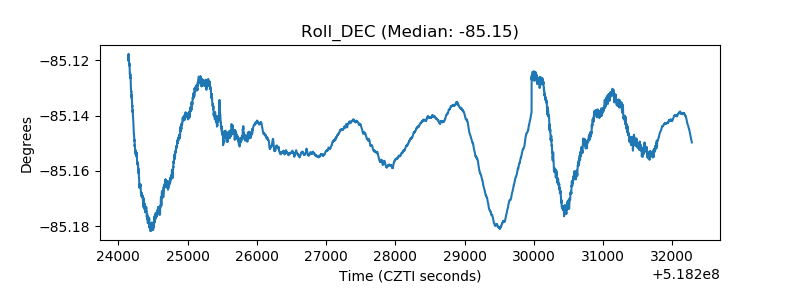

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
