| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57813cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57813cztM0_level2_quad_clean.evt |
| Size (bytes) | 787,556,160 | 74,390,400 |
| Size | 751.1 MB | 70.9 MB |
| Events in quadrant A | 3,181,584 | 585,580 |
| Events in quadrant B | 3,347,291 | 619,654 |
| Events in quadrant C | 11,710,407 | 299,118 |
| Events in quadrant D | 10,417,101 | 300,694 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13908 | 37 |
| B | 0 | 14621 | 29 |
| C | 0 | 39385 | 222 |
| D | 0 | 35587 | 191 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6412 | 34 | 0.530256% |
| B | 6411 | 116 | 1.809390% |
| C | 6394 | 3344 | 52.299030% |
| D | 6398 | 3044 | 47.577368% |

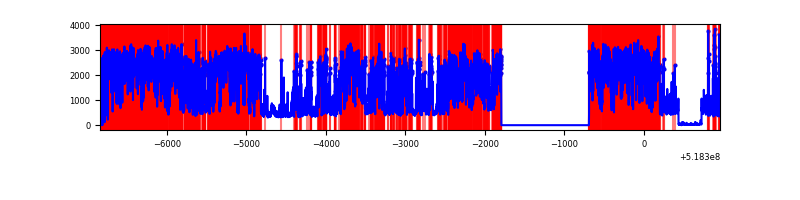

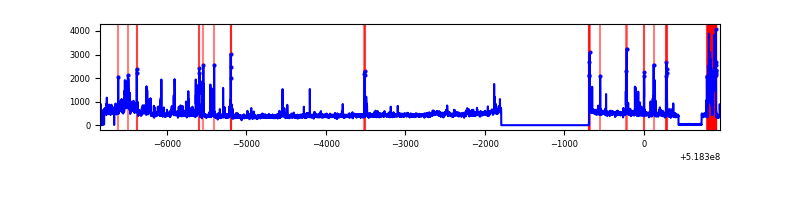

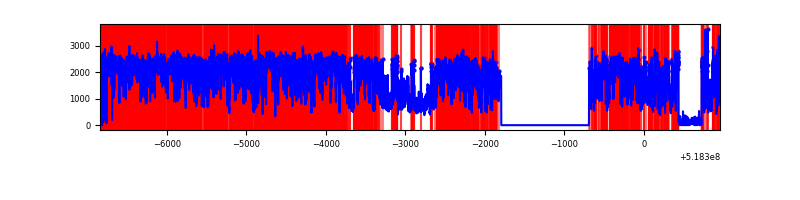

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7801 | 6690 | 18 | 18 | 0.23% | 0.27% |  |
| B | 7801 | 6691 | 85 | 85 | 1.09% | 1.27% |  |
| C | 7800 | 6618 | 3222 | 3222 | 41.31% | 48.69% |  |
| D | 7797 | 6678 | 2789 | 2789 | 35.77% | 41.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 234213 | 1365.47 | 682 | 665 | 171.0 |
| A | 3 | 128 | 156493 | 911.07 | 682 | 665 | 171.0 |
| A | 10 | 251 | 137619 | 800.72 | 682 | 665 | 171.0 |
| B | 5 | 172 | 159895 | 1105.28 | 676 | 651 | 144.1 |
| B | 4 | 142 | 142118 | 981.89 | 676 | 651 | 144.1 |
| B | 10 | 16 | 134255 | 927.32 | 676 | 651 | 144.1 |
| C | 9 | 38 | 8760988 | 59560.2 | 537 | 531 | 147.1 |
| C | 15 | 224 | 579354 | 3935.28 | 537 | 531 | 147.1 |
| C | 12 | 2 | 153302 | 1038.65 | 537 | 531 | 147.1 |
| D | 2 | 249 | 7481226 | 54258.99 | 479 | 455 | 137.9 |
| D | 3 | 224 | 257504 | 1864.41 | 479 | 455 | 137.9 |
| D | 3 | 12 | 241149 | 1745.78 | 479 | 455 | 137.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

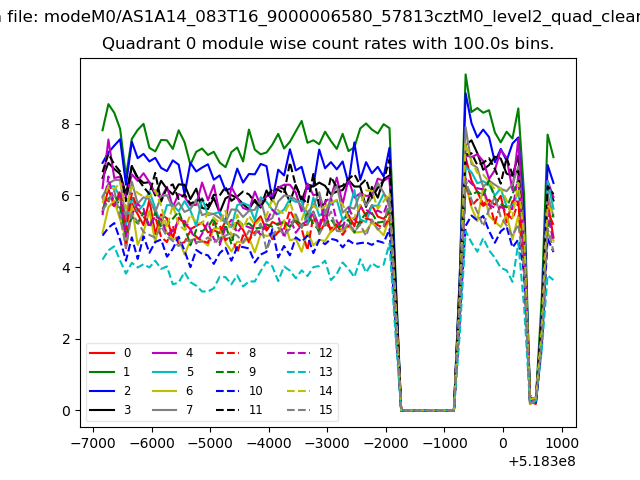

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

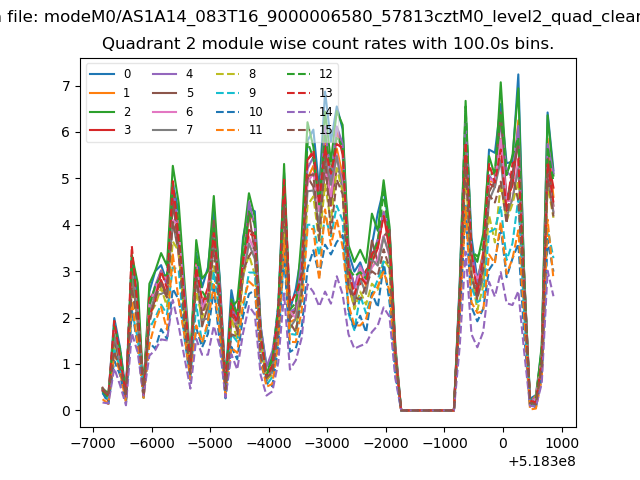

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

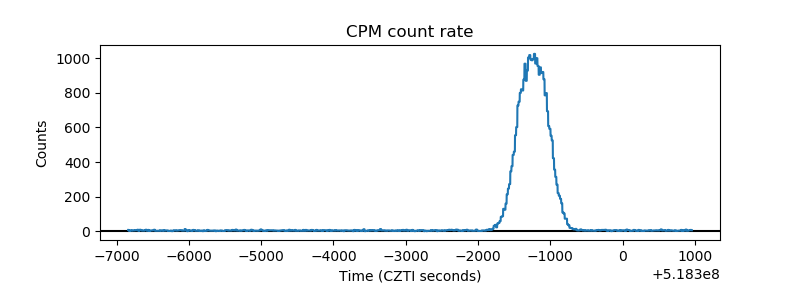

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

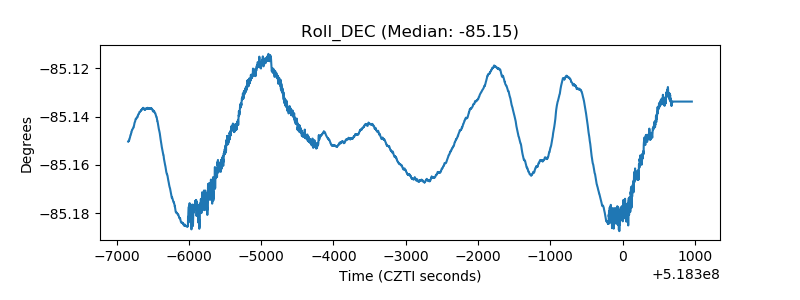

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
