| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57814cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57814cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,468,800 | 83,053,440 |
| Size | 550.7 MB | 79.2 MB |
| Events in quadrant A | 4,675,907 | 558,815 |
| Events in quadrant B | 3,441,859 | 630,767 |
| Events in quadrant C | 7,322,261 | 418,513 |
| Events in quadrant D | 5,443,152 | 462,755 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18289 | 2 |
| B | 0 | 14777 | 2 |
| C | 0 | 26161 | 2 |
| D | 0 | 20679 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6354 | 513 | 8.073654% |
| B | 6354 | 156 | 2.455146% |
| C | 6354 | 1025 | 16.131571% |
| D | 6354 | 838 | 13.188543% |

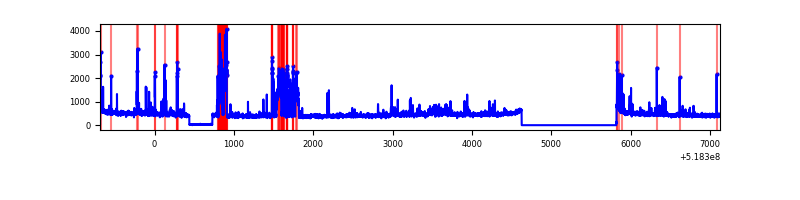

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7814 | 6615 | 445 | 445 | 5.69% | 6.73% |  |
| B | 7814 | 6615 | 121 | 121 | 1.55% | 1.83% |  |
| C | 7814 | 6558 | 982 | 982 | 12.57% | 14.97% |  |
| D | 7814 | 6615 | 804 | 804 | 10.29% | 12.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1462742 | 8960.98 | 657 | 642 | 163.2 |
| A | 3 | 14 | 265994 | 1626.3 | 657 | 642 | 163.2 |
| A | 10 | 251 | 198745 | 1214.14 | 657 | 642 | 163.2 |
| B | 5 | 172 | 489901 | 3461.72 | 676 | 649 | 141.3 |
| B | 7 | 252 | 52594 | 367.54 | 676 | 649 | 141.3 |
| B | 10 | 16 | 51113 | 357.06 | 676 | 649 | 141.3 |
| C | 9 | 38 | 3888458 | 22741.84 | 627 | 620 | 171.0 |
| C | 15 | 224 | 681722 | 3984.09 | 627 | 620 | 171.0 |
| C | 12 | 2 | 212076 | 1236.91 | 627 | 620 | 171.0 |
| D | 2 | 249 | 2075937 | 11915.79 | 606 | 577 | 174.2 |
| D | 8 | 240 | 198797 | 1138.09 | 606 | 577 | 174.2 |
| D | 3 | 224 | 189040 | 1082.07 | 606 | 577 | 174.2 |

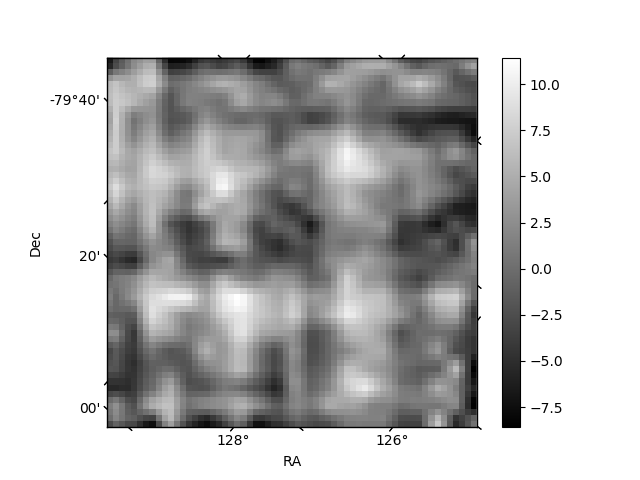

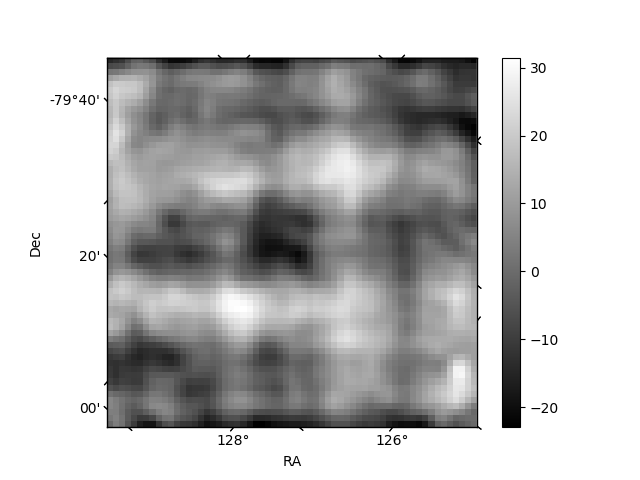

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

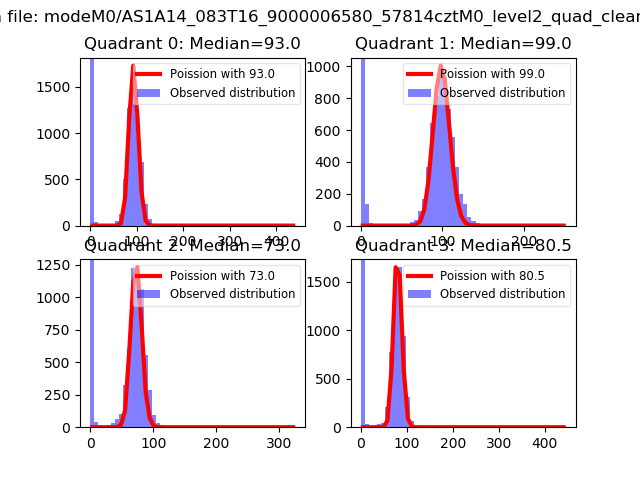

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

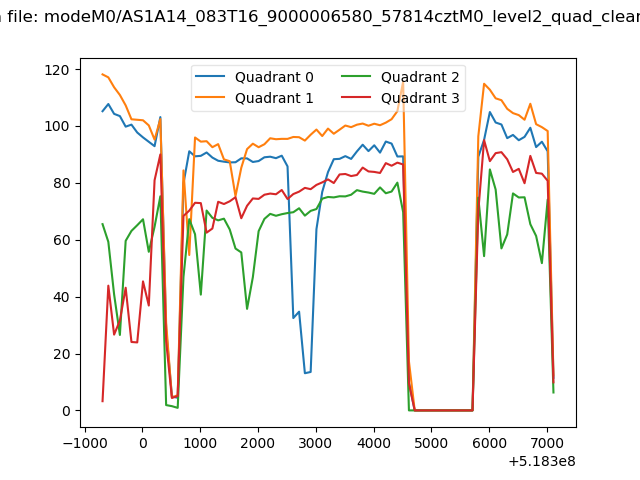

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

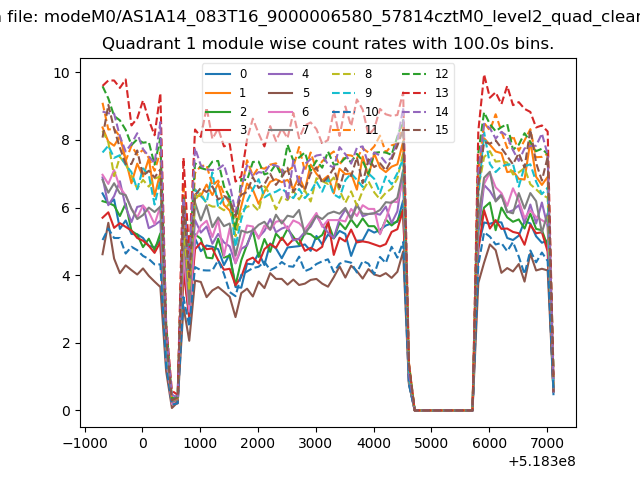

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

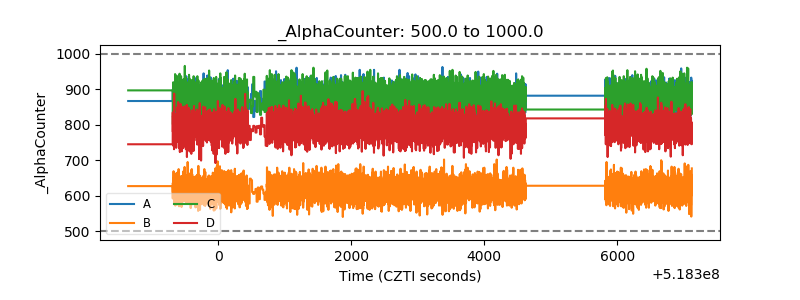

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

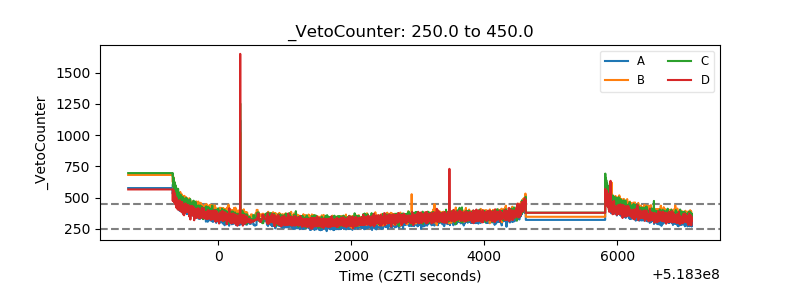

| Veto Counter |  |
