| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57830cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57830cztM0_level2_quad_clean.evt |
| Size (bytes) | 639,408,960 | 88,369,920 |
| Size | 609.8 MB | 84.3 MB |
| Events in quadrant A | 3,352,844 | 617,166 |
| Events in quadrant B | 3,359,102 | 665,886 |
| Events in quadrant C | 8,511,067 | 444,210 |
| Events in quadrant D | 7,957,111 | 507,641 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14681 | 2 |
| B | 0 | 14584 | 2 |
| C | 0 | 29719 | 2 |
| D | 0 | 28096 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6311 | 146 | 2.313421% |
| B | 6311 | 153 | 2.424338% |
| C | 6311 | 1844 | 29.218824% |
| D | 6311 | 771 | 12.216764% |

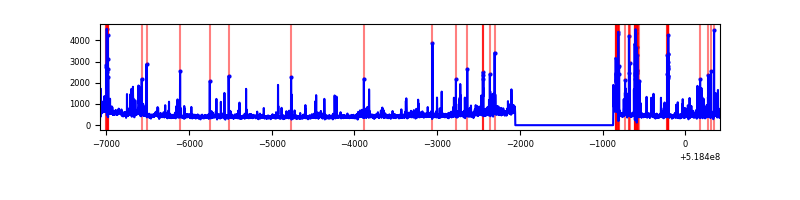

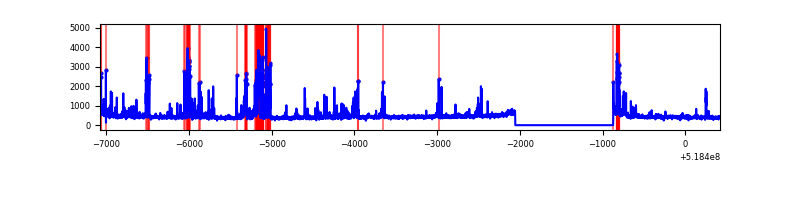

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7496 | 6312 | 113 | 113 | 1.51% | 1.79% |  |
| B | 7496 | 6312 | 77 | 77 | 1.03% | 1.22% |  |
| C | 7496 | 6312 | 1437 | 1437 | 19.17% | 22.77% |  |
| D | 7496 | 6312 | 852 | 852 | 11.37% | 13.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 643354 | 3908.63 | 663 | 647 | 164.4 |
| A | 3 | 245 | 100724 | 608.62 | 663 | 647 | 164.4 |
| A | 3 | 14 | 22705 | 134.15 | 663 | 647 | 164.4 |
| B | 4 | 158 | 392409 | 2801.97 | 661 | 636 | 139.8 |
| B | 5 | 185 | 86293 | 612.62 | 661 | 636 | 139.8 |
| B | 0 | 63 | 60947 | 431.35 | 661 | 636 | 139.8 |
| C | 9 | 38 | 5224540 | 33160.33 | 576 | 571 | 157.5 |
| C | 15 | 224 | 812427 | 5153.44 | 576 | 571 | 157.5 |
| C | 6 | 223 | 116283 | 734.51 | 576 | 571 | 157.5 |
| D | 12 | 110 | 4613669 | 26039.12 | 621 | 592 | 177.2 |
| D | 8 | 160 | 451656 | 2546.09 | 621 | 592 | 177.2 |
| D | 3 | 224 | 125581 | 705.52 | 621 | 592 | 177.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

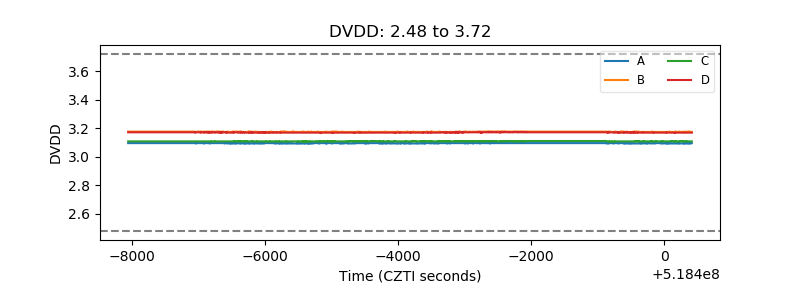

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

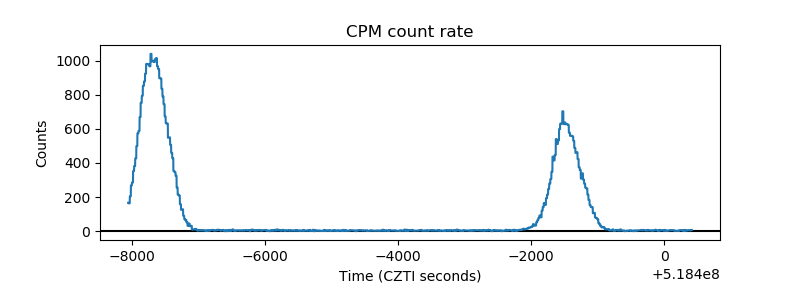

| _CPM_Rate |  |

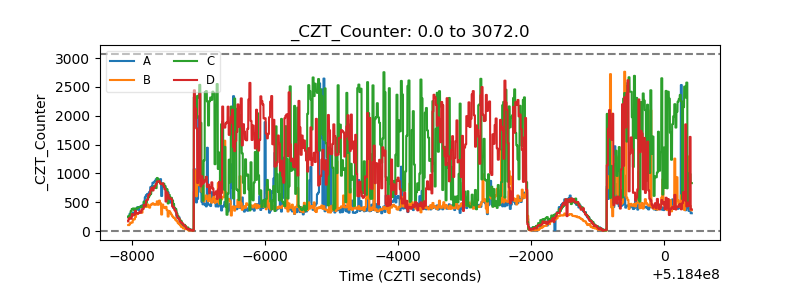

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

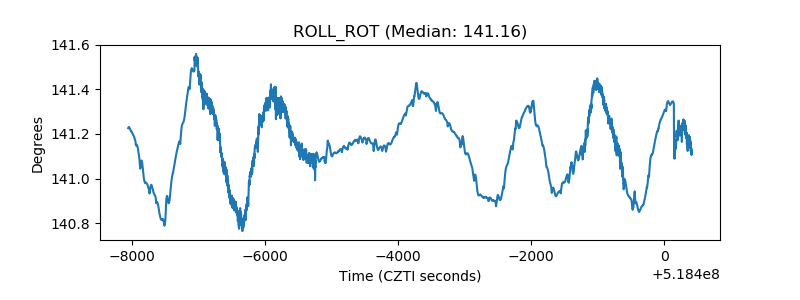

| _ROLL_ROT |  |
| _Roll_DEC |  |

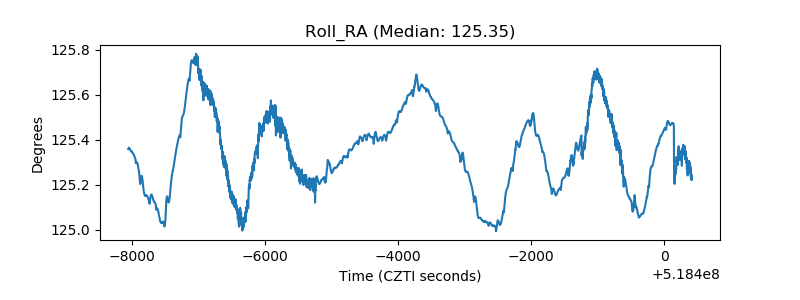

| _Roll_RA |  |

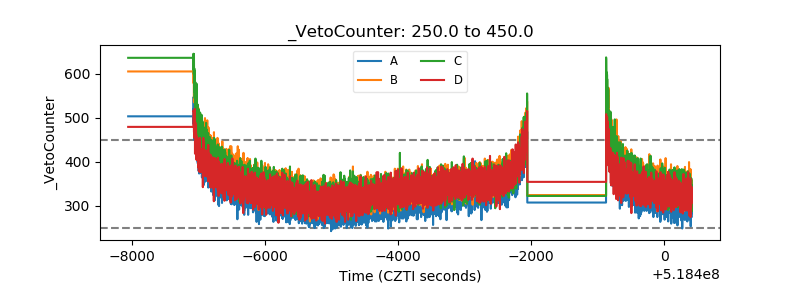

| Veto Counter |  |
