| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_083T16_9000006580_57831cztM0_level2.fits | modeM0/AS1A14_083T16_9000006580_57831cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,999,360 | 76,377,600 |
| Size | 412.9 MB | 72.8 MB |
| Events in quadrant A | 2,502,790 | 516,160 |
| Events in quadrant B | 2,838,359 | 545,648 |
| Events in quadrant C | 6,515,006 | 427,907 |
| Events in quadrant D | 3,759,697 | 450,891 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11452 | 1 |
| B | 0 | 12270 | 1 |
| C | 0 | 23060 | 1 |
| D | 0 | 14968 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5304 | 59 | 1.112368% |
| B | 5305 | 154 | 2.902922% |
| C | 5305 | 940 | 17.719133% |
| D | 5305 | 231 | 4.354383% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

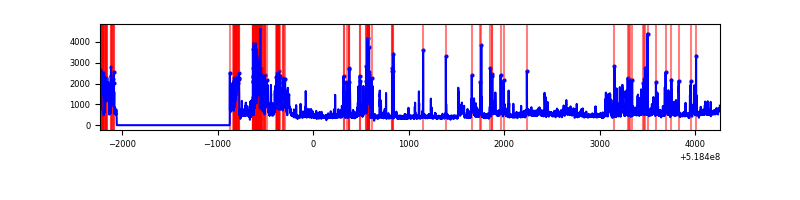

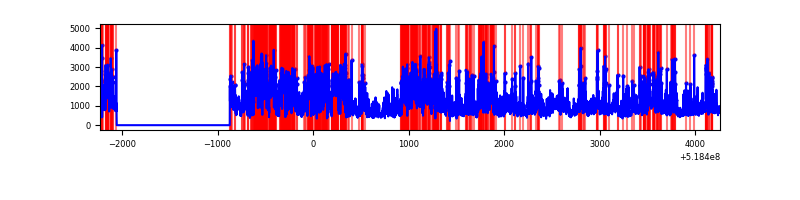

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6489 | 5305 | 27 | 27 | 0.42% | 0.51% |  |
| B | 6490 | 5306 | 85 | 85 | 1.31% | 1.60% |  |
| C | 6490 | 5306 | 737 | 737 | 11.36% | 13.89% |  |
| D | 6490 | 5306 | 172 | 172 | 2.65% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 206327 | 1477.51 | 561 | 546 | 139.3 |
| A | 3 | 245 | 63834 | 454.41 | 561 | 546 | 139.3 |
| A | 3 | 128 | 32004 | 225.87 | 561 | 546 | 139.3 |
| B | 4 | 158 | 413565 | 3474.85 | 552 | 530 | 118.9 |
| B | 5 | 185 | 50931 | 424.02 | 552 | 530 | 118.9 |
| B | 7 | 252 | 37841 | 313.9 | 552 | 530 | 118.9 |
| C | 9 | 38 | 3320296 | 23427.77 | 519 | 513 | 141.7 |
| C | 15 | 224 | 829950 | 5853.35 | 519 | 513 | 141.7 |
| C | 6 | 223 | 120353 | 845.71 | 519 | 513 | 141.7 |
| D | 12 | 110 | 815368 | 5301.47 | 539 | 515 | 153.7 |
| D | 8 | 240 | 290997 | 1889.89 | 539 | 515 | 153.7 |
| D | 3 | 12 | 114340 | 740.55 | 539 | 515 | 153.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

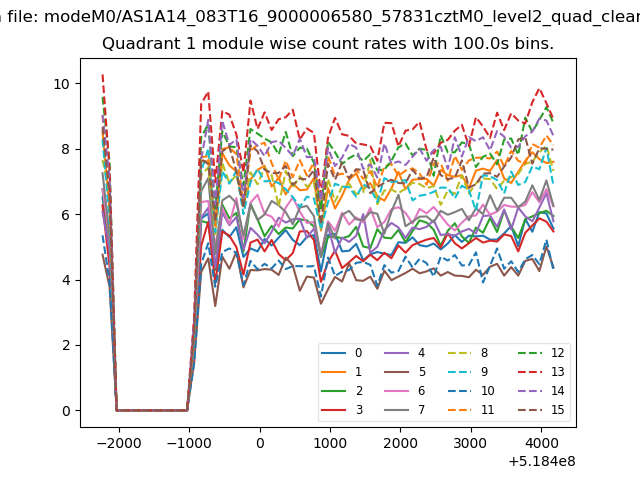

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

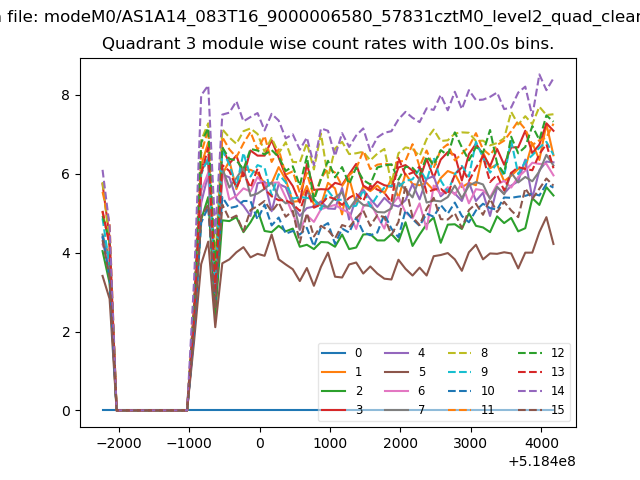

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

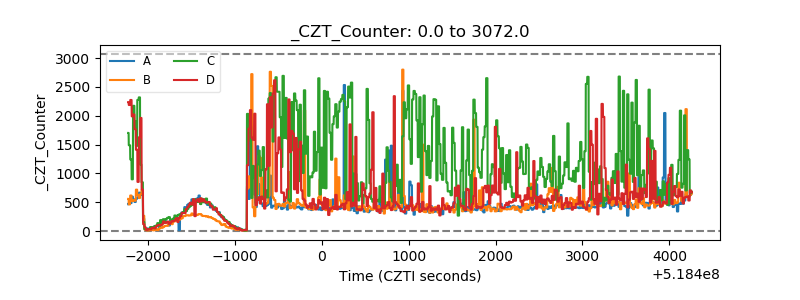

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

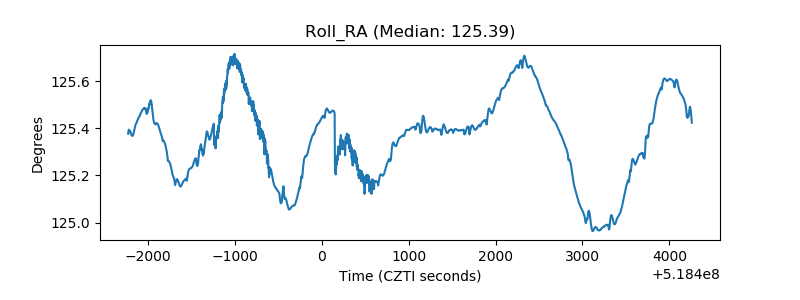

| _Roll_RA |  |

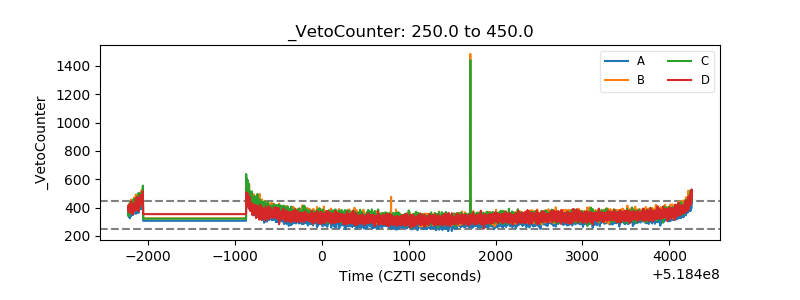

| Veto Counter |  |
