| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582cztM0_level2_quad_clean.evt |
| Size (bytes) | 4,574,715,840 | 1,918,967,040 |
| Size | 4.3 GB | 1.8 GB |
| Events in quadrant A | 27,792,398 | 5,506,709 |
| Events in quadrant B | 25,704,030 | 5,779,771 |
| Events in quadrant C | 25,062,300 | 4,730,046 |
| Events in quadrant D | 22,642,882 | 4,779,027 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11048 | 0 |
| B | 0 | 11044 | 0 |
| C | 0 | 11044 | 0 |
| D | 0 | 11044 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1142036 | 0 |
| B | 0 | 1242892 | 0 |
| C | 0 | 1823451 | 0 |
| D | 0 | 1537259 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 643 | 0 |
| B | 0 | 643 | 0 |
| C | 0 | 643 | 0 |
| D | 0 | 643 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 544514 | 5601 | 1.028624% |
| B | 544495 | 18012 | 3.308019% |
| C | 544403 | 69888 | 12.837549% |
| D | 544483 | 40711 | 7.477001% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 613289 | 544596 | 0 | 0 | 0.00% | 0.00% |  |
| B | 613289 | 544473 | 0 | 0 | 0.00% | 0.00% |  |
| C | 613289 | 543354 | 0 | 0 | 0.00% | 0.00% |  |
| D | 613289 | 544430 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 188 | 31548 | 10.21 | 7280 | 6721 | 2432.7 |
| A | 9 | 255 | 27880 | 8.7 | 7280 | 6721 | 2432.7 |
| A | 14 | 204 | 25890 | 7.88 | 7280 | 6721 | 2432.7 |
| B | 2 | 9 | 29996 | 15.05 | 6785 | 6419 | 1566.8 |
| B | 2 | 8 | 26893 | 13.07 | 6785 | 6419 | 1566.8 |
| B | 3 | 25 | 21341 | 9.52 | 6785 | 6419 | 1566.8 |
| C | 2 | 31 | 19940 | 6.02 | 6666 | 6059 | 2303.9 |
| C | 7 | 221 | 19834 | 5.98 | 6666 | 6059 | 2303.9 |
| C | 15 | 127 | 19624 | 5.89 | 6666 | 6059 | 2303.9 |
| D | 6 | 218 | 28206 | 10.31 | 6439 | 5697 | 2183.4 |
| D | 15 | 11 | 22404 | 7.65 | 6439 | 5697 | 2183.4 |
| D | 8 | 12 | 21903 | 7.42 | 6439 | 5697 | 2183.4 |

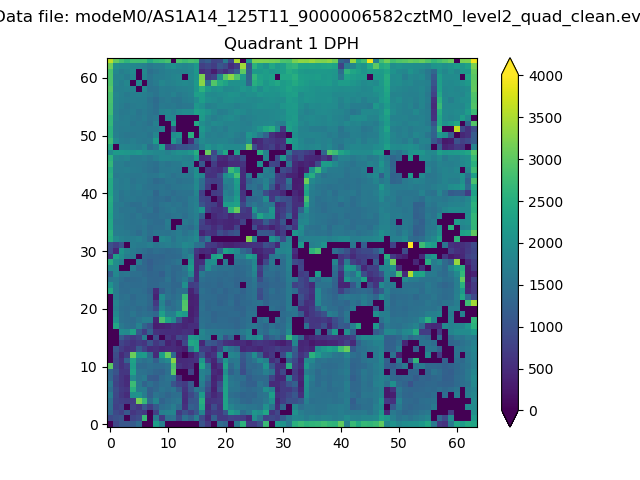

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

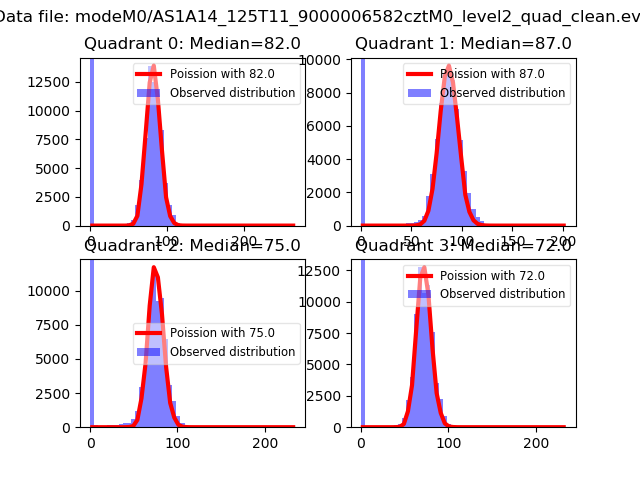

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

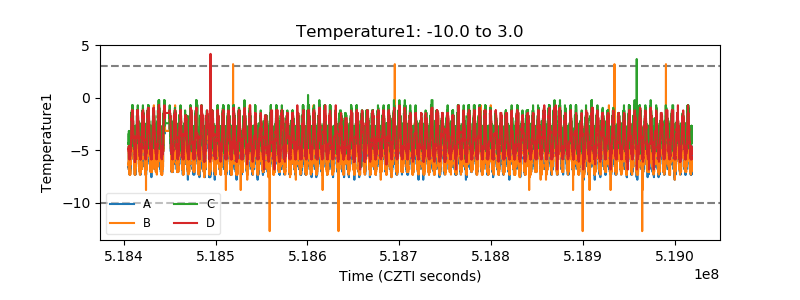

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
