| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57841cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57841cztM0_level2_quad_clean.evt |
| Size (bytes) | 765,950,400 | 83,111,040 |
| Size | 730.5 MB | 79.3 MB |
| Events in quadrant A | 2,751,042 | 646,598 |
| Events in quadrant B | 3,159,010 | 675,642 |
| Events in quadrant C | 12,972,161 | 224,509 |
| Events in quadrant D | 8,963,691 | 513,432 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13269 | 1 |
| B | 0 | 14193 | 1 |
| C | 0 | 43027 | 1 |
| D | 0 | 31193 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6541 | 21 | 0.321052% |
| B | 6542 | 100 | 1.528585% |
| C | 6542 | 4454 | 68.083155% |
| D | 6542 | 976 | 14.918985% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6542 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7537 | 6543 | 49 | 49 | 0.65% | 0.75% |  |
| C | 7537 | 6543 | 3802 | 3802 | 50.44% | 58.11% |  |
| D | 7537 | 6543 | 1171 | 1171 | 15.54% | 17.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 17759 | 97.62 | 700 | 681 | 174.9 |
| A | 3 | 137 | 8587 | 45.19 | 700 | 681 | 174.9 |
| A | 13 | 254 | 8230 | 43.15 | 700 | 681 | 174.9 |
| B | 5 | 185 | 182925 | 1234.74 | 687 | 661 | 147.6 |
| B | 7 | 252 | 50678 | 338.84 | 687 | 661 | 147.6 |
| B | 0 | 245 | 28471 | 188.4 | 687 | 661 | 147.6 |
| C | 9 | 38 | 9491880 | 71109.62 | 482 | 477 | 133.5 |
| C | 15 | 224 | 1390196 | 10411.78 | 482 | 477 | 133.5 |
| C | 15 | 208 | 126835 | 946.67 | 482 | 477 | 133.5 |
| D | 12 | 110 | 5662821 | 30825.7 | 648 | 619 | 183.7 |
| D | 8 | 160 | 179674 | 974.8 | 648 | 619 | 183.7 |
| D | 2 | 249 | 148796 | 806.69 | 648 | 619 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

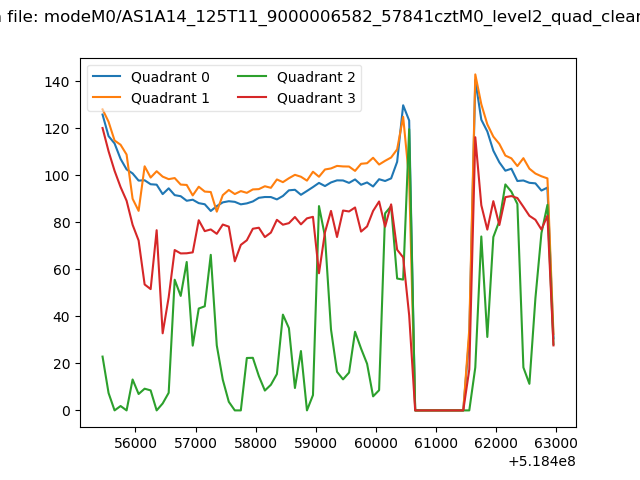

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

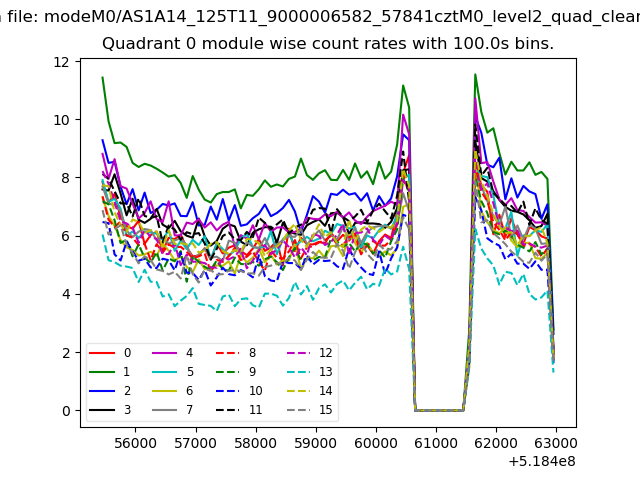

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

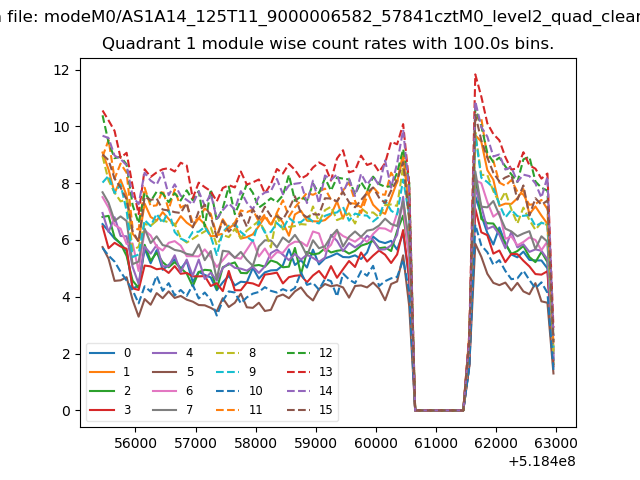

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

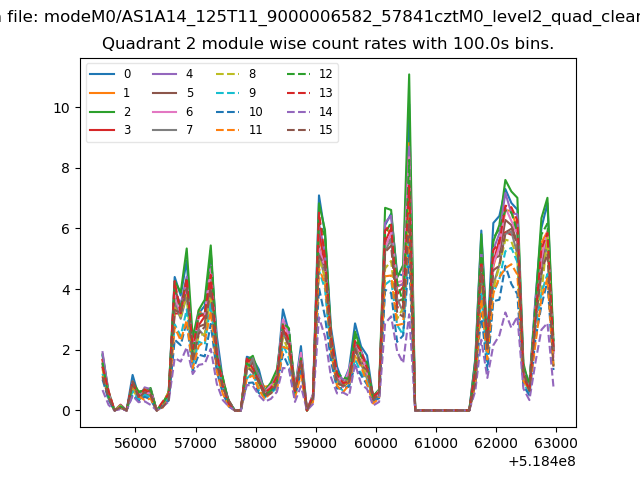

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

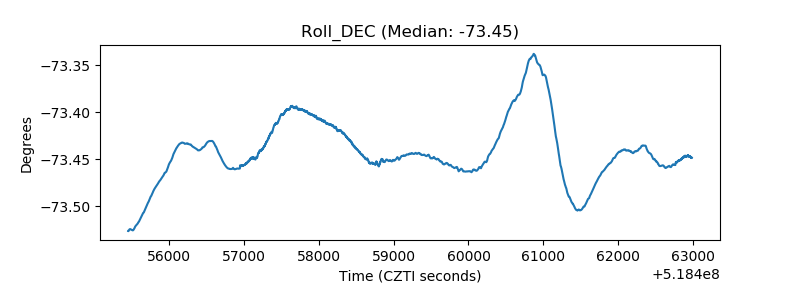

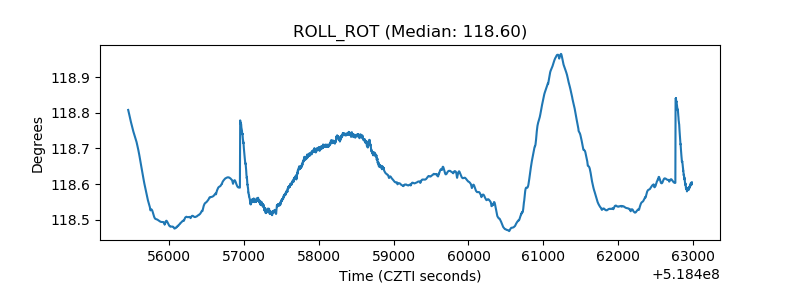

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

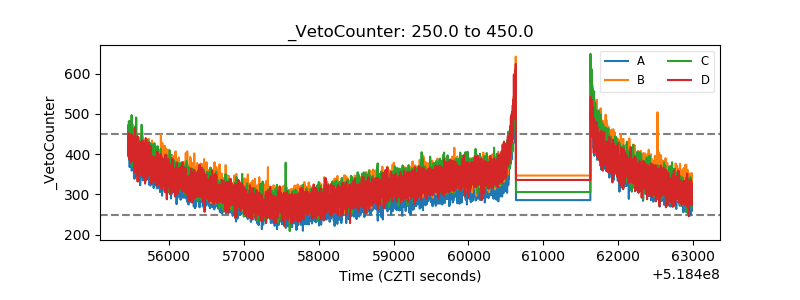

| Veto Counter |  |
