| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57846cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57846cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,800,320 | 93,839,040 |
| Size | 486.2 MB | 89.5 MB |
| Events in quadrant A | 2,945,836 | 627,713 |
| Events in quadrant B | 3,349,002 | 670,760 |
| Events in quadrant C | 8,511,677 | 503,647 |
| Events in quadrant D | 3,515,780 | 547,137 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14348 | 2 |
| B | 0 | 15111 | 2 |
| C | 0 | 30240 | 4 |
| D | 0 | 15704 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7062 | 30 | 0.424809% |
| B | 7063 | 110 | 1.557412% |
| C | 7062 | 1425 | 20.178420% |
| D | 7062 | 84 | 1.189465% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

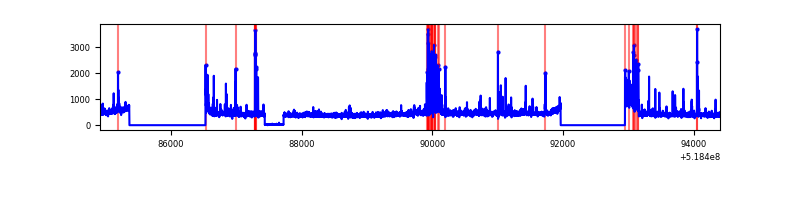

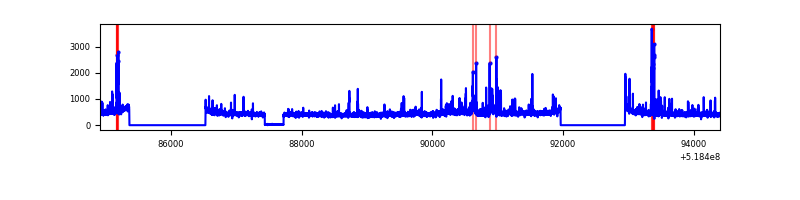

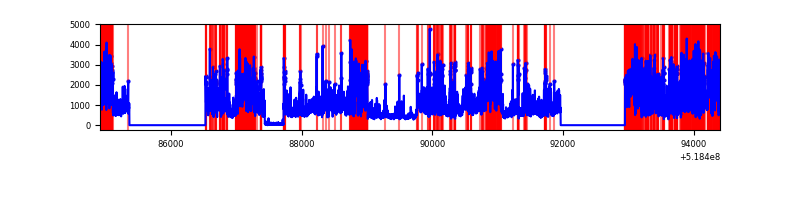

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9486 | 7334 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9487 | 7335 | 17 | 17 | 0.18% | 0.23% |  |
| C | 9485 | 7333 | 1102 | 1102 | 11.62% | 15.03% |  |
| D | 9486 | 7333 | 40 | 40 | 0.42% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 11359 | 57.78 | 754 | 735 | 183.9 |
| A | 3 | 137 | 9160 | 45.82 | 754 | 735 | 183.9 |
| A | 13 | 254 | 7905 | 38.99 | 754 | 735 | 183.9 |
| B | 4 | 142 | 155110 | 971.51 | 747 | 718 | 158.9 |
| B | 5 | 185 | 33435 | 205.87 | 747 | 718 | 158.9 |
| B | 2 | 249 | 28511 | 174.89 | 747 | 718 | 158.9 |
| C | 9 | 38 | 4513840 | 24566.68 | 676 | 671 | 183.7 |
| C | 15 | 224 | 1178360 | 6410.55 | 676 | 671 | 183.7 |
| C | 15 | 208 | 61305 | 330.05 | 676 | 671 | 183.7 |
| D | 2 | 153 | 176390 | 862.55 | 726 | 694 | 203.7 |
| D | 5 | 32 | 127482 | 622.45 | 726 | 694 | 203.7 |
| D | 12 | 110 | 105347 | 513.78 | 726 | 694 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

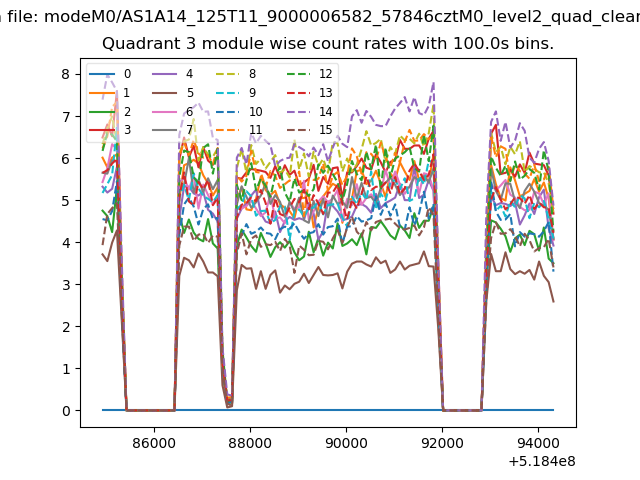

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

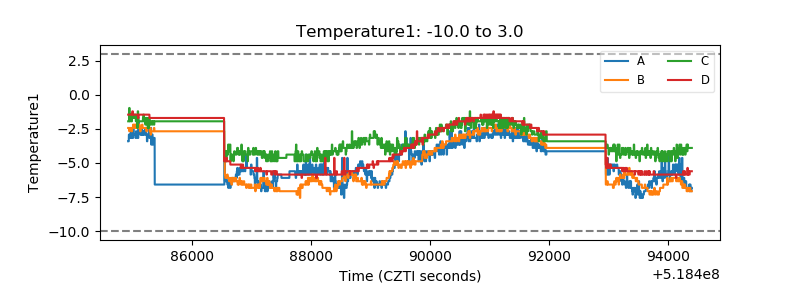

| Temperature 1 |  |
| Veto HV Monitor |  |

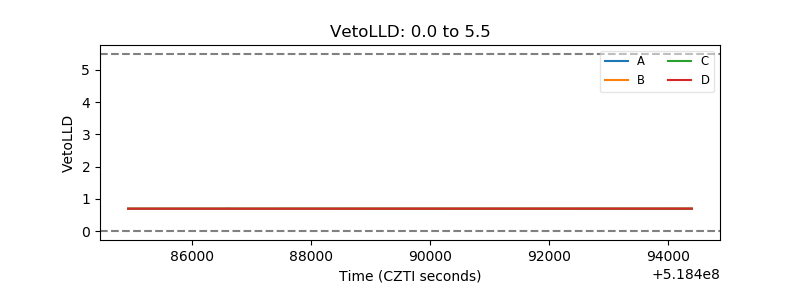

| Veto LLD |  |

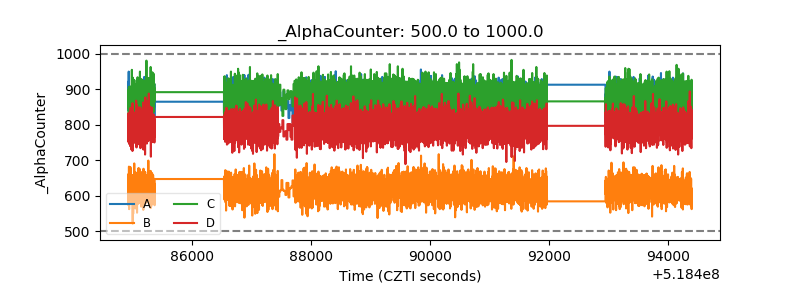

| Alpha Counter |  |

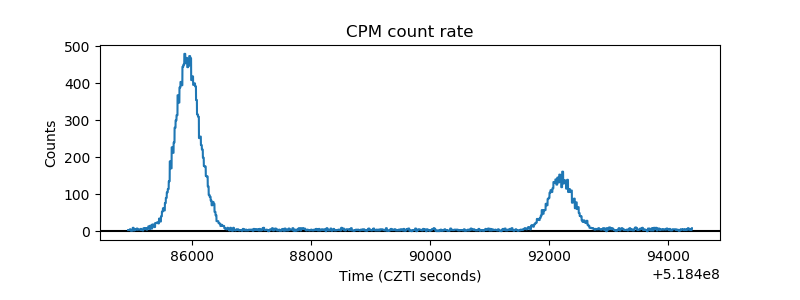

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
