| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57847cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57847cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,753,280 | 92,508,480 |
| Size | 586.3 MB | 88.2 MB |
| Events in quadrant A | 3,367,499 | 638,645 |
| Events in quadrant B | 3,739,725 | 662,570 |
| Events in quadrant C | 11,371,752 | 413,692 |
| Events in quadrant D | 3,675,465 | 547,532 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15979 | 2 |
| B | 0 | 16877 | 2 |
| C | 0 | 39220 | 2 |
| D | 0 | 16746 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7743 | 117 | 1.511042% |
| B | 7744 | 227 | 2.931302% |
| C | 7744 | 2588 | 33.419421% |
| D | 7744 | 119 | 1.536674% |

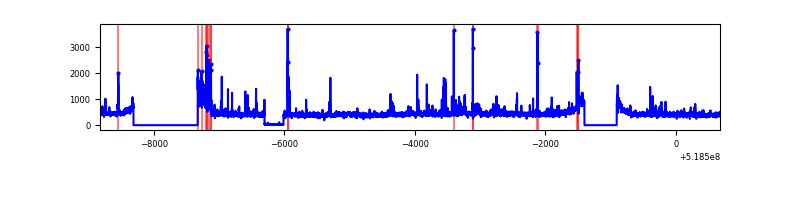

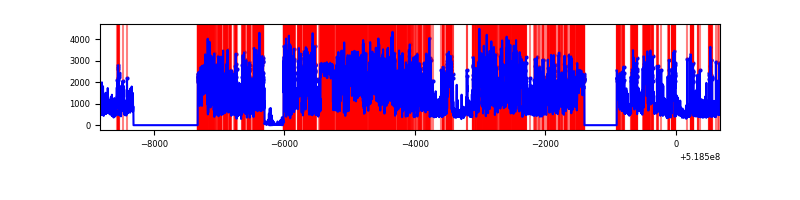

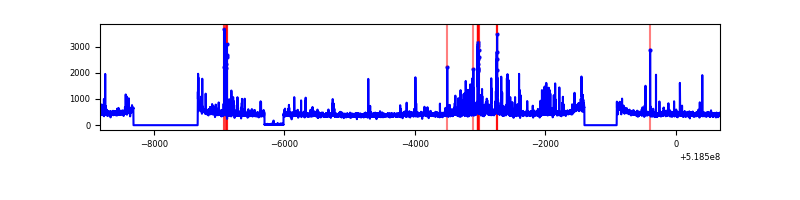

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

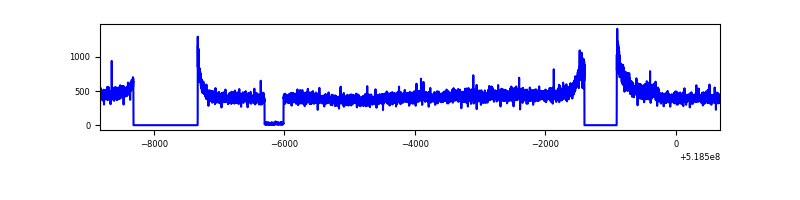

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9497 | 8019 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9498 | 8020 | 25 | 25 | 0.26% | 0.31% |  |
| C | 9498 | 7983 | 2159 | 2159 | 22.73% | 27.04% |  |
| D | 9498 | 8020 | 19 | 19 | 0.20% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 74347 | 359.16 | 835 | 814 | 204.7 |
| A | 3 | 128 | 48491 | 232.87 | 835 | 814 | 204.7 |
| A | 3 | 137 | 10234 | 46.01 | 835 | 814 | 204.7 |
| B | 2 | 249 | 171450 | 972.87 | 826 | 795 | 175.4 |
| B | 5 | 185 | 61070 | 343.62 | 826 | 795 | 175.4 |
| B | 4 | 158 | 28179 | 156.11 | 826 | 795 | 175.4 |
| C | 9 | 38 | 6794400 | 36831.33 | 689 | 682 | 184.5 |
| C | 15 | 224 | 1690968 | 9163.68 | 689 | 682 | 184.5 |
| C | 15 | 208 | 59531 | 319.04 | 689 | 682 | 184.5 |
| D | 5 | 32 | 125619 | 549.01 | 808 | 770 | 227.4 |
| D | 3 | 12 | 84209 | 366.92 | 808 | 770 | 227.4 |
| D | 2 | 249 | 53220 | 230.64 | 808 | 770 | 227.4 |

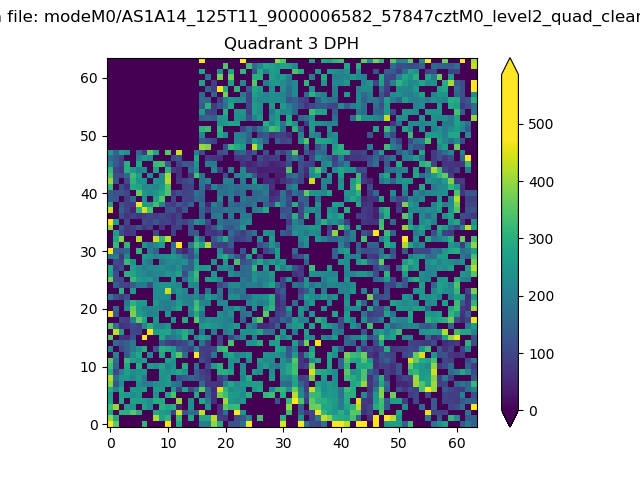

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |

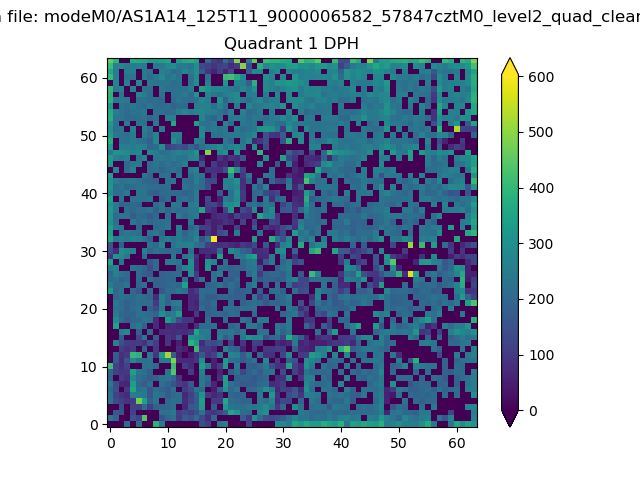

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

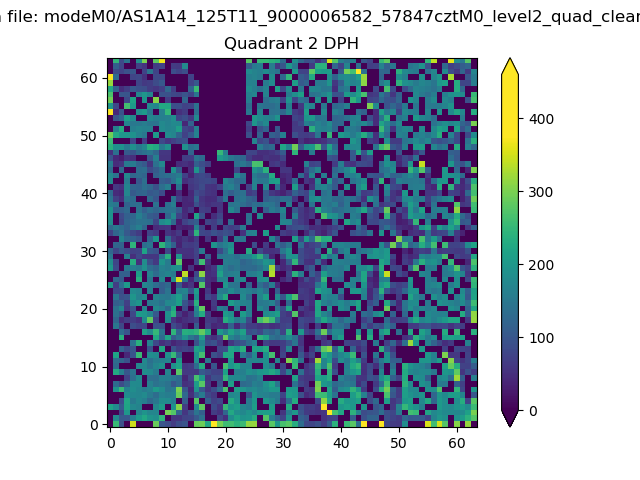

Quadrant C |

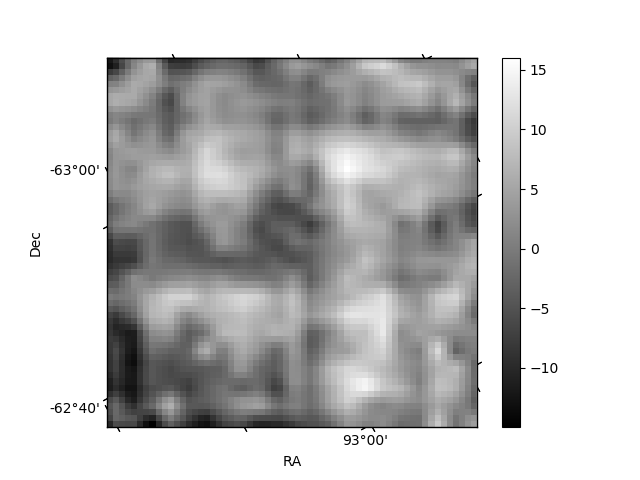

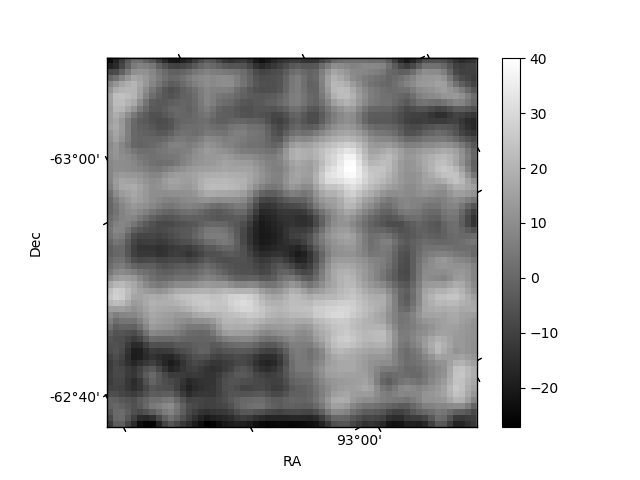

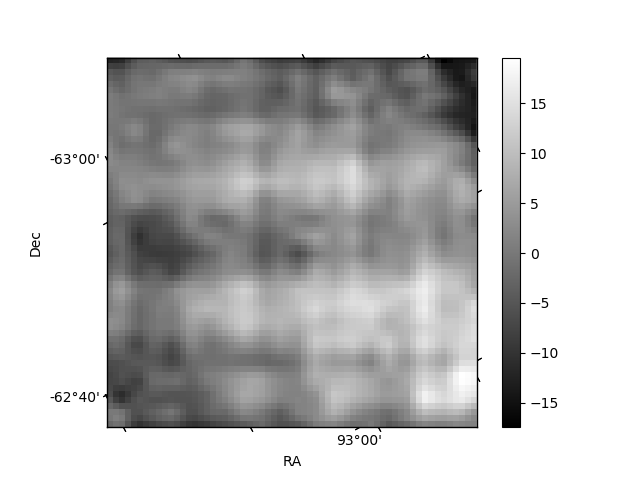

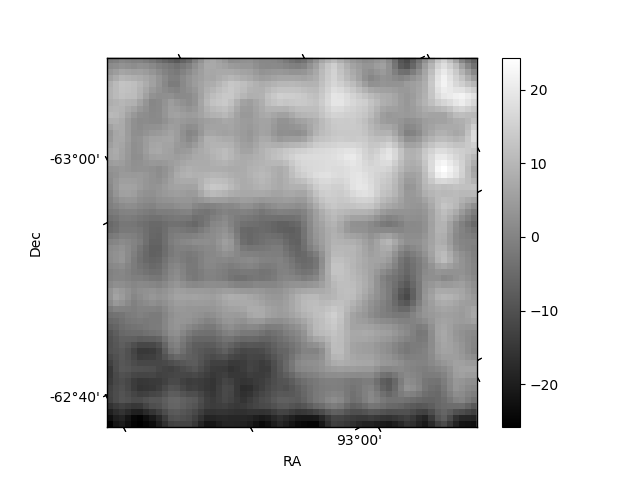

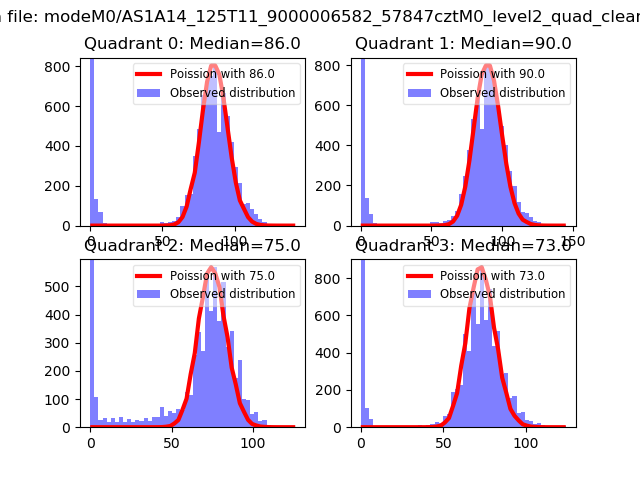

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

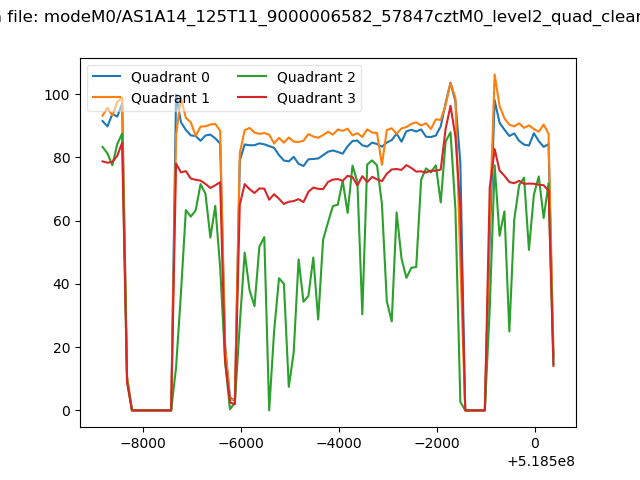

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

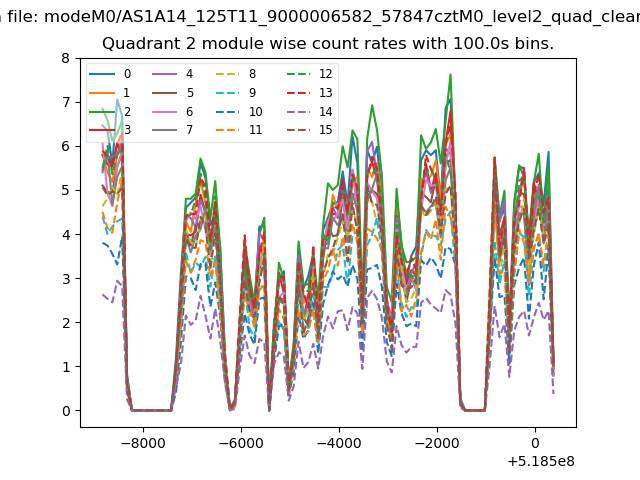

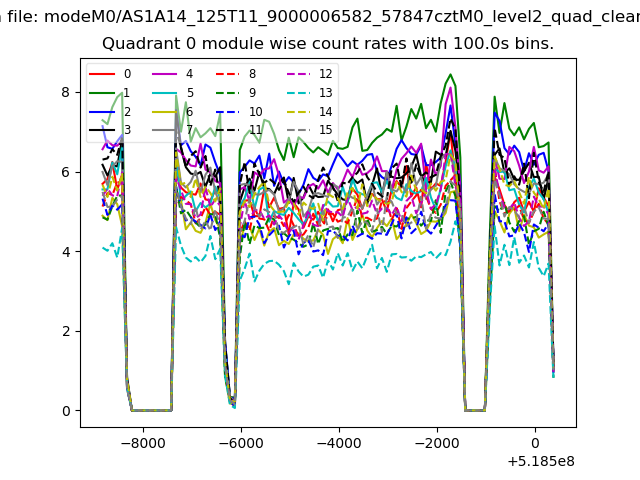

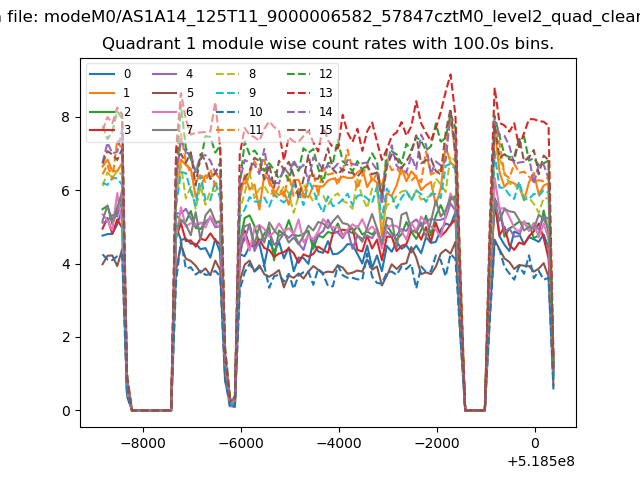

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

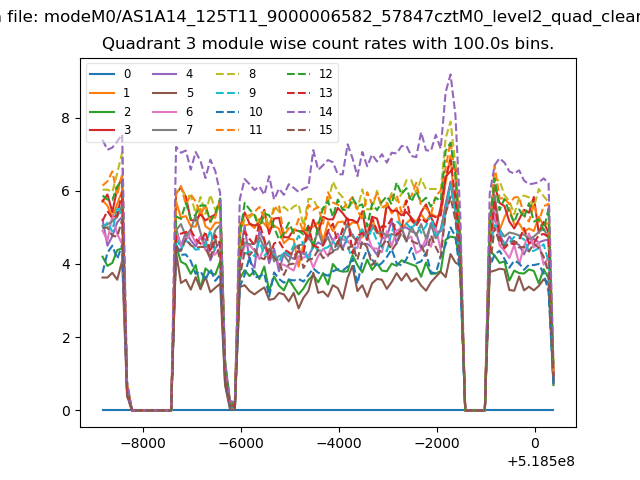

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

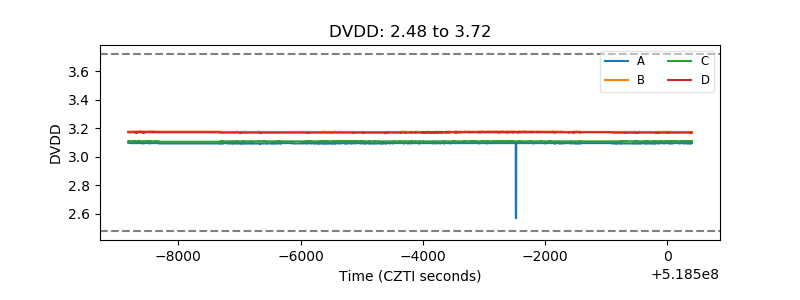

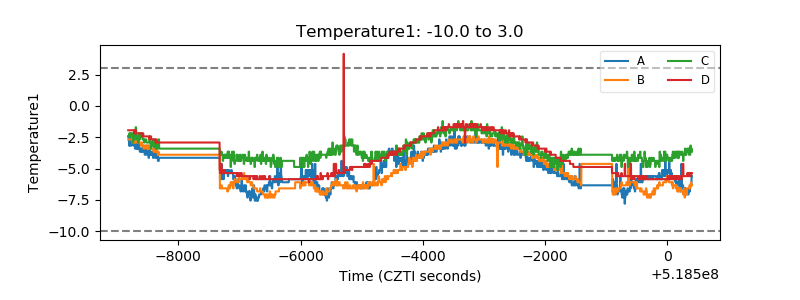

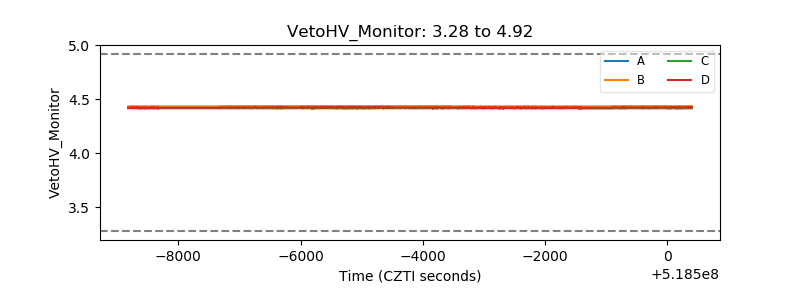

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

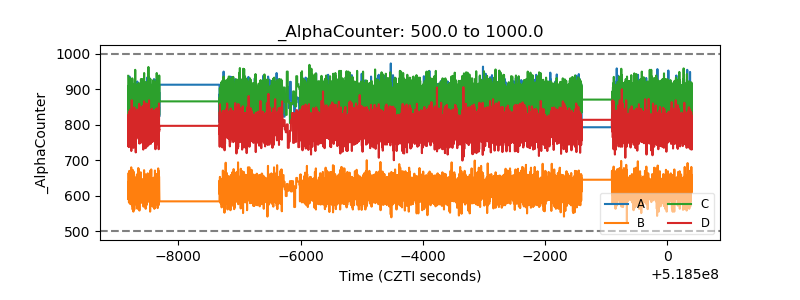

| Alpha Counter |  |

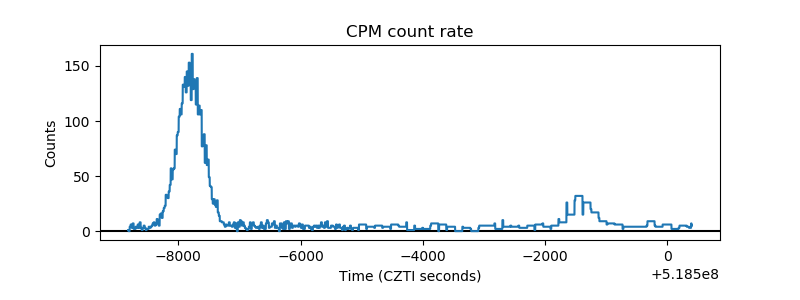

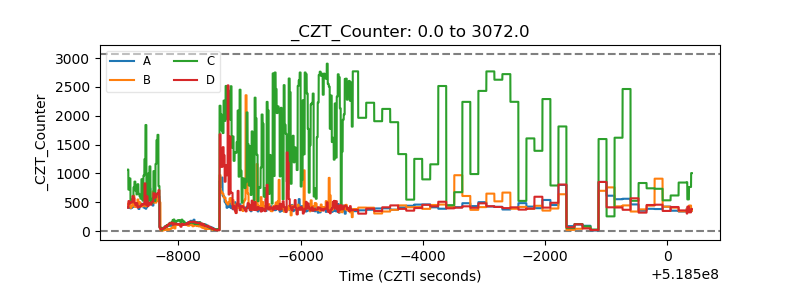

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

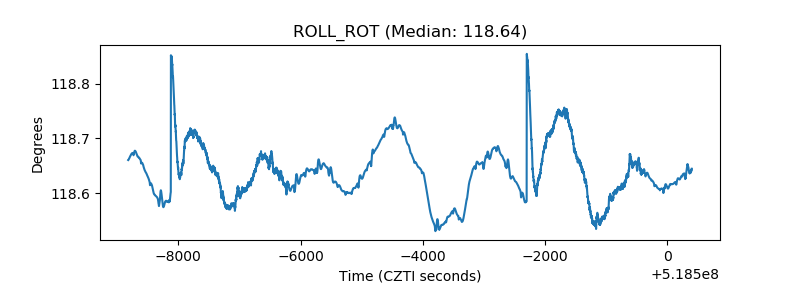

| _ROLL_ROT |  |

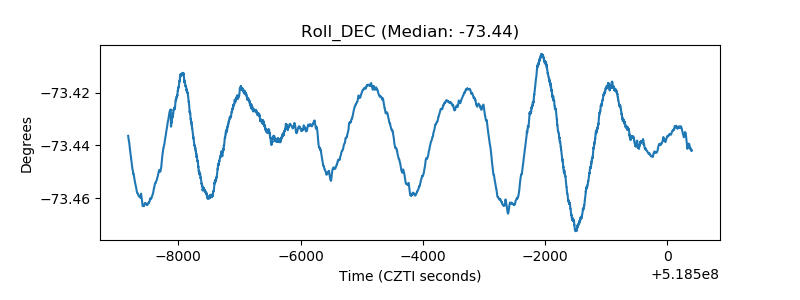

| _Roll_DEC |  |

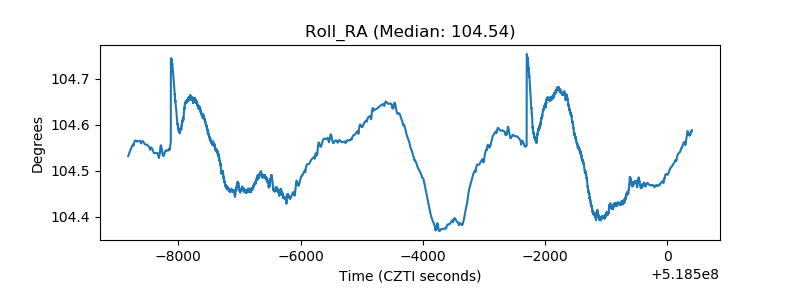

| _Roll_RA |  |

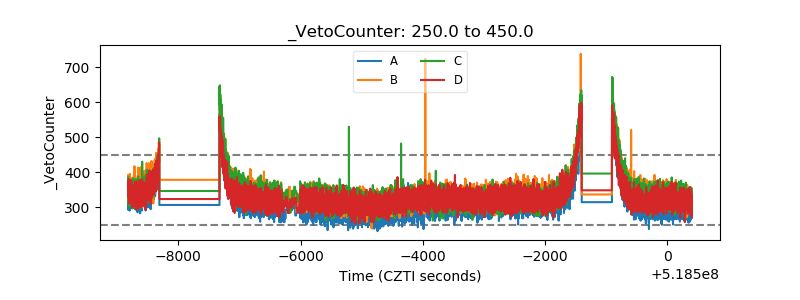

| Veto Counter |  |
