| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57848cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57848cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,886,400 | 109,379,520 |
| Size | 465.3 MB | 104.3 MB |
| Events in quadrant A | 3,225,638 | 725,187 |
| Events in quadrant B | 3,456,127 | 774,525 |
| Events in quadrant C | 7,033,732 | 632,803 |
| Events in quadrant D | 3,746,871 | 644,672 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15662 | 0 |
| B | 0 | 16180 | 0 |
| C | 0 | 26316 | 4 |
| D | 0 | 16944 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7688 | 21 | 0.273153% |
| B | 7689 | 100 | 1.300559% |
| C | 7688 | 779 | 10.132674% |
| D | 7688 | 45 | 0.585328% |

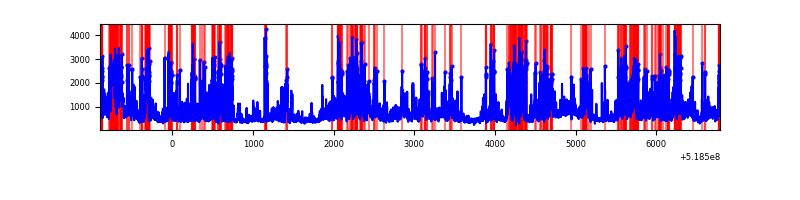

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7688 | 7688 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7689 | 7689 | 25 | 25 | 0.33% | 0.33% |  |
| C | 7688 | 7688 | 569 | 569 | 7.40% | 7.40% |  |
| D | 7688 | 7688 | 40 | 40 | 0.52% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 40339 | 197.66 | 814 | 793 | 200.1 |
| A | 3 | 14 | 34125 | 166.6 | 814 | 793 | 200.1 |
| A | 3 | 137 | 9982 | 45.93 | 814 | 793 | 200.1 |
| B | 5 | 185 | 117553 | 678.9 | 808 | 778 | 172.0 |
| B | 7 | 252 | 30859 | 174.88 | 808 | 778 | 172.0 |
| B | 10 | 247 | 28748 | 162.61 | 808 | 778 | 172.0 |
| C | 9 | 38 | 2350616 | 11326.5 | 770 | 760 | 207.5 |
| C | 15 | 224 | 1351433 | 6510.36 | 770 | 760 | 207.5 |
| C | 15 | 208 | 104281 | 498.98 | 770 | 760 | 207.5 |
| D | 3 | 12 | 147309 | 666.93 | 788 | 752 | 219.7 |
| D | 2 | 62 | 125492 | 567.65 | 788 | 752 | 219.7 |
| D | 2 | 249 | 118930 | 537.79 | 788 | 752 | 219.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

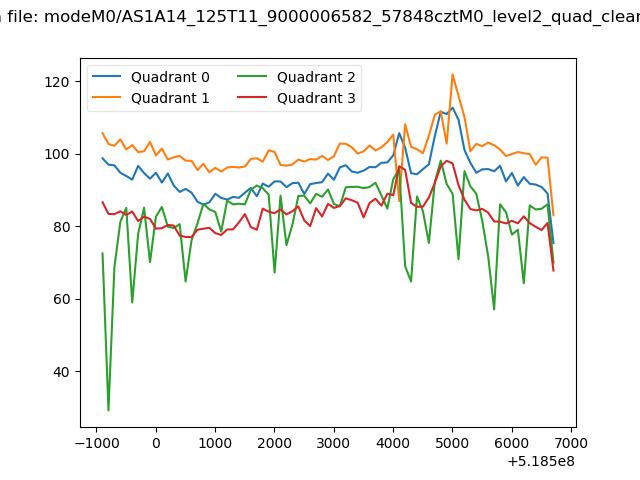

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

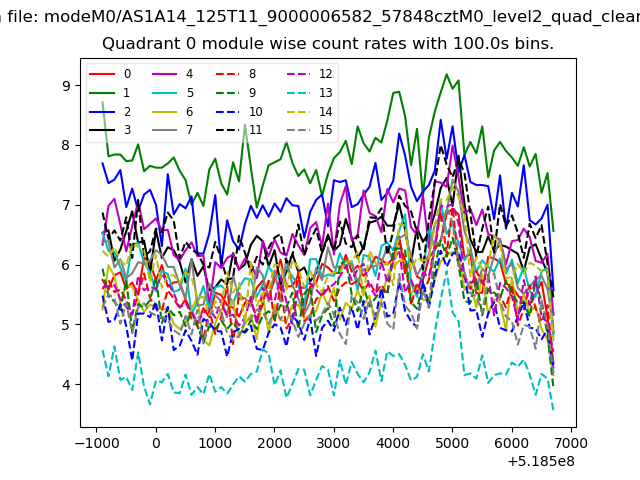

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

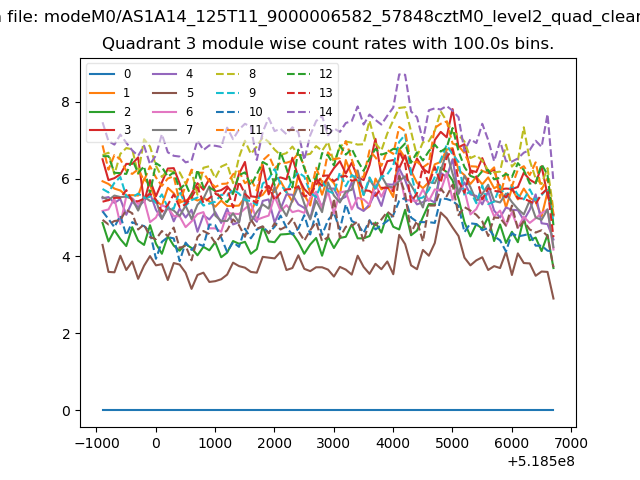

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

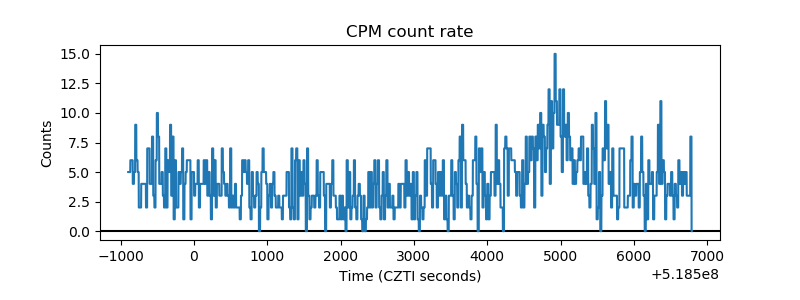

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

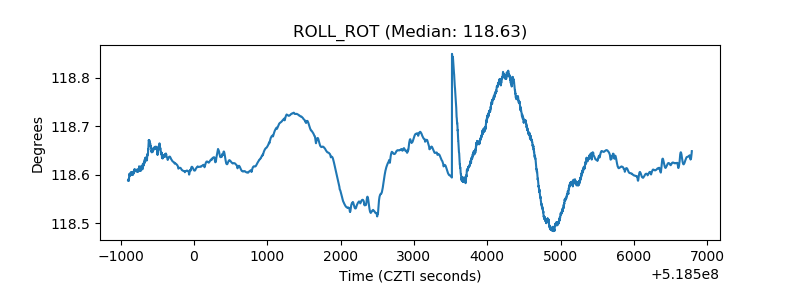

| _ROLL_ROT |  |
| _Roll_DEC |  |

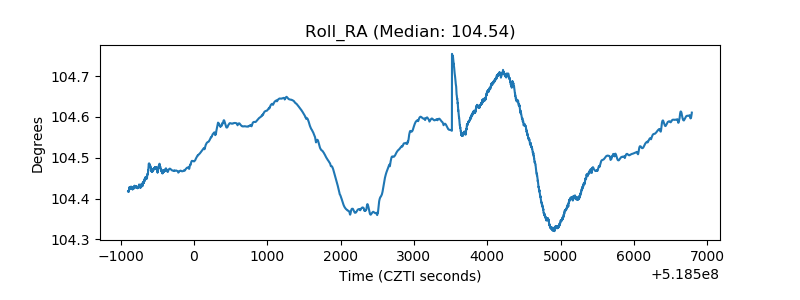

| _Roll_RA |  |

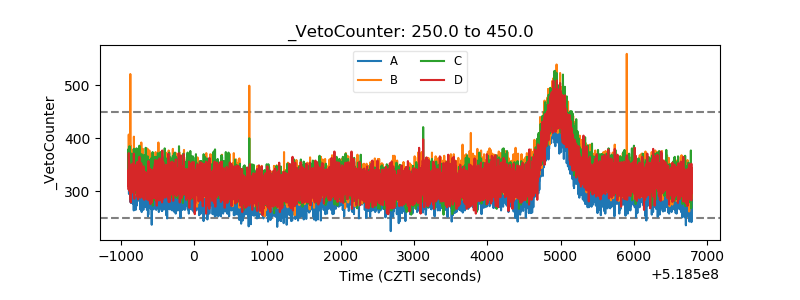

| Veto Counter |  |
