| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57849cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57849cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,973,760 | 106,718,400 |
| Size | 502.6 MB | 101.8 MB |
| Events in quadrant A | 3,505,261 | 708,801 |
| Events in quadrant B | 3,459,353 | 760,625 |
| Events in quadrant C | 8,255,622 | 603,149 |
| Events in quadrant D | 3,699,350 | 632,293 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16350 | 0 |
| B | 0 | 15937 | 0 |
| C | 0 | 29860 | 2 |
| D | 0 | 16413 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7563 | 6 | 0.079334% |
| B | 7564 | 57 | 0.753570% |
| C | 7563 | 1015 | 13.420600% |
| D | 7563 | 35 | 0.462779% |

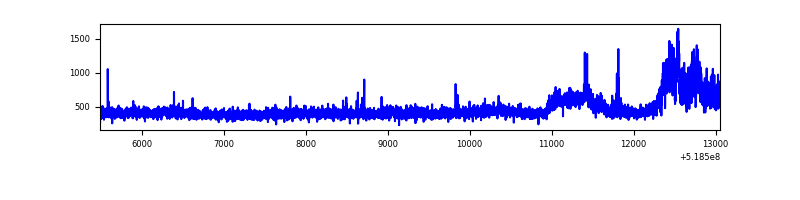

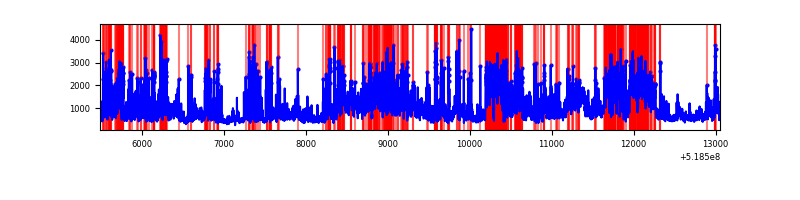

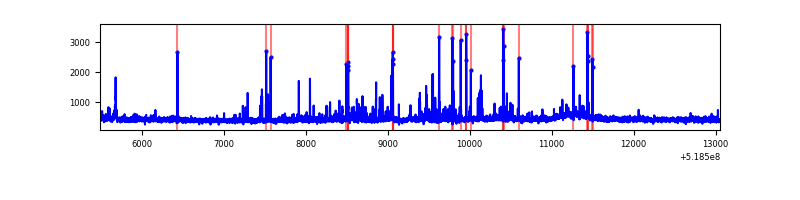

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 7563 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7564 | 7564 | 27 | 27 | 0.36% | 0.36% |  |
| C | 7563 | 7563 | 773 | 773 | 10.22% | 10.22% |  |
| D | 7563 | 7563 | 38 | 38 | 0.50% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 341123 | 1733.86 | 794 | 774 | 196.3 |
| A | 3 | 14 | 65222 | 328.32 | 794 | 774 | 196.3 |
| A | 3 | 128 | 10569 | 49.9 | 794 | 774 | 196.3 |
| B | 7 | 252 | 112832 | 663.27 | 787 | 755 | 169.0 |
| B | 0 | 153 | 48587 | 283.07 | 787 | 755 | 169.0 |
| B | 5 | 185 | 48086 | 280.1 | 787 | 755 | 169.0 |
| C | 9 | 38 | 3577304 | 17687.36 | 746 | 738 | 202.2 |
| C | 15 | 224 | 1480880 | 7319.82 | 746 | 738 | 202.2 |
| C | 12 | 2 | 100054 | 491.15 | 746 | 738 | 202.2 |
| D | 3 | 224 | 131748 | 606.52 | 770 | 734 | 216.0 |
| D | 12 | 110 | 122447 | 563.46 | 770 | 734 | 216.0 |
| D | 3 | 12 | 121373 | 558.49 | 770 | 734 | 216.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

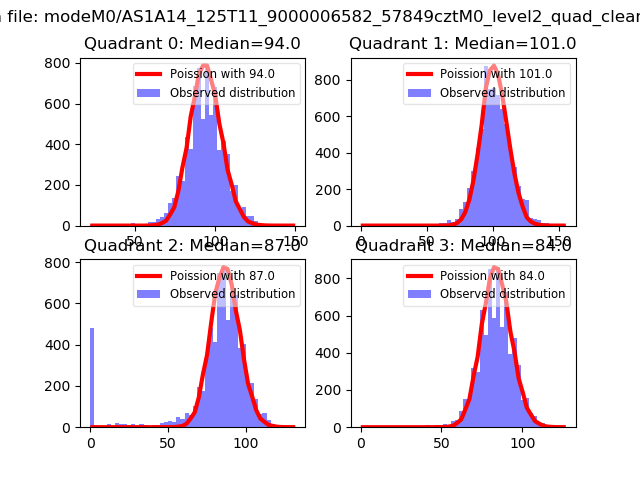

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

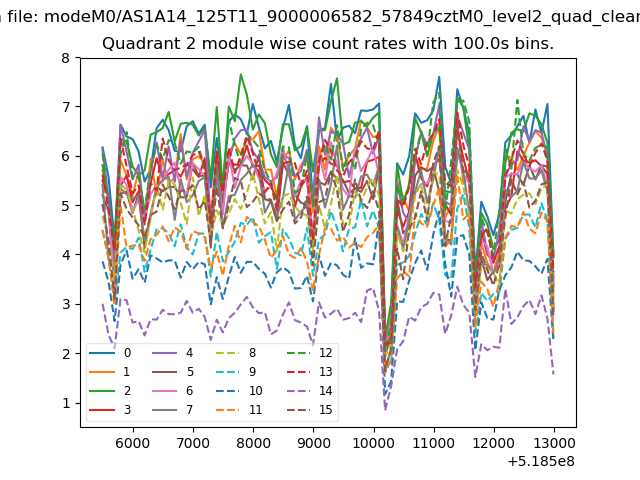

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

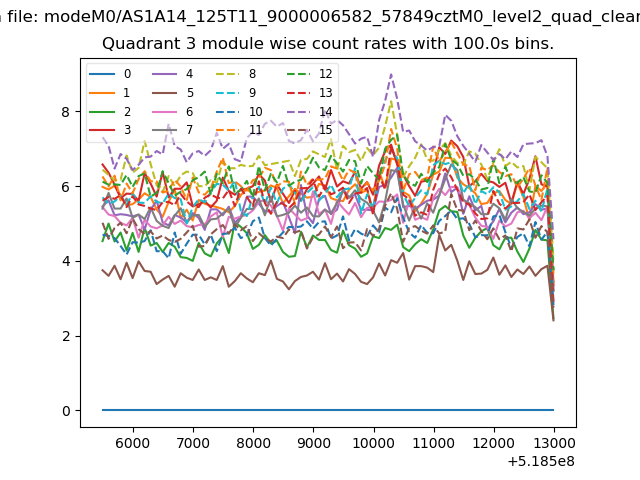

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

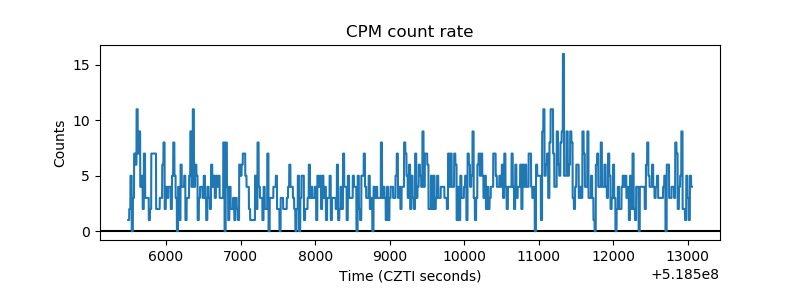

| _CPM_Rate |  |

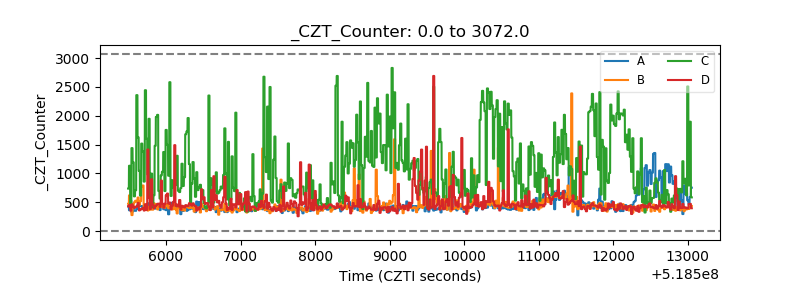

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
