| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57853cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57853cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,771,770,240 | 342,843,840 |
| Size | 1.7 GB | 327.0 MB |
| Events in quadrant A | 11,433,101 | 2,276,351 |
| Events in quadrant B | 11,667,036 | 2,421,676 |
| Events in quadrant C | 21,536,285 | 2,026,978 |
| Events in quadrant D | 19,078,127 | 1,989,130 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 488 | 0 |
| B | 0 | 488 | 0 |
| C | 0 | 488 | 0 |
| D | 0 | 488 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51473 | 3 |
| B | 0 | 52431 | 3 |
| C | 0 | 81036 | 3 |
| D | 0 | 73824 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 24212 | 280 | 1.156451% |
| B | 24212 | 490 | 2.023790% |
| C | 24212 | 2125 | 8.776640% |
| D | 24212 | 1356 | 5.600529% |

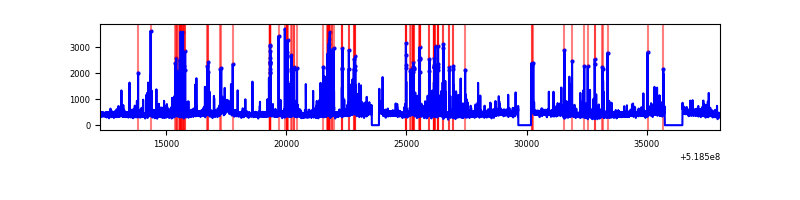

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25777 | 24214 | 16 | 16 | 0.06% | 0.07% |  |
| B | 25777 | 24214 | 129 | 129 | 0.50% | 0.53% |  |
| C | 25777 | 24214 | 1539 | 1539 | 5.97% | 6.36% |  |
| D | 25777 | 24214 | 1310 | 1310 | 5.08% | 5.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 1130187 | 1774.67 | 2585 | 2521 | 635.4 |
| A | 7 | 223 | 85763 | 131.0 | 2585 | 2521 | 635.4 |
| A | 13 | 248 | 60999 | 92.03 | 2585 | 2521 | 635.4 |
| B | 5 | 185 | 506286 | 929.87 | 2545 | 2445 | 541.8 |
| B | 7 | 252 | 400784 | 735.16 | 2545 | 2445 | 541.8 |
| B | 2 | 249 | 220120 | 401.73 | 2545 | 2445 | 541.8 |
| C | 9 | 38 | 7052057 | 10762.48 | 2415 | 2384 | 655.0 |
| C | 15 | 224 | 4211000 | 6425.14 | 2415 | 2384 | 655.0 |
| C | 12 | 2 | 186115 | 280.49 | 2415 | 2384 | 655.0 |
| D | 12 | 110 | 5470751 | 7856.68 | 2474 | 2366 | 696.0 |
| D | 2 | 62 | 1904153 | 2732.38 | 2474 | 2366 | 696.0 |
| D | 2 | 153 | 645289 | 923.72 | 2474 | 2366 | 696.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

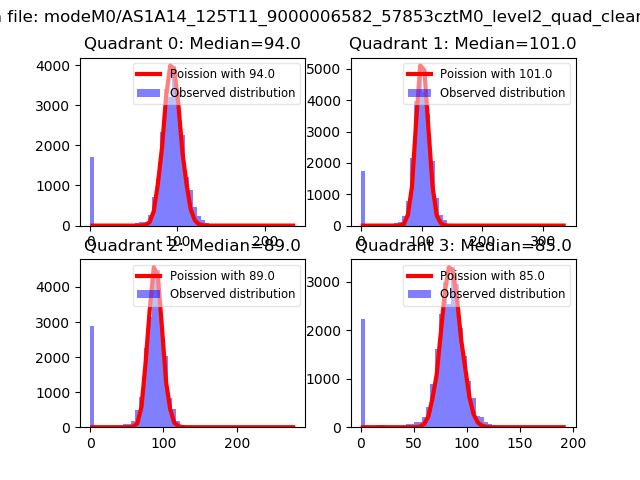

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

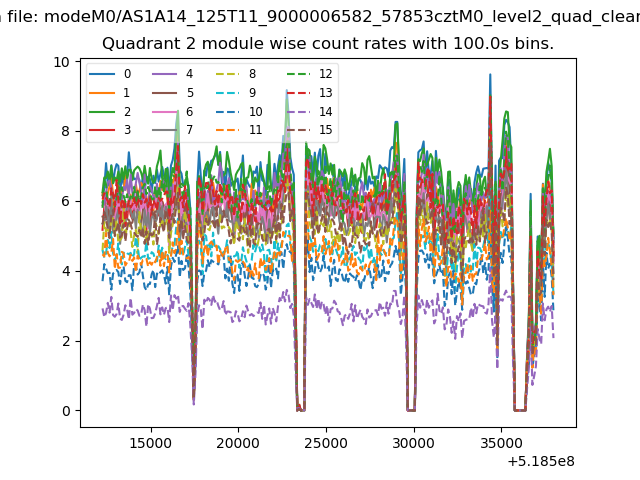

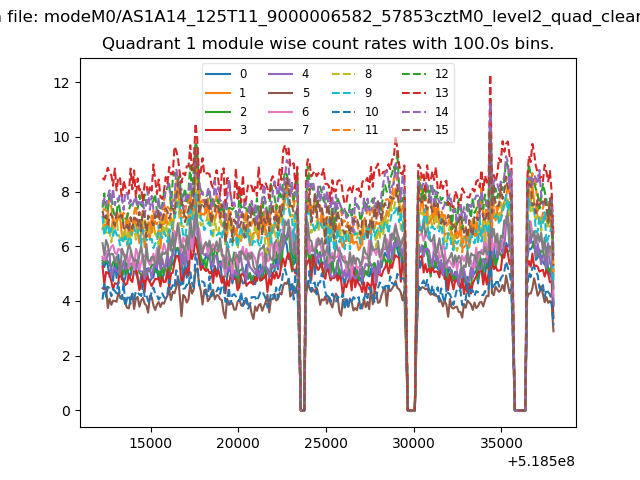

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

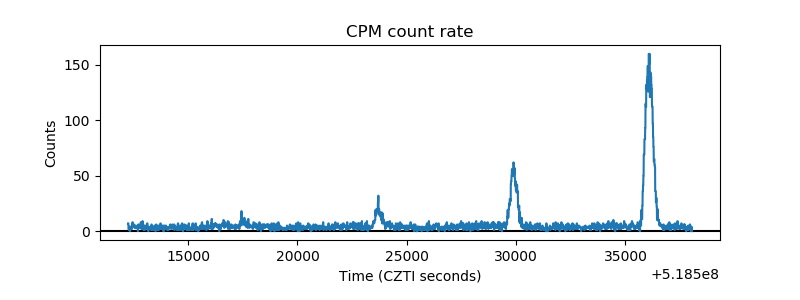

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

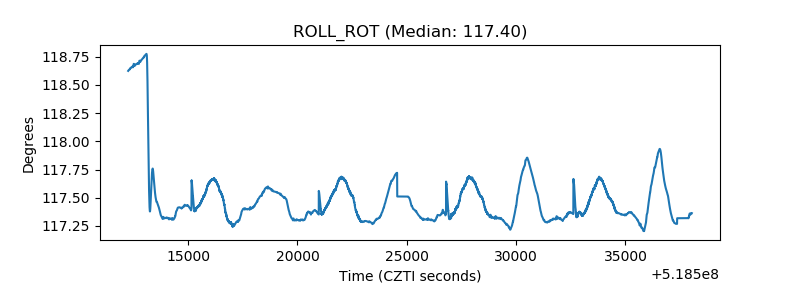

| _ROLL_ROT |  |
| _Roll_DEC |  |

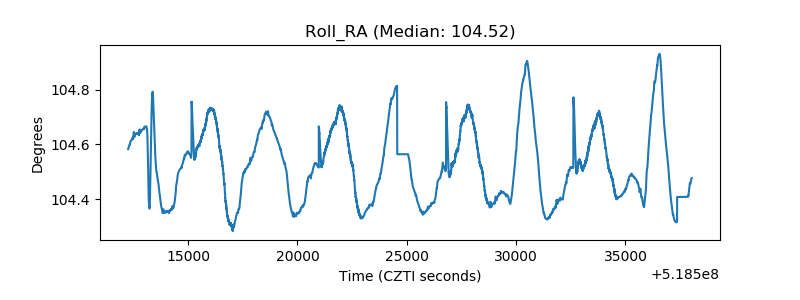

| _Roll_RA |  |
| Veto Counter |  |
