| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57854cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57854cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,433,920 | 90,236,160 |
| Size | 443.9 MB | 86.1 MB |
| Events in quadrant A | 3,212,410 | 613,704 |
| Events in quadrant B | 2,788,793 | 652,760 |
| Events in quadrant C | 7,572,138 | 467,846 |
| Events in quadrant D | 3,159,894 | 553,158 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14140 | 1 |
| B | 0 | 13075 | 2 |
| C | 0 | 26949 | 1 |
| D | 0 | 14092 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6372 | 47 | 0.737602% |
| B | 6371 | 26 | 0.408099% |
| C | 6371 | 1483 | 23.277350% |
| D | 6371 | 35 | 0.549364% |

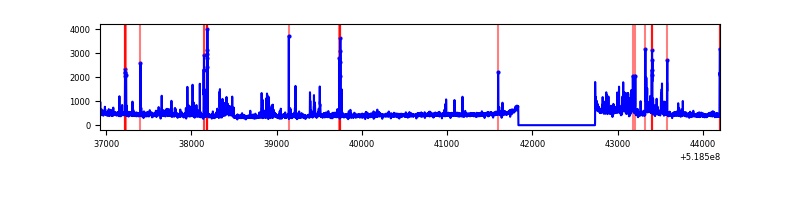

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7272 | 6373 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7271 | 6372 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7271 | 6371 | 1325 | 1325 | 18.22% | 20.80% |  |
| D | 7271 | 6372 | 31 | 31 | 0.43% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 513033 | 3060.26 | 678 | 660 | 167.4 |
| A | 4 | 3 | 67986 | 402.12 | 678 | 660 | 167.4 |
| A | 3 | 128 | 11975 | 67.58 | 678 | 660 | 167.4 |
| B | 2 | 249 | 24622 | 168.31 | 667 | 643 | 142.5 |
| B | 0 | 63 | 22512 | 153.5 | 667 | 643 | 142.5 |
| B | 0 | 183 | 19638 | 133.33 | 667 | 643 | 142.5 |
| C | 15 | 224 | 4839089 | 30358.47 | 579 | 573 | 159.4 |
| C | 9 | 38 | 170228 | 1064.47 | 579 | 573 | 159.4 |
| C | 15 | 208 | 105411 | 657.79 | 579 | 573 | 159.4 |
| D | 12 | 110 | 282274 | 1514.04 | 654 | 625 | 186.0 |
| D | 3 | 12 | 78447 | 418.34 | 654 | 625 | 186.0 |
| D | 8 | 240 | 62498 | 332.61 | 654 | 625 | 186.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

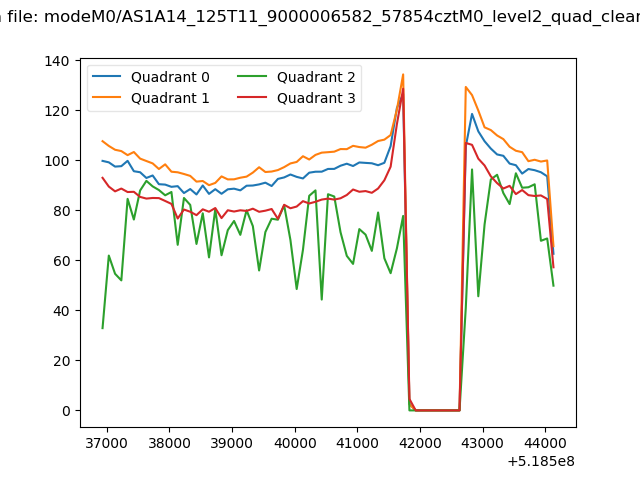

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

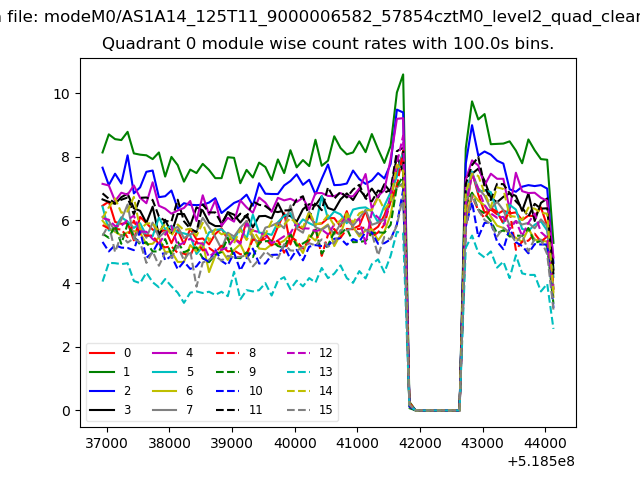

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

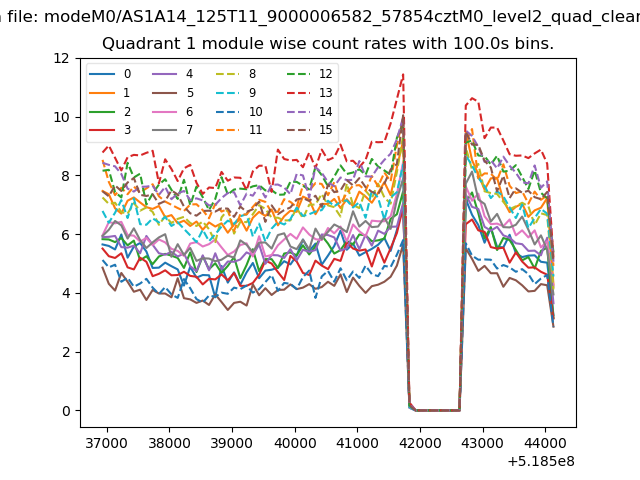

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

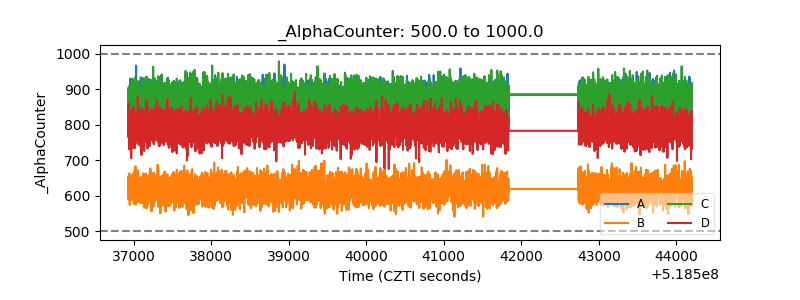

| Alpha Counter |  |
| _CPM_Rate |  |

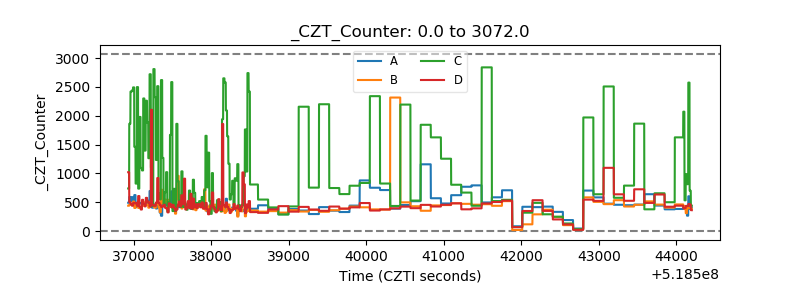

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

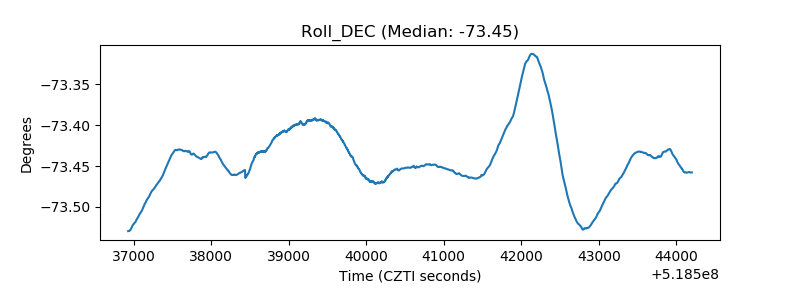

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
