| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57856cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57856cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,002,560 | 85,536,000 |
| Size | 459.7 MB | 81.6 MB |
| Events in quadrant A | 2,865,476 | 594,685 |
| Events in quadrant B | 2,699,844 | 629,980 |
| Events in quadrant C | 8,202,226 | 410,367 |
| Events in quadrant D | 3,601,391 | 529,301 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12703 | 1 |
| B | 0 | 12572 | 1 |
| C | 0 | 28578 | 1 |
| D | 0 | 15085 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6085 | 23 | 0.377979% |
| B | 6085 | 29 | 0.476582% |
| C | 6085 | 1855 | 30.484799% |
| D | 6085 | 51 | 0.838127% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7130 | 6086 | 13 | 13 | 0.18% | 0.21% |  |
| B | 7130 | 6086 | 9 | 9 | 0.13% | 0.15% |  |
| C | 7130 | 6086 | 1736 | 1736 | 24.35% | 28.52% |  |
| D | 7130 | 6086 | 57 | 57 | 0.80% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 222653 | 1390.35 | 645 | 629 | 159.7 |
| A | 4 | 3 | 66136 | 410.22 | 645 | 629 | 159.7 |
| A | 3 | 128 | 44123 | 272.37 | 645 | 629 | 159.7 |
| B | 5 | 185 | 50476 | 367.96 | 636 | 614 | 135.5 |
| B | 0 | 63 | 34601 | 250.81 | 636 | 614 | 135.5 |
| B | 7 | 252 | 21732 | 155.84 | 636 | 614 | 135.5 |
| C | 15 | 224 | 5987456 | 41713.38 | 523 | 518 | 143.5 |
| C | 6 | 223 | 44704 | 307.86 | 523 | 518 | 143.5 |
| C | 12 | 250 | 32152 | 220.41 | 523 | 518 | 143.5 |
| D | 12 | 110 | 846938 | 4841.36 | 617 | 589 | 174.8 |
| D | 5 | 32 | 47437 | 267.98 | 617 | 589 | 174.8 |
| D | 5 | 173 | 41870 | 236.14 | 617 | 589 | 174.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

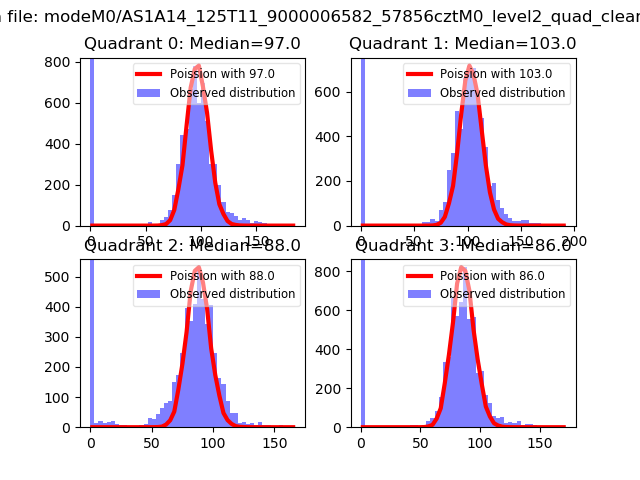

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

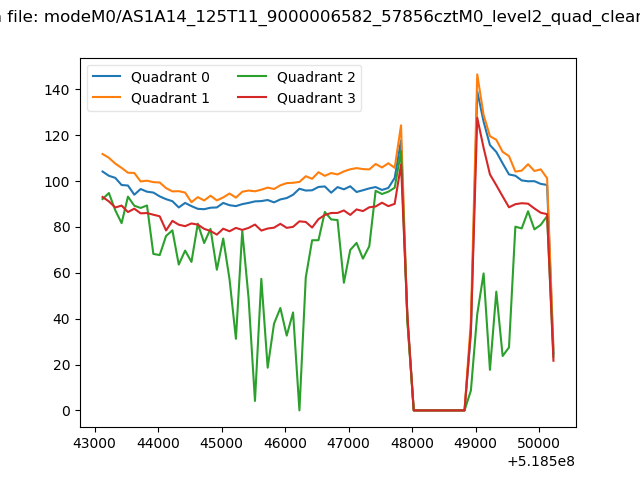

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

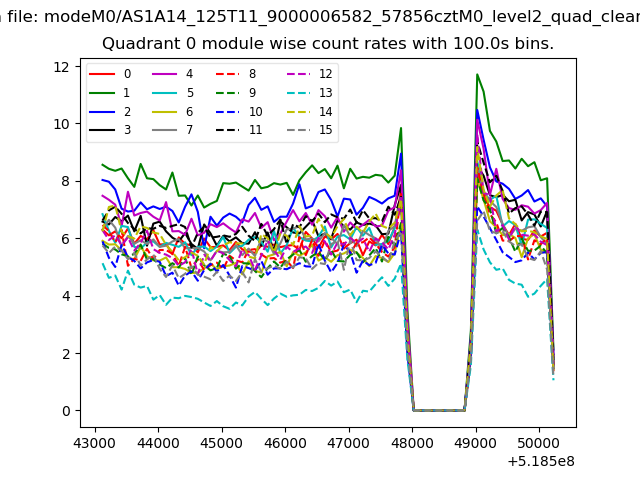

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

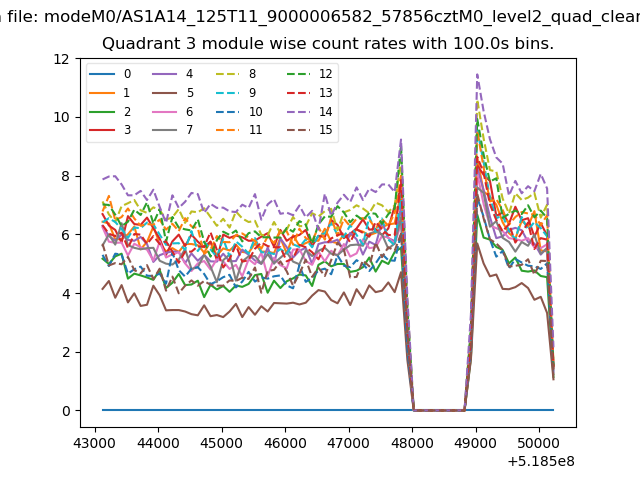

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

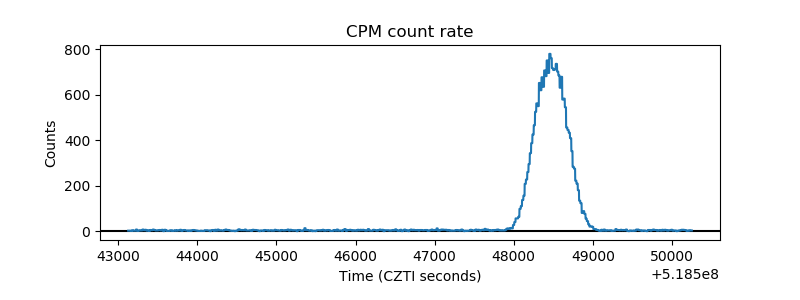

| _CPM_Rate |  |

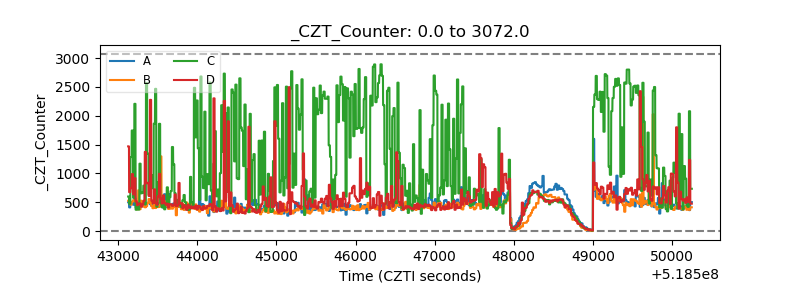

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

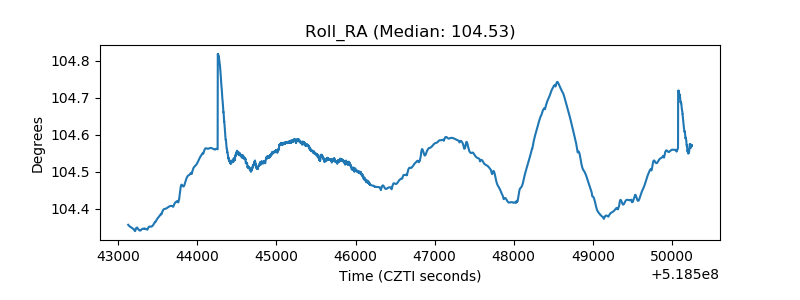

| _Roll_RA |  |

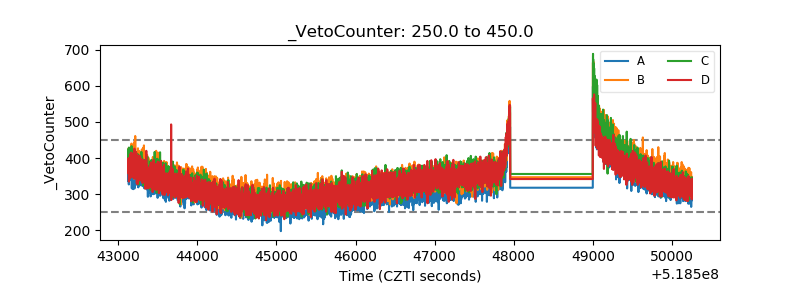

| Veto Counter |  |
