| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57857cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57857cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,194,880 | 92,770,560 |
| Size | 478.0 MB | 88.5 MB |
| Events in quadrant A | 3,073,786 | 646,814 |
| Events in quadrant B | 2,999,806 | 687,146 |
| Events in quadrant C | 8,211,589 | 454,142 |
| Events in quadrant D | 3,768,276 | 572,516 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13465 | 2 |
| B | 0 | 13674 | 8 |
| C | 0 | 28867 | 16 |
| D | 0 | 15776 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 1 |
| C | 0 | 17 | 1 |
| D | 0 | 18 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6422 | 22 | 0.342572% |
| B | 6420 | 56 | 0.872274% |
| C | 6420 | 1831 | 28.520249% |
| D | 6421 | 42 | 0.654104% |

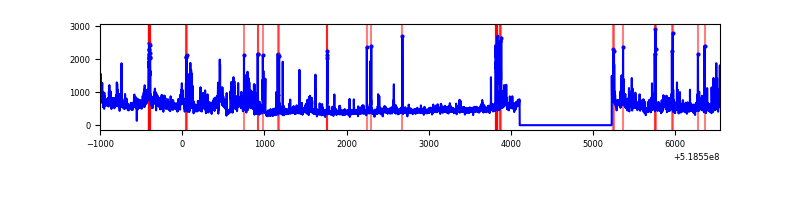

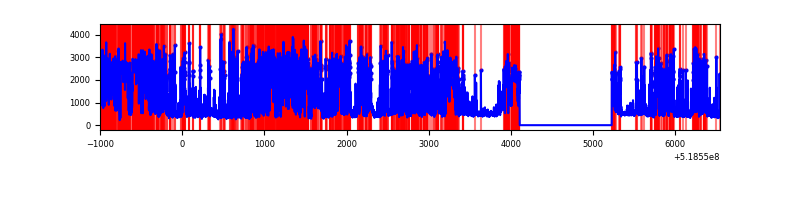

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7542 | 6422 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7542 | 6423 | 27 | 27 | 0.36% | 0.42% |  |
| C | 7542 | 6422 | 1643 | 1643 | 21.78% | 25.58% |  |
| D | 7542 | 6423 | 50 | 50 | 0.66% | 0.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 278197 | 1614.07 | 696 | 679 | 171.9 |
| A | 3 | 128 | 50160 | 287.79 | 696 | 679 | 171.9 |
| A | 3 | 94 | 20914 | 117.69 | 696 | 679 | 171.9 |
| B | 5 | 185 | 137834 | 940.31 | 687 | 663 | 145.9 |
| B | 0 | 63 | 33432 | 224.63 | 687 | 663 | 145.9 |
| B | 7 | 252 | 33323 | 223.89 | 687 | 663 | 145.9 |
| C | 15 | 224 | 5777097 | 37363.59 | 563 | 559 | 154.6 |
| C | 1 | 16 | 65781 | 421.87 | 563 | 559 | 154.6 |
| C | 6 | 223 | 51509 | 329.55 | 563 | 559 | 154.6 |
| D | 12 | 110 | 806628 | 4266.2 | 662 | 632 | 188.9 |
| D | 8 | 240 | 81377 | 427.39 | 662 | 632 | 188.9 |
| D | 3 | 12 | 53159 | 278.03 | 662 | 632 | 188.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

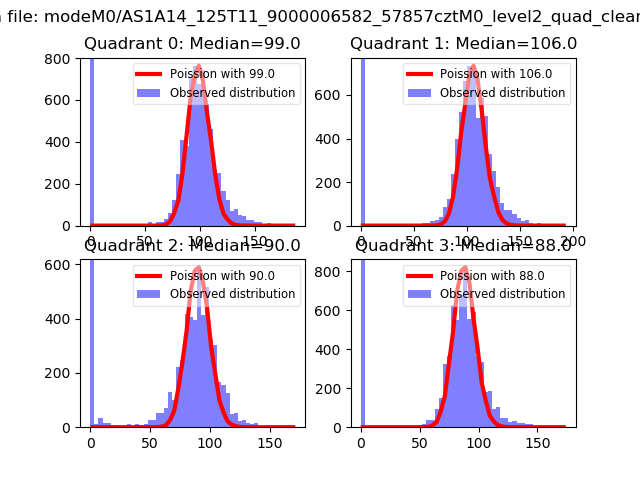

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

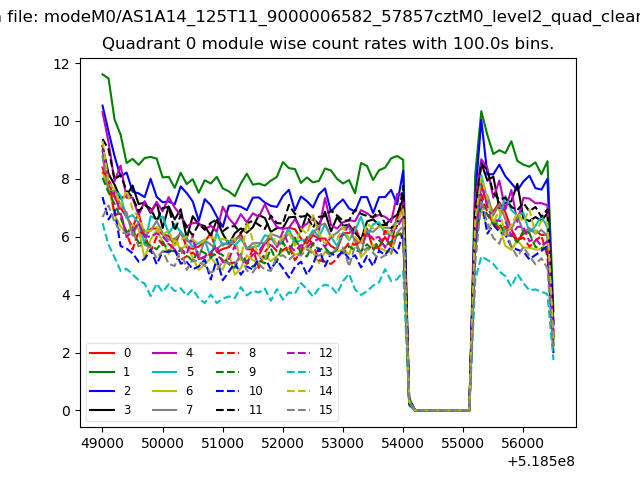

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

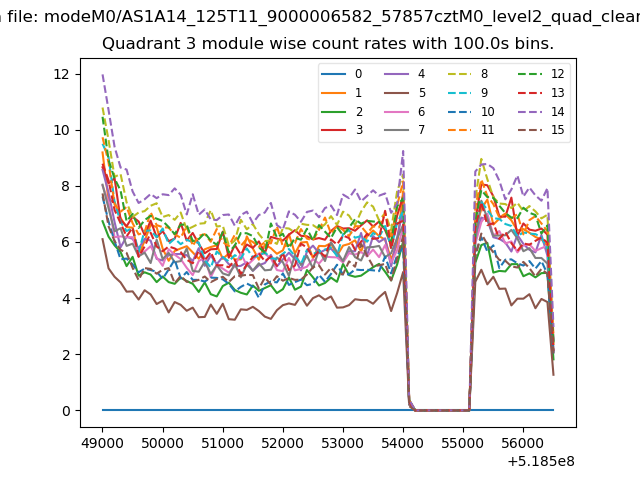

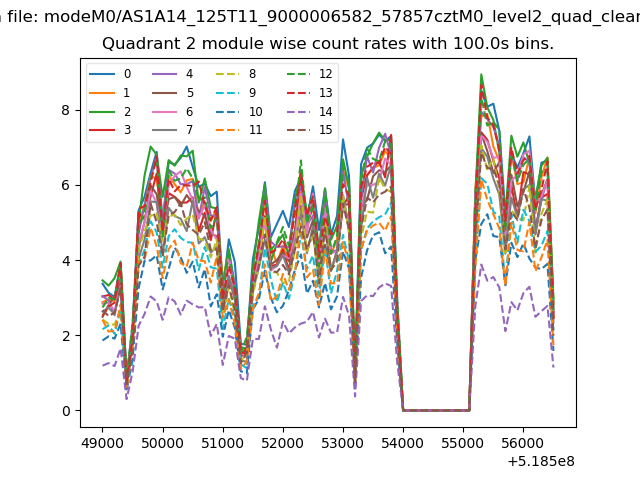

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

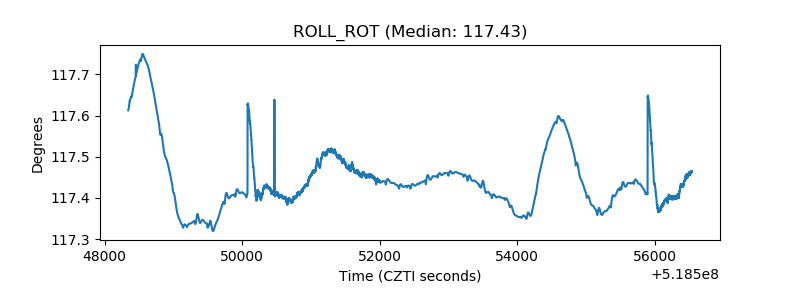

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
