| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57858cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57858cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,455,360 | 89,542,080 |
| Size | 424.8 MB | 85.4 MB |
| Events in quadrant A | 2,978,740 | 603,576 |
| Events in quadrant B | 3,283,485 | 632,993 |
| Events in quadrant C | 5,652,809 | 504,631 |
| Events in quadrant D | 4,073,651 | 520,241 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 2 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13506 | 40 |
| B | 0 | 14524 | 36 |
| C | 0 | 21402 | 109 |
| D | 0 | 16554 | 54 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6440 | 28 | 0.434783% |
| B | 6442 | 120 | 1.862776% |
| C | 6433 | 720 | 11.192290% |
| D | 6438 | 63 | 0.978565% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7909 | 6734 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7909 | 6735 | 51 | 51 | 0.64% | 0.76% |  |
| C | 7909 | 6732 | 671 | 671 | 8.48% | 9.97% |  |
| D | 7909 | 6735 | 41 | 41 | 0.52% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 134046 | 774.06 | 698 | 681 | 172.3 |
| A | 13 | 248 | 65484 | 376.12 | 698 | 681 | 172.3 |
| A | 10 | 251 | 32402 | 184.11 | 698 | 681 | 172.3 |
| B | 5 | 185 | 107329 | 730.65 | 688 | 662 | 146.0 |
| B | 5 | 172 | 103871 | 706.96 | 688 | 662 | 146.0 |
| B | 0 | 157 | 81163 | 551.41 | 688 | 662 | 146.0 |
| C | 15 | 224 | 2607390 | 14890.34 | 637 | 630 | 175.1 |
| C | 6 | 223 | 242975 | 1384.32 | 637 | 630 | 175.1 |
| C | 12 | 252 | 79792 | 452.19 | 637 | 630 | 175.1 |
| D | 12 | 110 | 1027249 | 5405.03 | 663 | 632 | 189.9 |
| D | 8 | 240 | 175173 | 918.94 | 663 | 632 | 189.9 |
| D | 5 | 173 | 42711 | 221.54 | 663 | 632 | 189.9 |

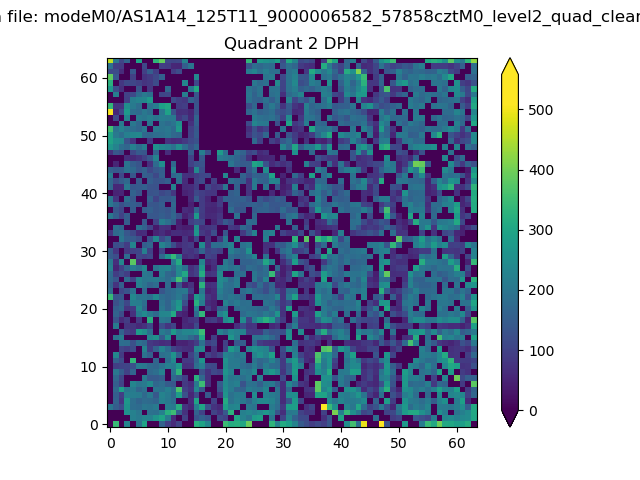

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

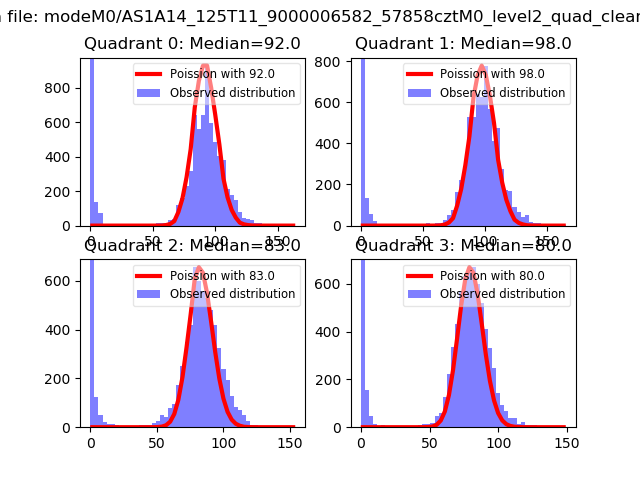

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

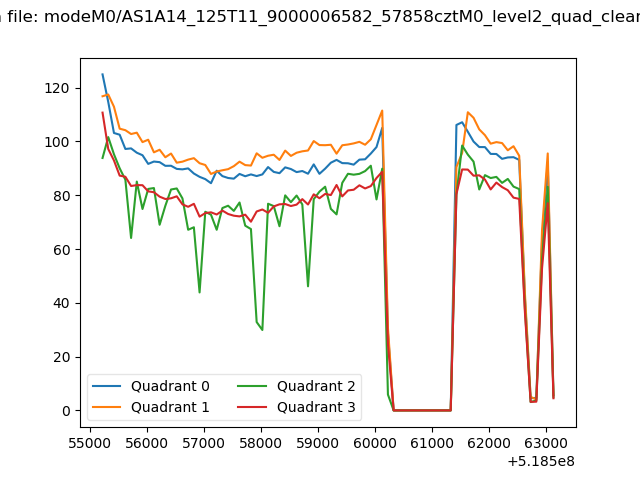

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

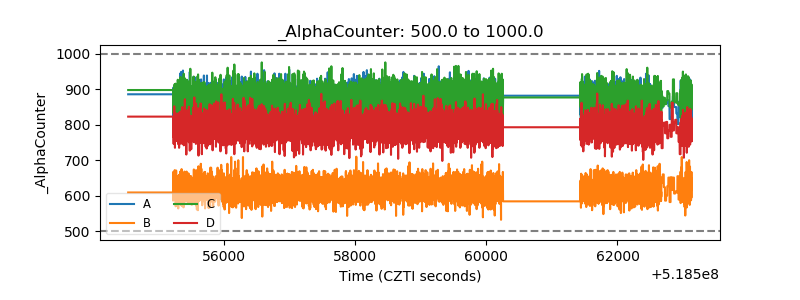

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

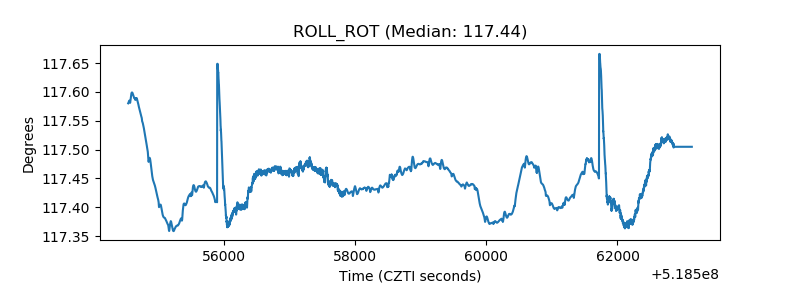

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
