| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57859cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57859cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,370,240 | 87,773,760 |
| Size | 405.7 MB | 83.7 MB |
| Events in quadrant A | 3,128,562 | 587,844 |
| Events in quadrant B | 3,226,402 | 619,260 |
| Events in quadrant C | 4,912,005 | 511,780 |
| Events in quadrant D | 3,986,164 | 496,386 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13708 | 2 |
| B | 0 | 14118 | 2 |
| C | 0 | 19026 | 2 |
| D | 0 | 16089 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6337 | 57 | 0.899479% |
| B | 6337 | 113 | 1.783178% |
| C | 6337 | 477 | 7.527221% |
| D | 6337 | 80 | 1.262427% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

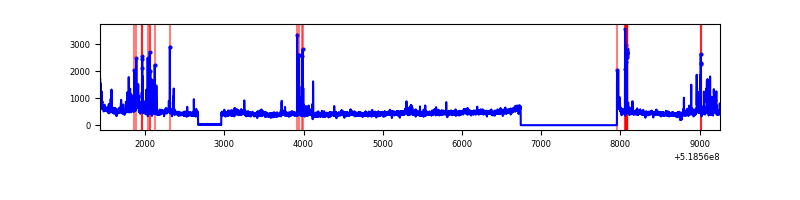

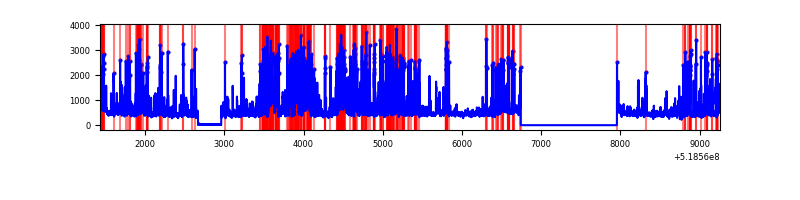

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7827 | 6613 | 33 | 33 | 0.42% | 0.50% |  |
| B | 7827 | 6613 | 43 | 43 | 0.55% | 0.65% |  |
| C | 7827 | 6612 | 428 | 428 | 5.47% | 6.47% |  |
| D | 7827 | 6613 | 59 | 59 | 0.75% | 0.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 201552 | 1199.0 | 679 | 663 | 167.5 |
| A | 10 | 251 | 145638 | 865.28 | 679 | 663 | 167.5 |
| A | 13 | 248 | 106197 | 629.87 | 679 | 663 | 167.5 |
| B | 0 | 63 | 128576 | 894.49 | 672 | 648 | 143.0 |
| B | 5 | 172 | 110251 | 766.36 | 672 | 648 | 143.0 |
| B | 0 | 157 | 76681 | 531.63 | 672 | 648 | 143.0 |
| C | 15 | 224 | 2237778 | 12687.48 | 639 | 634 | 176.3 |
| C | 6 | 223 | 56503 | 316.85 | 639 | 634 | 176.3 |
| C | 12 | 2 | 41044 | 229.17 | 639 | 634 | 176.3 |
| D | 12 | 110 | 924812 | 4997.64 | 648 | 619 | 184.9 |
| D | 2 | 153 | 221935 | 1196.78 | 648 | 619 | 184.9 |
| D | 3 | 224 | 51436 | 274.8 | 648 | 619 | 184.9 |

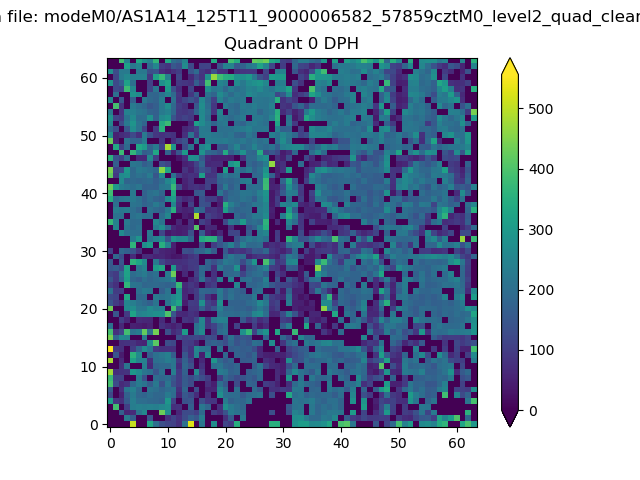

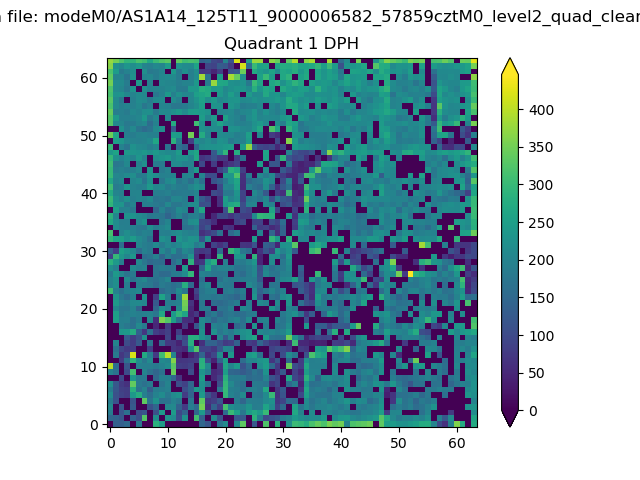

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

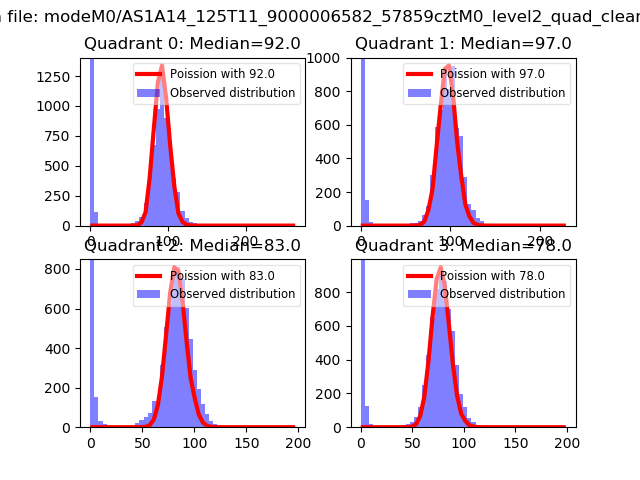

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

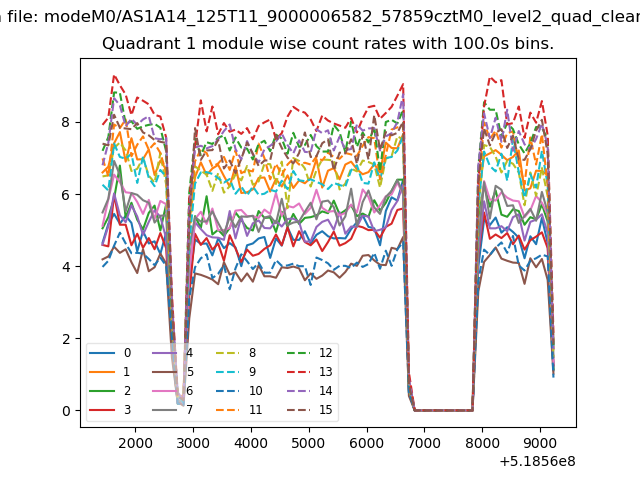

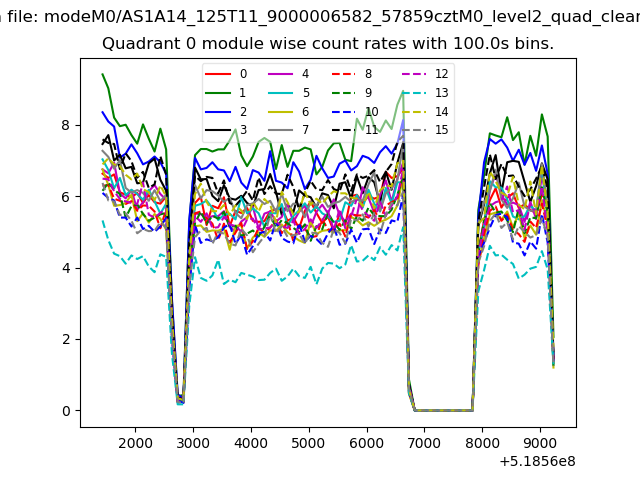

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

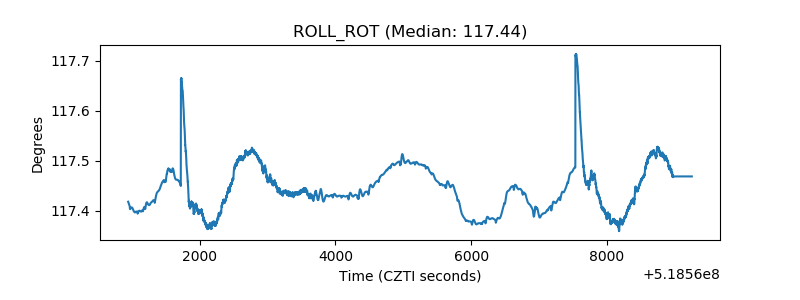

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
