| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57860cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57860cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,422,080 | 89,665,920 |
| Size | 474.4 MB | 85.5 MB |
| Events in quadrant A | 3,154,401 | 607,548 |
| Events in quadrant B | 3,130,364 | 637,550 |
| Events in quadrant C | 7,523,512 | 475,188 |
| Events in quadrant D | 4,081,651 | 525,863 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14372 | 0 |
| B | 0 | 14223 | 0 |
| C | 0 | 26980 | 0 |
| D | 0 | 16905 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6727 | 97 | 1.441950% |
| B | 6727 | 95 | 1.412219% |
| C | 6727 | 1500 | 22.298201% |
| D | 6727 | 139 | 2.066300% |

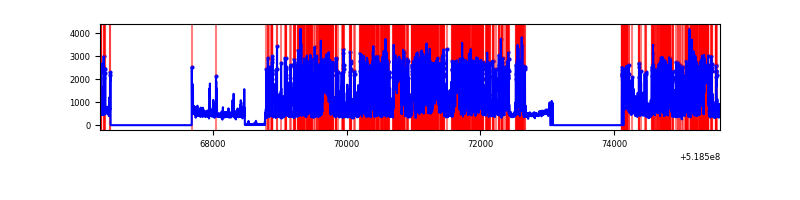

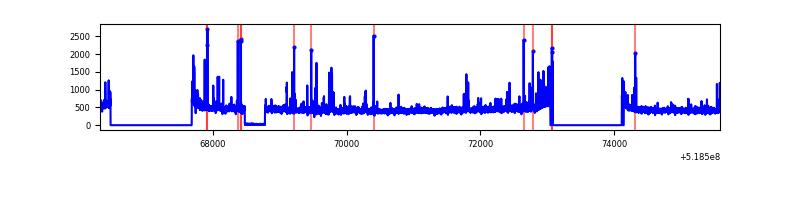

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9277 | 7004 | 37 | 37 | 0.40% | 0.53% |  |
| B | 9277 | 7004 | 13 | 13 | 0.14% | 0.19% |  |
| C | 9277 | 7004 | 1376 | 1376 | 14.83% | 19.65% |  |
| D | 9276 | 7005 | 94 | 94 | 1.01% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 139524 | 789.89 | 719 | 701 | 175.8 |
| A | 13 | 248 | 99934 | 564.63 | 719 | 701 | 175.8 |
| A | 10 | 251 | 64742 | 364.39 | 719 | 701 | 175.8 |
| B | 7 | 252 | 81290 | 538.91 | 715 | 691 | 149.6 |
| B | 0 | 63 | 64652 | 427.67 | 715 | 691 | 149.6 |
| B | 10 | 247 | 31751 | 207.68 | 715 | 691 | 149.6 |
| C | 15 | 224 | 4907209 | 28794.01 | 627 | 623 | 170.4 |
| C | 15 | 208 | 41446 | 239.57 | 627 | 623 | 170.4 |
| C | 12 | 252 | 17804 | 100.83 | 627 | 623 | 170.4 |
| D | 12 | 110 | 415071 | 2138.31 | 688 | 658 | 193.8 |
| D | 2 | 153 | 357166 | 1839.53 | 688 | 658 | 193.8 |
| D | 3 | 224 | 302175 | 1555.78 | 688 | 658 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

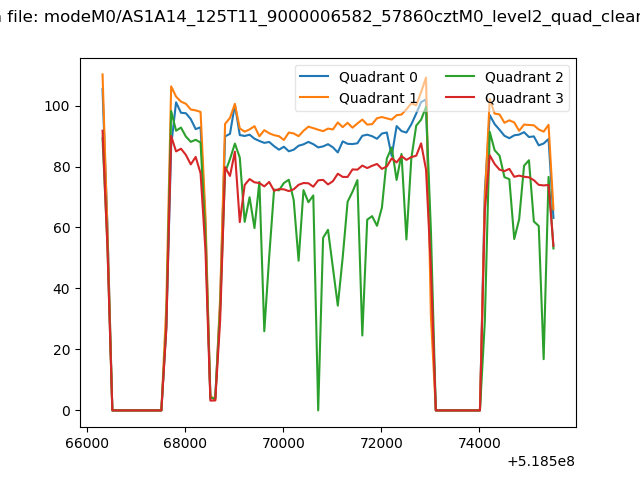

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

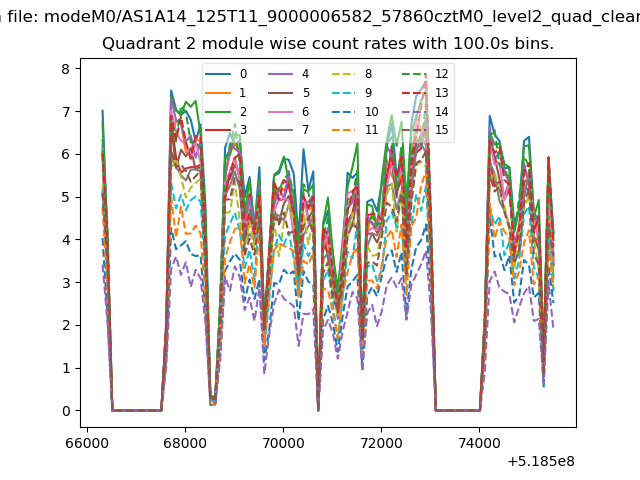

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

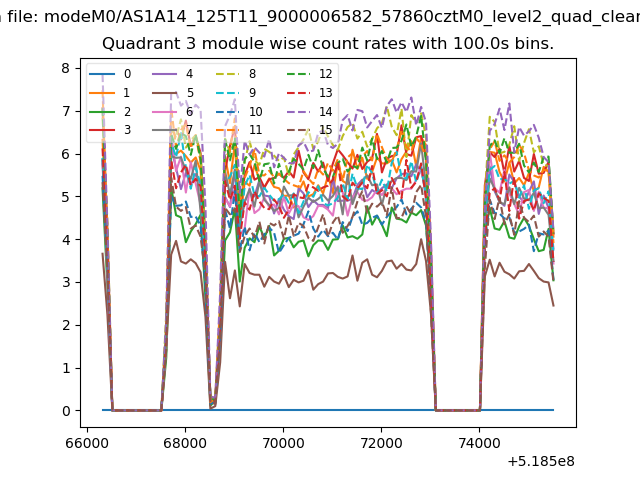

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
