| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57861cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57861cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,864,000 | 90,984,960 |
| Size | 472.9 MB | 86.8 MB |
| Events in quadrant A | 3,127,272 | 599,606 |
| Events in quadrant B | 3,244,941 | 638,076 |
| Events in quadrant C | 6,840,332 | 503,139 |
| Events in quadrant D | 4,585,185 | 514,581 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14781 | 2 |
| B | 0 | 15078 | 2 |
| C | 0 | 25304 | 2 |
| D | 0 | 18846 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7168 | 86 | 1.199777% |
| B | 7168 | 143 | 1.994978% |
| C | 7169 | 1043 | 14.548752% |
| D | 7168 | 296 | 4.129464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

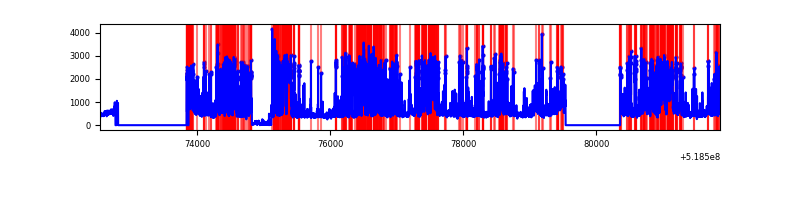

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9323 | 7444 | 6 | 6 | 0.06% | 0.08% |  |
| B | 9323 | 7444 | 15 | 15 | 0.16% | 0.20% |  |
| C | 9324 | 7444 | 909 | 909 | 9.75% | 12.21% |  |
| D | 9323 | 7446 | 196 | 196 | 2.10% | 2.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 128 | 63356 | 331.86 | 767 | 747 | 188.7 |
| A | 10 | 251 | 35640 | 184.95 | 767 | 747 | 188.7 |
| A | 7 | 64 | 30399 | 157.17 | 767 | 747 | 188.7 |
| B | 6 | 51 | 41578 | 254.19 | 757 | 727 | 160.7 |
| B | 10 | 247 | 38901 | 237.53 | 757 | 727 | 160.7 |
| B | 7 | 252 | 29468 | 178.84 | 757 | 727 | 160.7 |
| C | 15 | 224 | 3566320 | 18537.29 | 704 | 697 | 192.3 |
| C | 12 | 2 | 180245 | 933.45 | 704 | 697 | 192.3 |
| C | 9 | 38 | 163831 | 848.12 | 704 | 697 | 192.3 |
| D | 12 | 110 | 736539 | 3600.34 | 730 | 695 | 204.4 |
| D | 3 | 224 | 516779 | 2525.1 | 730 | 695 | 204.4 |
| D | 2 | 153 | 111418 | 541.75 | 730 | 695 | 204.4 |

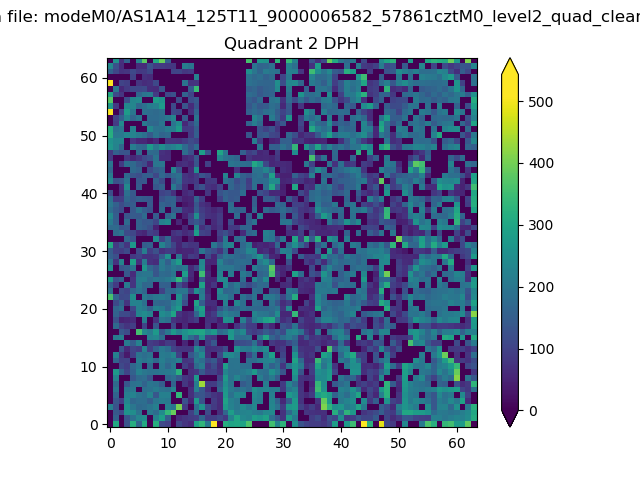

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

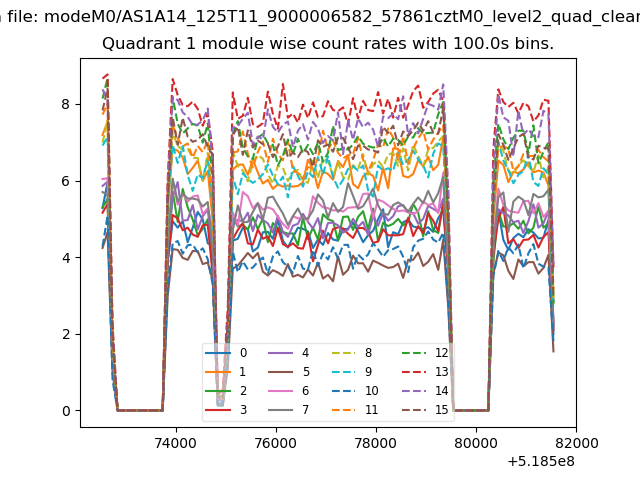

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

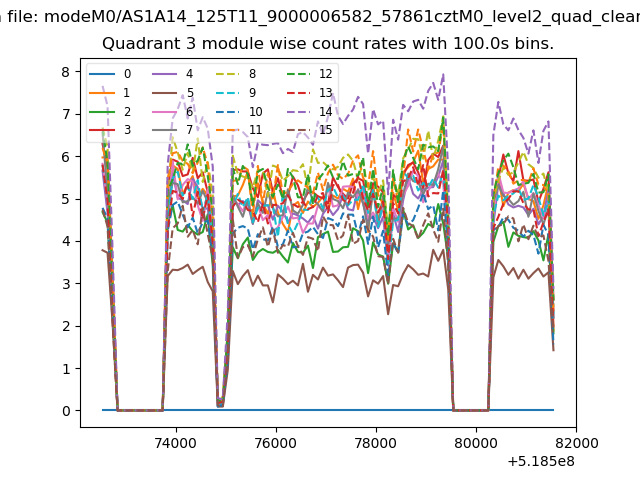

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

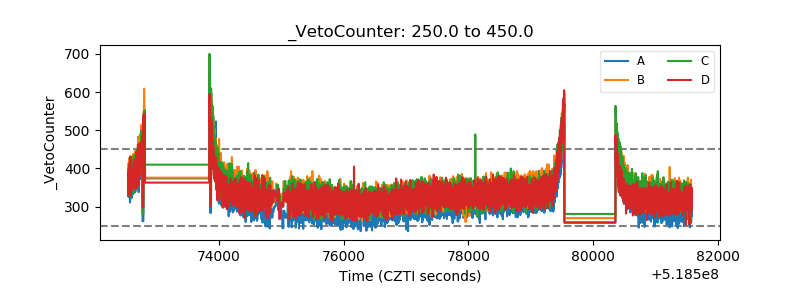

| Veto HV Monitor |  |
| Veto LLD |  |

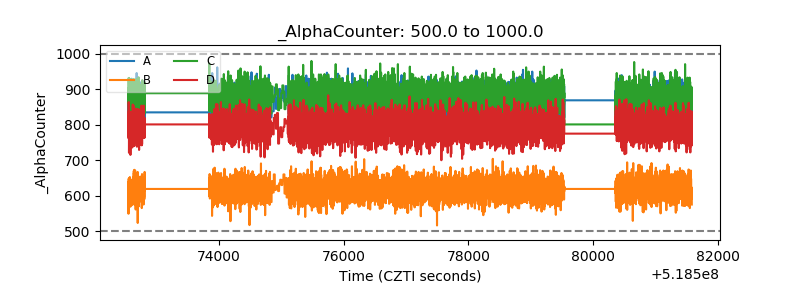

| Alpha Counter |  |
| _CPM_Rate |  |

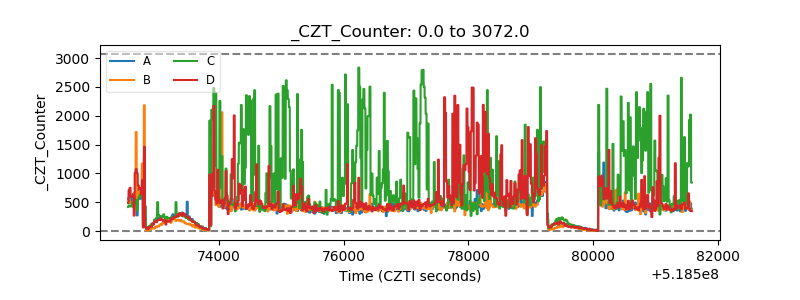

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

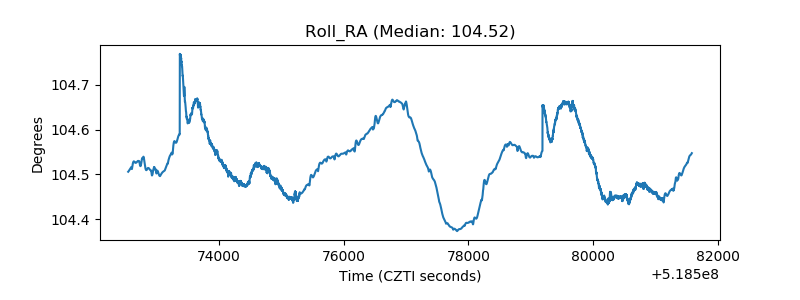

| _Roll_RA |  |
| Veto Counter |  |
