| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57862cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57862cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,204,480 | 110,528,640 |
| Size | 540.9 MB | 105.4 MB |
| Events in quadrant A | 3,747,621 | 745,226 |
| Events in quadrant B | 3,783,882 | 780,576 |
| Events in quadrant C | 7,749,401 | 614,514 |
| Events in quadrant D | 5,097,184 | 652,983 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17053 | 3 |
| B | 0 | 17220 | 3 |
| C | 0 | 28614 | 3 |
| D | 0 | 20653 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7952 | 217 | 2.728873% |
| B | 7953 | 365 | 4.589463% |
| C | 7953 | 1335 | 16.786118% |
| D | 7953 | 312 | 3.923048% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8927 | 7953 | 10 | 10 | 0.11% | 0.13% |  |
| B | 8928 | 7954 | 39 | 39 | 0.44% | 0.49% |  |
| C | 8928 | 7954 | 987 | 987 | 11.06% | 12.41% |  |
| D | 8928 | 7954 | 87 | 87 | 0.97% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 233913 | 1090.88 | 872 | 848 | 213.6 |
| A | 7 | 64 | 87039 | 403.42 | 872 | 848 | 213.6 |
| A | 3 | 128 | 31075 | 141.48 | 872 | 848 | 213.6 |
| B | 5 | 172 | 69669 | 380.8 | 854 | 821 | 180.8 |
| B | 7 | 252 | 45470 | 246.95 | 854 | 821 | 180.8 |
| B | 6 | 51 | 45249 | 245.73 | 854 | 821 | 180.8 |
| C | 15 | 224 | 2192853 | 10115.03 | 803 | 794 | 216.7 |
| C | 9 | 38 | 1805522 | 8327.73 | 803 | 794 | 216.7 |
| C | 12 | 2 | 176952 | 812.86 | 803 | 794 | 216.7 |
| D | 12 | 110 | 1103206 | 4733.32 | 836 | 797 | 232.9 |
| D | 3 | 224 | 304711 | 1304.89 | 836 | 797 | 232.9 |
| D | 3 | 12 | 66968 | 284.11 | 836 | 797 | 232.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

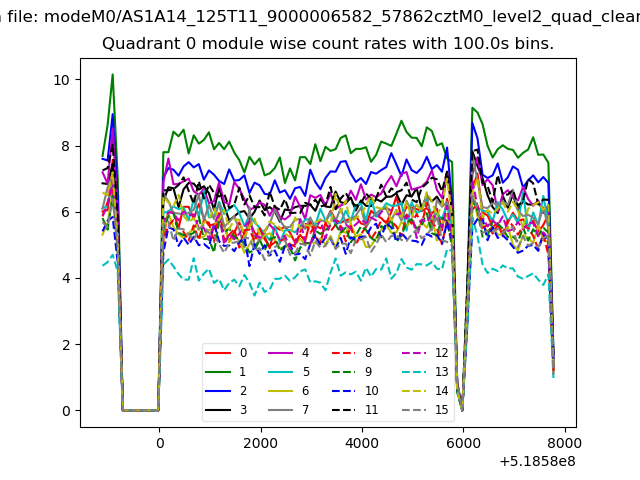

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

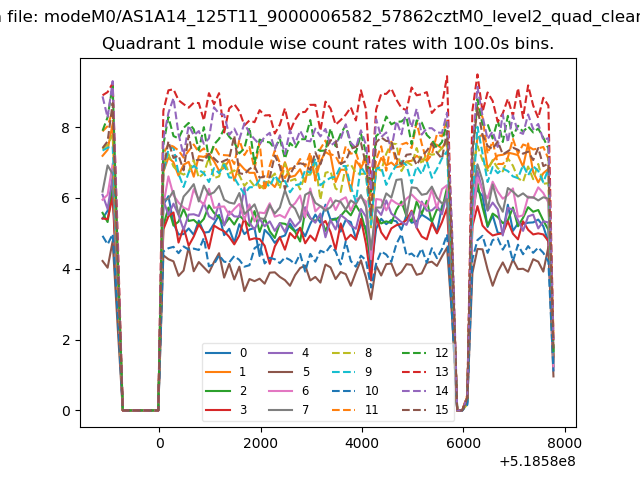

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

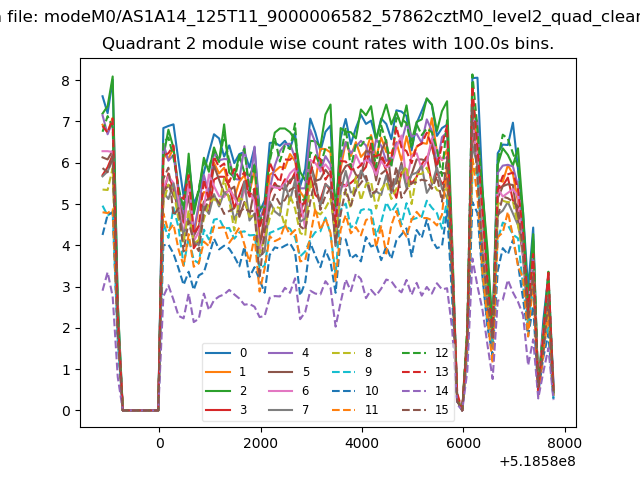

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

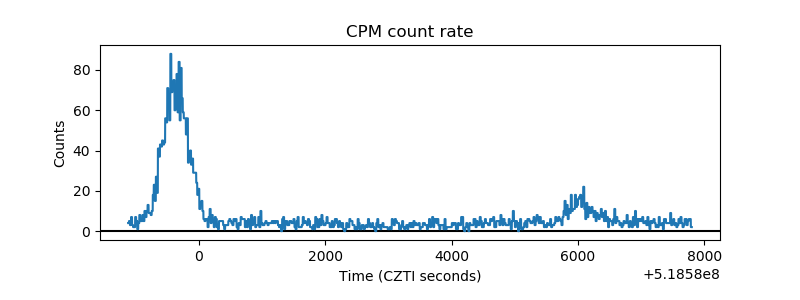

| _CPM_Rate |  |
| CZT Counter |  |

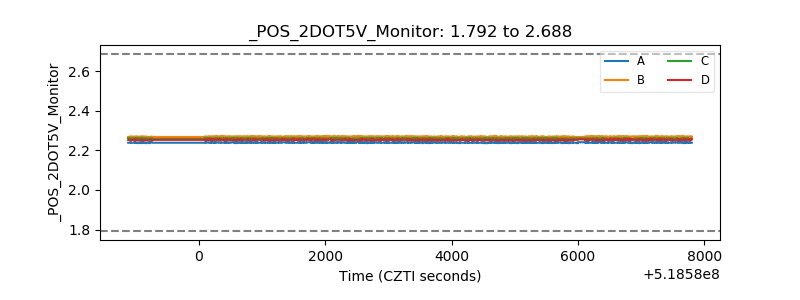

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

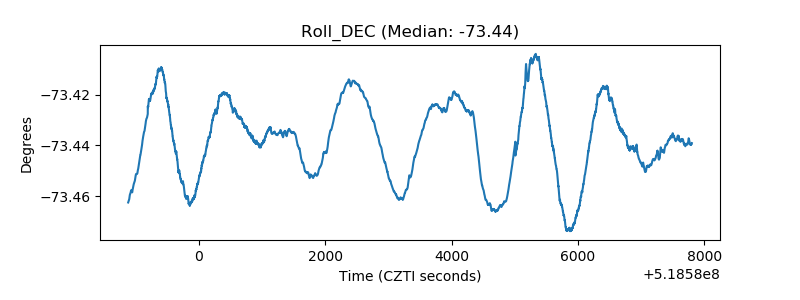

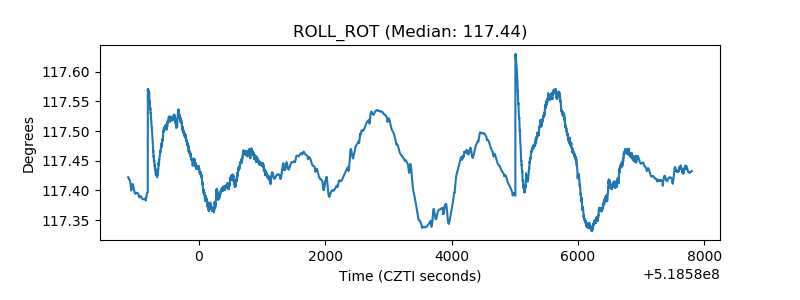

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

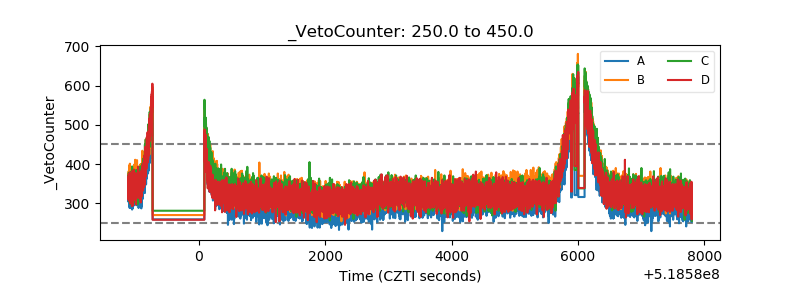

| Veto Counter |  |
