| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_125T11_9000006582_57863cztM0_level2.fits | modeM0/AS1A14_125T11_9000006582_57863cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,691,520 | 112,440,960 |
| Size | 691.1 MB | 107.2 MB |
| Events in quadrant A | 3,811,505 | 787,287 |
| Events in quadrant B | 4,263,465 | 829,980 |
| Events in quadrant C | 13,082,366 | 506,585 |
| Events in quadrant D | 5,015,017 | 695,373 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17667 | 2 |
| B | 0 | 18907 | 2 |
| C | 0 | 44712 | 3 |
| D | 0 | 20536 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8419 | 173 | 2.054876% |
| B | 8420 | 350 | 4.156770% |
| C | 8419 | 3288 | 39.054520% |
| D | 8419 | 180 | 2.138021% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8574 | 8420 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8575 | 8421 | 64 | 64 | 0.75% | 0.76% |  |
| C | 8574 | 8420 | 2765 | 2765 | 32.25% | 32.84% |  |
| D | 8574 | 8420 | 10 | 10 | 0.12% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 130705 | 576.8 | 920 | 898 | 225.0 |
| A | 10 | 251 | 80424 | 353.37 | 920 | 898 | 225.0 |
| A | 3 | 128 | 23222 | 99.2 | 920 | 898 | 225.0 |
| B | 2 | 249 | 228676 | 1177.84 | 910 | 875 | 193.4 |
| B | 10 | 247 | 120744 | 619.78 | 910 | 875 | 193.4 |
| B | 10 | 246 | 112705 | 578.22 | 910 | 875 | 193.4 |
| C | 9 | 38 | 6531407 | 30640.8 | 793 | 784 | 213.1 |
| C | 15 | 224 | 3136834 | 14713.92 | 793 | 784 | 213.1 |
| C | 12 | 252 | 70832 | 328.66 | 793 | 784 | 213.1 |
| D | 12 | 110 | 1035974 | 4168.29 | 891 | 850 | 248.3 |
| D | 13 | 66 | 157632 | 631.34 | 891 | 850 | 248.3 |
| D | 3 | 12 | 108498 | 433.48 | 891 | 850 | 248.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

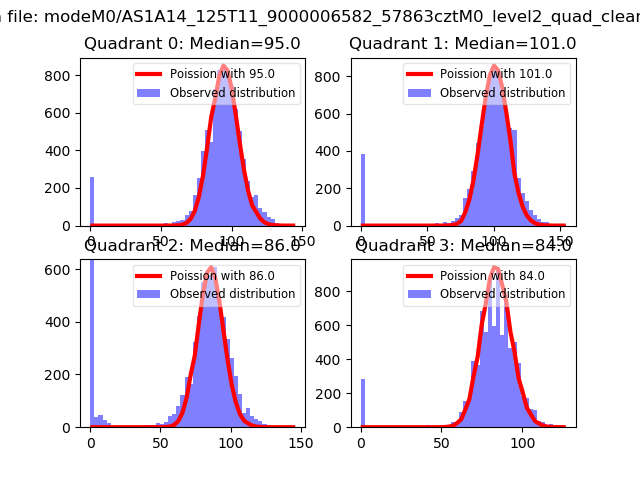

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

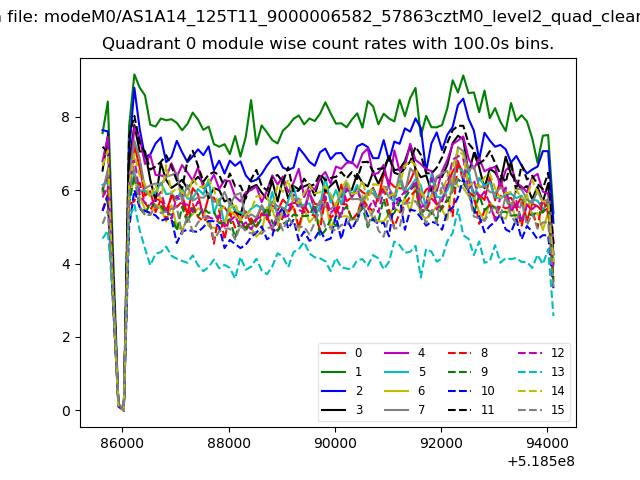

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

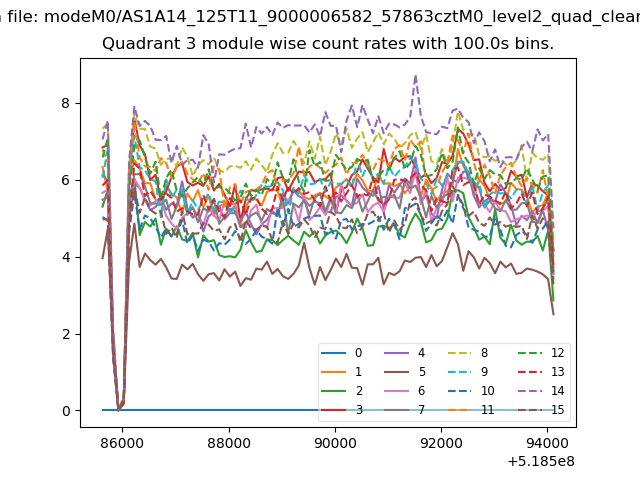

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

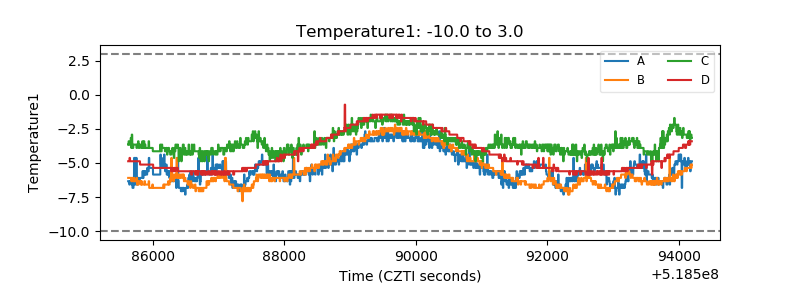

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

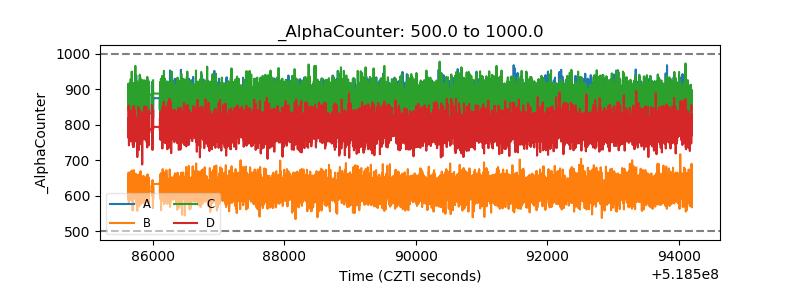

| Alpha Counter |  |
| _CPM_Rate |  |

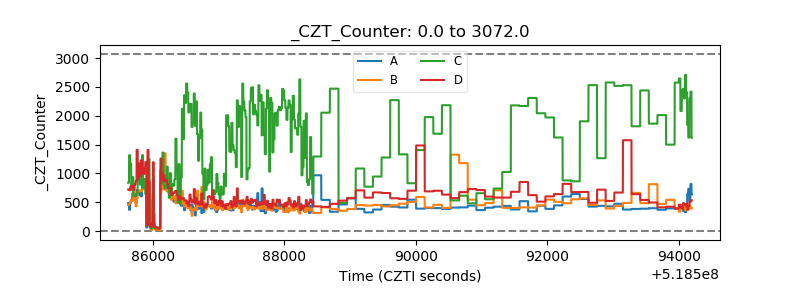

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

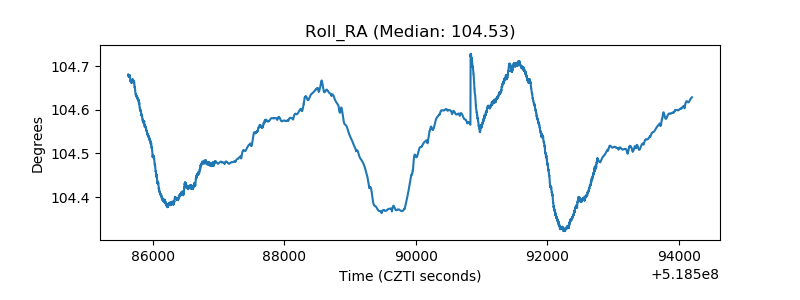

| _Roll_RA |  |
| Veto Counter |  |
